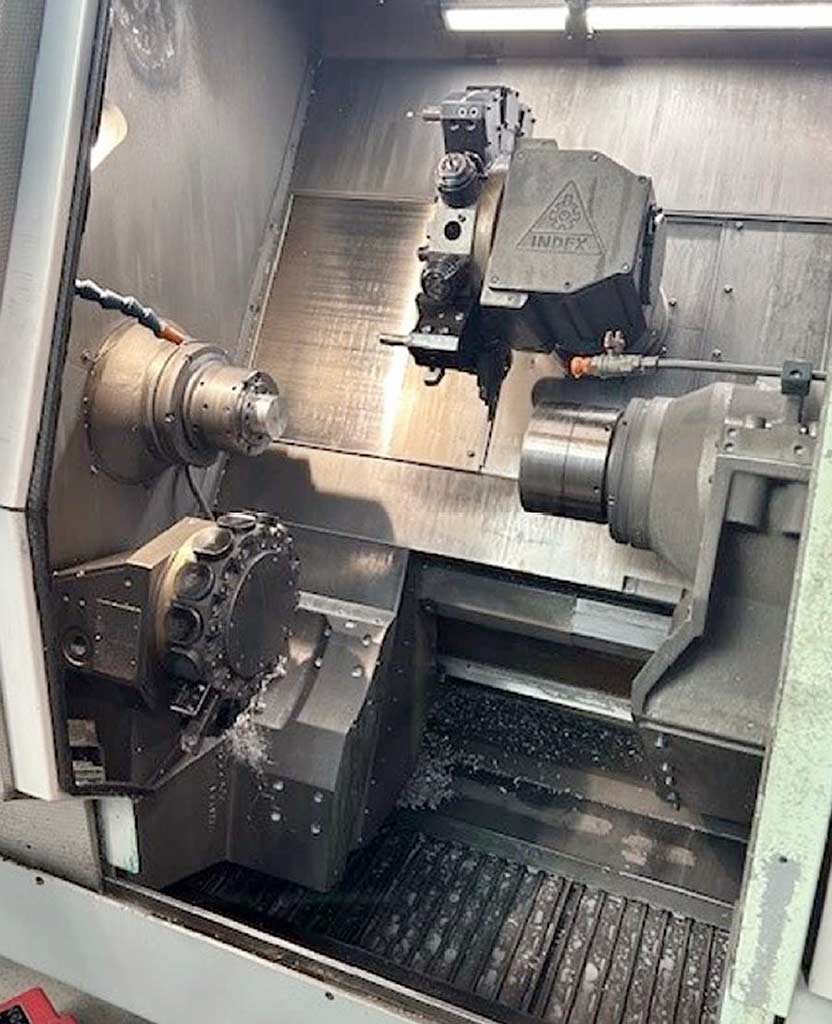

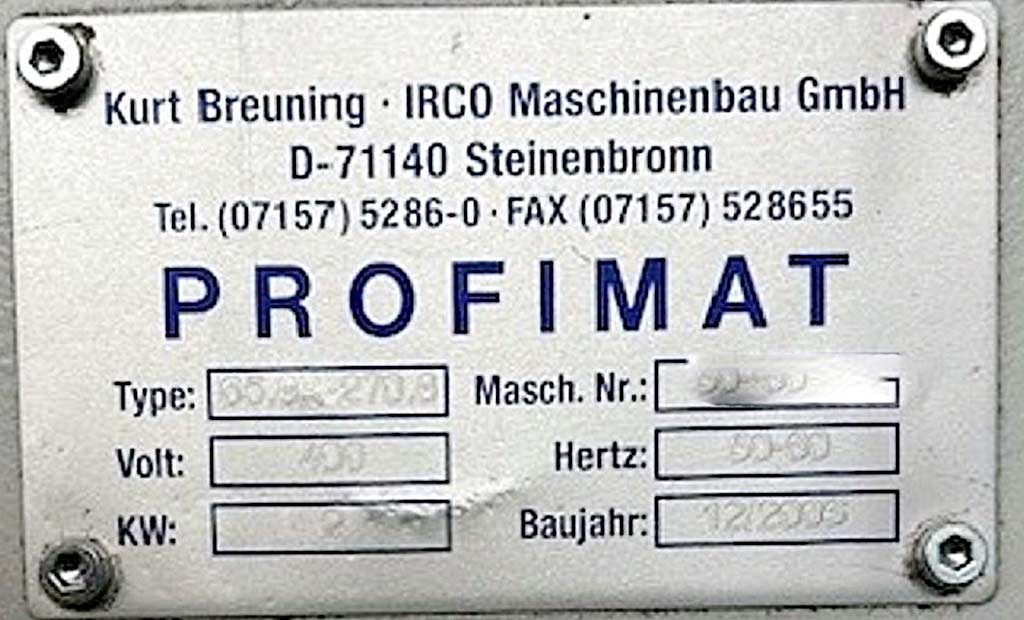

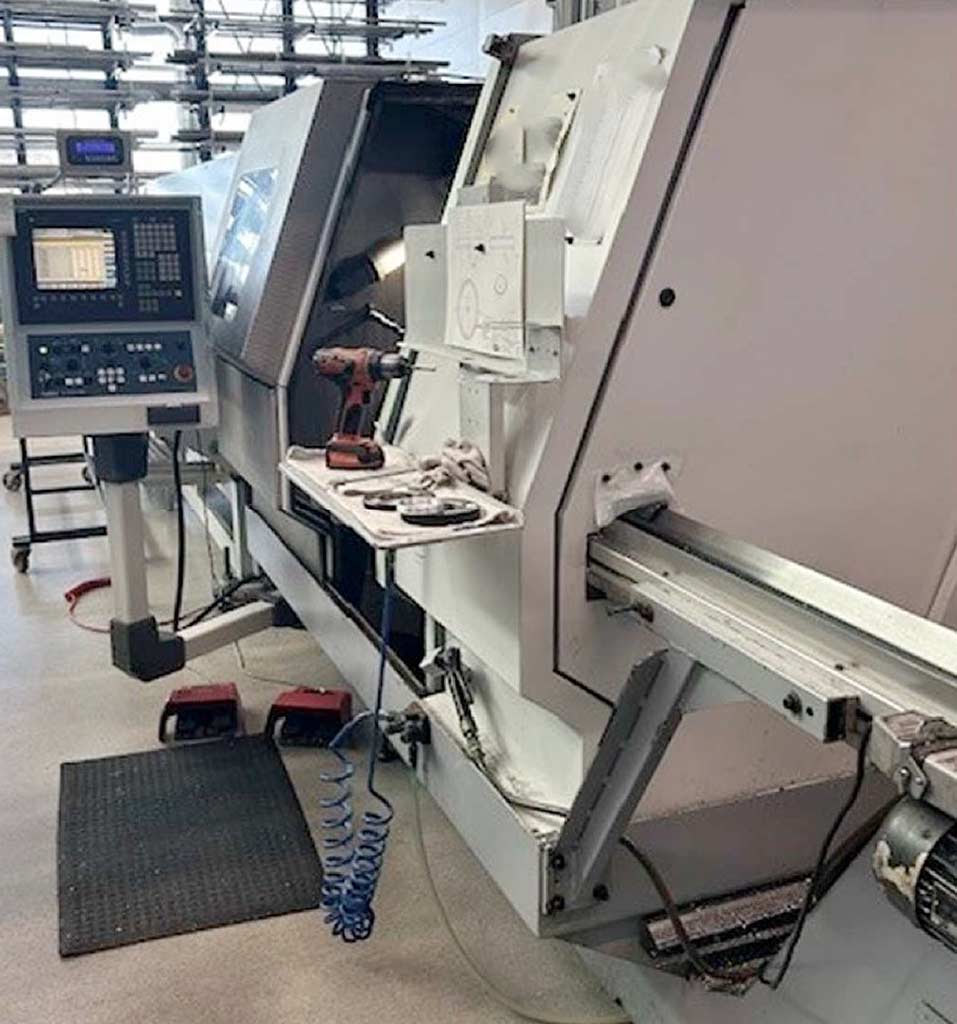

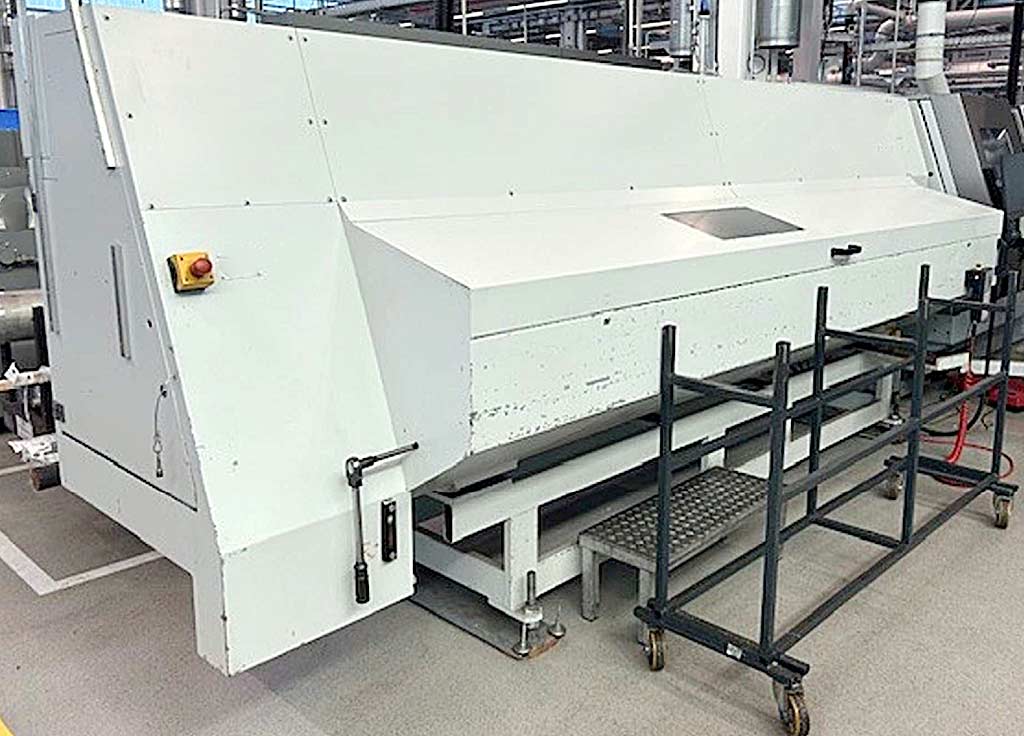

| Description Turning diameter: 220mm, main spindle bore: 65mm, counter spindle bore: 60mm, tool positions: 12, Y-axis travel: 120mm, gripper diameter range: 4mm-45mm/40mm-65mm, coolant pump pressure: 8bar, high-pressure pump output: 80bar, chip conveyor discharge height: 1250mm. Overall system dimensions X/Y/Z: approx. 9150mm/3000mm/2000mm, weight: approx. 9500kg, control system: Siemens 840D, operating hours: approx. 115000h. Including multi-channel loading magazine Breuning/IRCO PROFImat 65.8-PR270/8, portal unloading unit, chip conveyor, coolant system, high-pressure pump and spare parts. Documentation available. On-site inspection is possible. Expected to be available from May 2026. |
|
| Make | Index |
|---|---|
| Model | G 200 Ratioline |
| Year of manufacture | 2006 |
| Price | On application |
| Offer No | INNO30711 |
