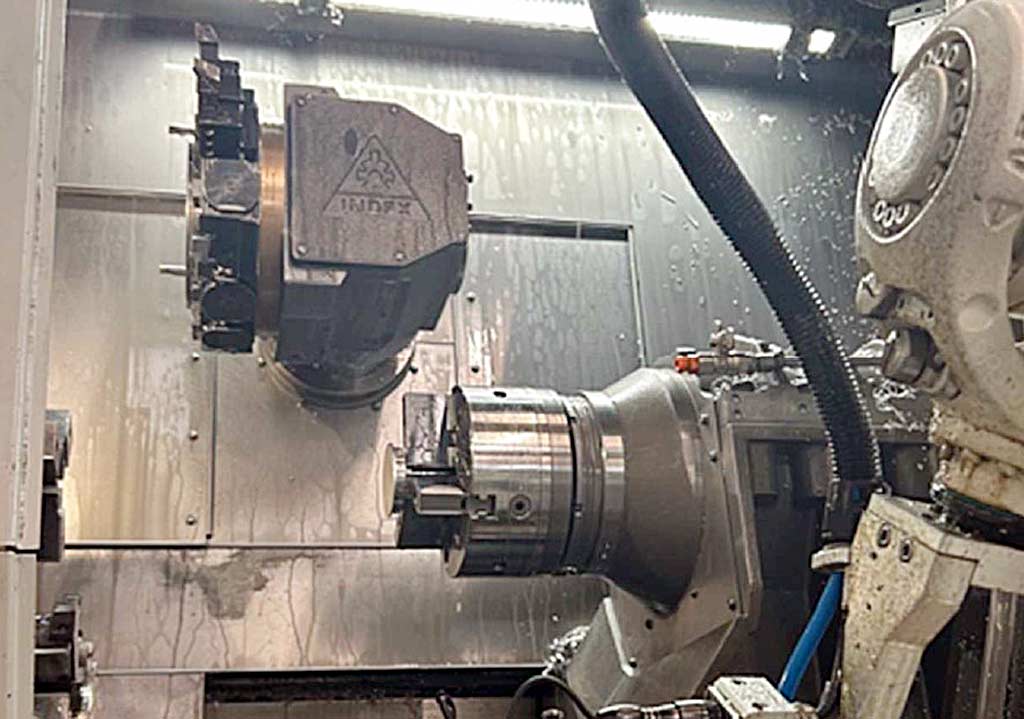

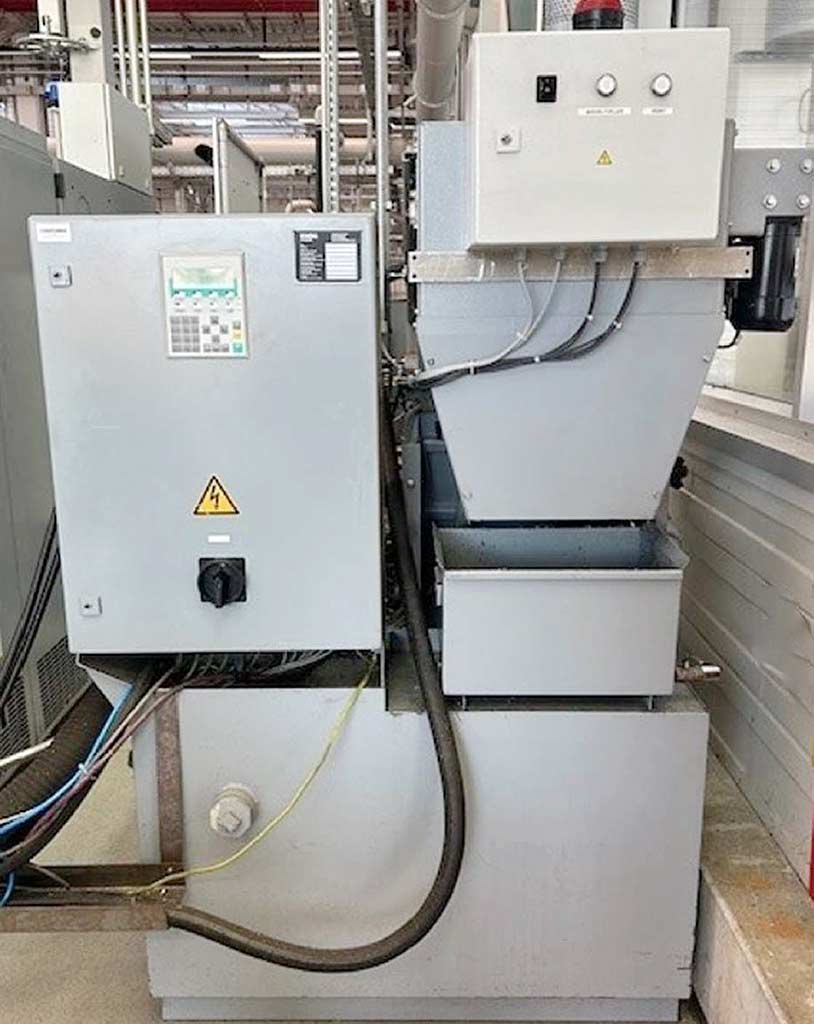

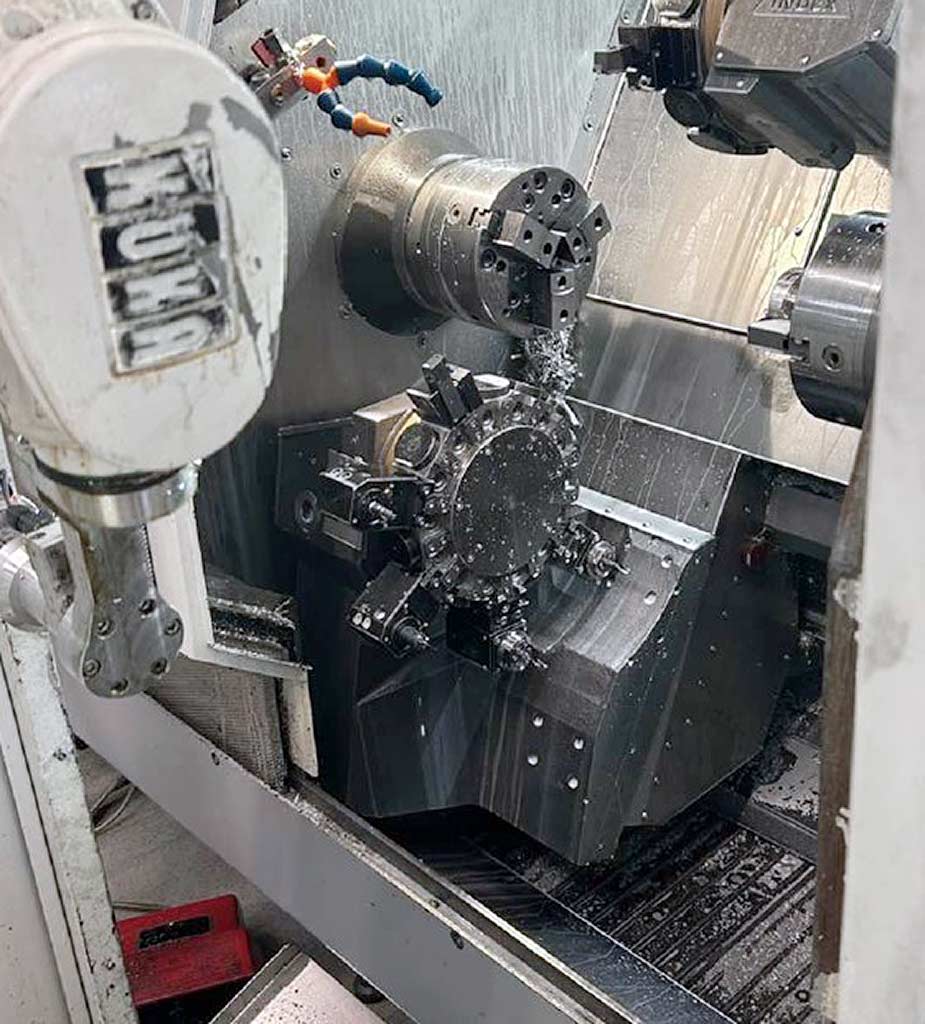

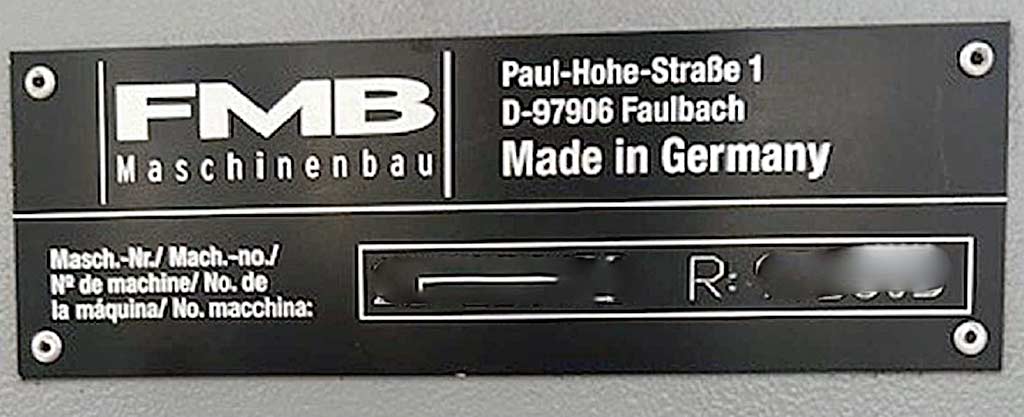

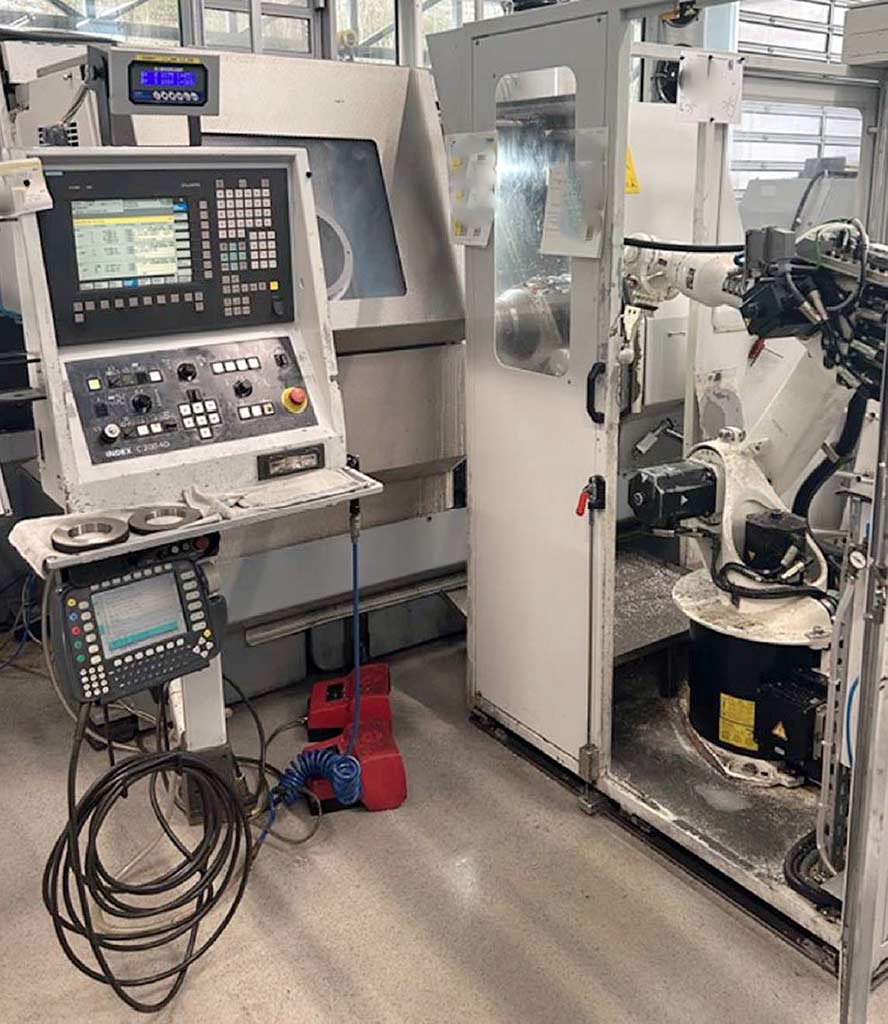

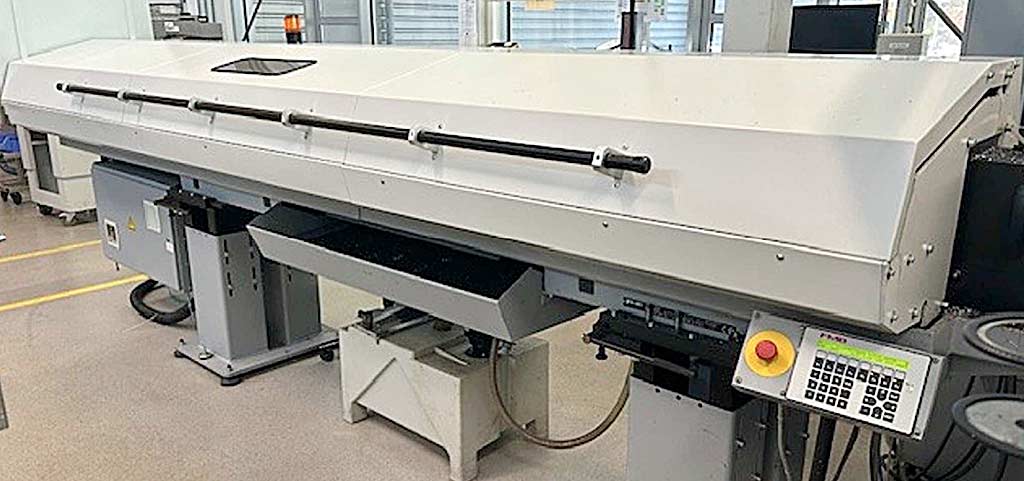

| Description A fully autonomous CNC dual-spindle turning machine Index is available. Turning diameter: 220mm, main spindle bar capacity: 65mm, main spindle power chuck diameter: 210mm, sub-spindle bar capacity: 60mm, sub-spindle power chuck diameter: 210mm, tool stations: 12, Y-axis travel: 120mm, gripper diameter range: 4mm-45mm/40mm-65mm, coolant pump pressure: 8bar, high-pressure pump capacity: 80bar, chip conveyor discharge height: 1250mm. Overall system dimensions X/Y/Z: approx. 9150mm/4350mm/2000mm, weight: approx. 10500kg, operating hours: approx. 92000h. Including bar loader FMB turbo 8-80 XT/3200A, automatic loading and unloading system alphaMAX 6-axis, chip conveyor, coolant system, high-pressure pump and spare parts. Operation with the loading and unloading system is designed for disc diameters from 80mm to 220mm. This is a fully automated system without operator. Documentation available. On-site inspection is possible. Expected to be available from June 2026. |
|
| Make | Index |
|---|---|
| Model | G 200 Ratioline |
| Year of manufacture | 2003 |
| Price | On application |
| Offer No | INNO30710 |
