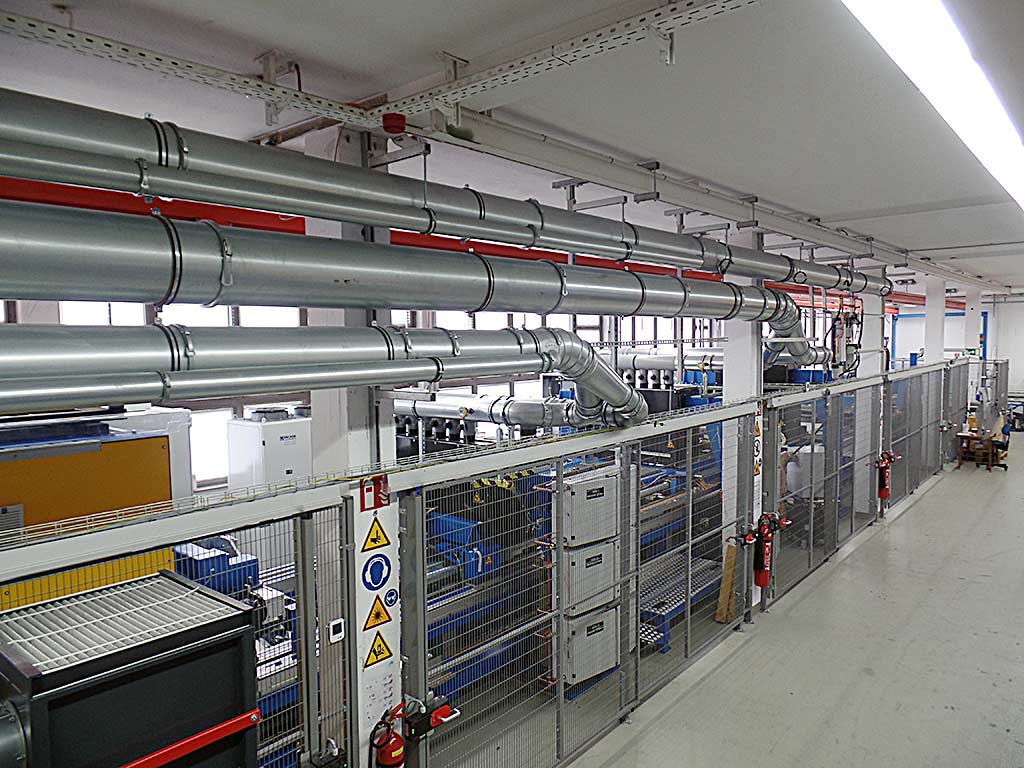

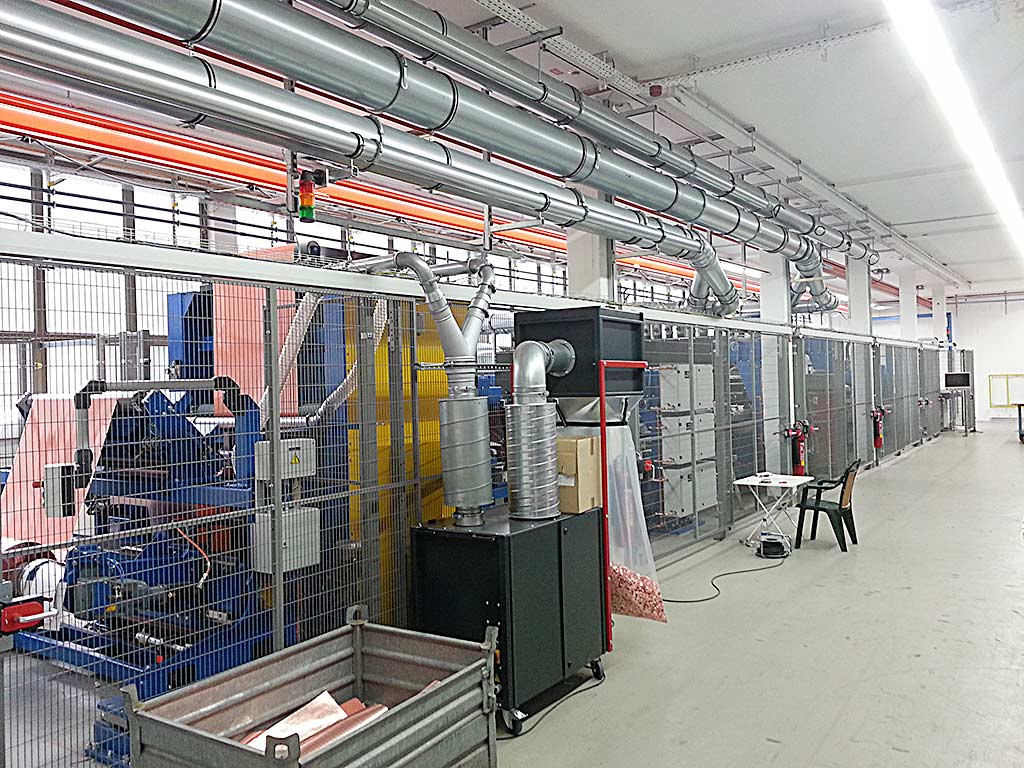

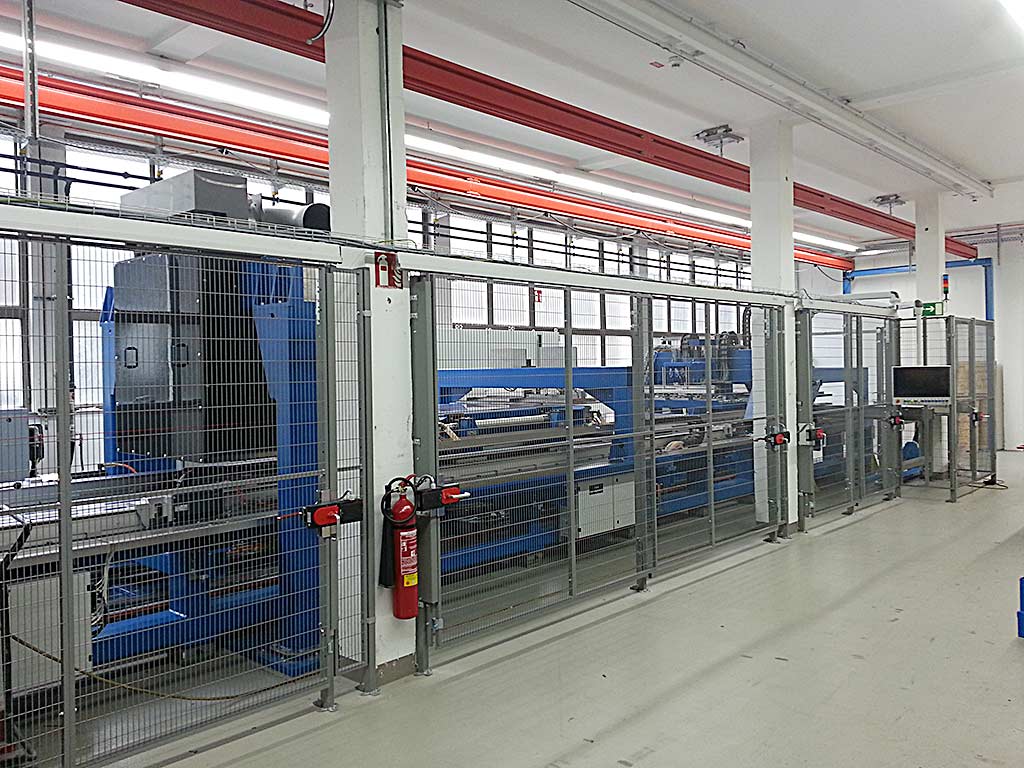

| Description A complete laser processing and marking system SIC-Marking is available. Stations: 3, table type: vacuum clamping table, processing area per station X/Y: 1000mm/1600mm, laser wavelength: 10600nm/1064nm, processes: evaporation/cleaning/structuring/surface processing, overall system dimensions X/Y/Z: approx. 25000mm/3000mm/3000mm, operating hours: approx. 2000h. Station 1: laser type: Synrad CO2 laser, number of lasers: 6, laser power: 100W, pulse frequency range: 0kHz-100kHz, power density: 250kW/cm², processed materials: polyamide/PVB/PET, processes: melting/evaporation. Station 2: laser type: IPG fiber laser, number of lasers: 6, laser power: 250W, pulse frequency range: 20kHz-500kHz, power density: 250MW/cm², processed materials: copper/aluminum/tin/lead/iron, processes: structuring/melting/evaporation. Station 3: laser type: IPG fiber laser, number of lasers: 3, laser power: 300W, pulse frequency range: 2kHz-200kHz, power density: 3MW/cm², processed materials: copper/aluminum/tin/lead/iron, processes: surface processing. The coating of the F-Theta lenses at station 2 is slightly deformed. Documentation available. An on-site inspection is possible. |
|

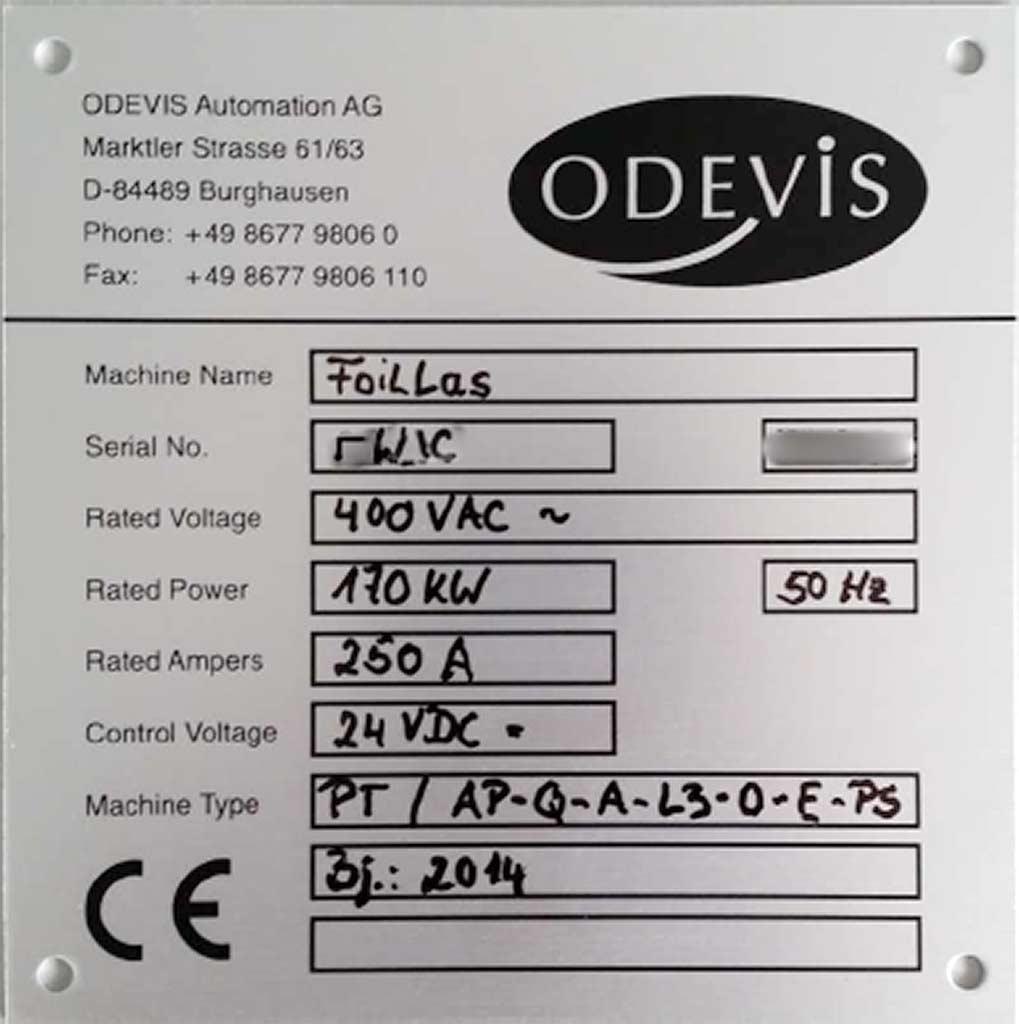

| Make | Odevis Automation |
|---|---|
| Model | unknown |
| Year of manufacture | 2014 |
| Price | On application |
| Offer No | INNO30707 |
