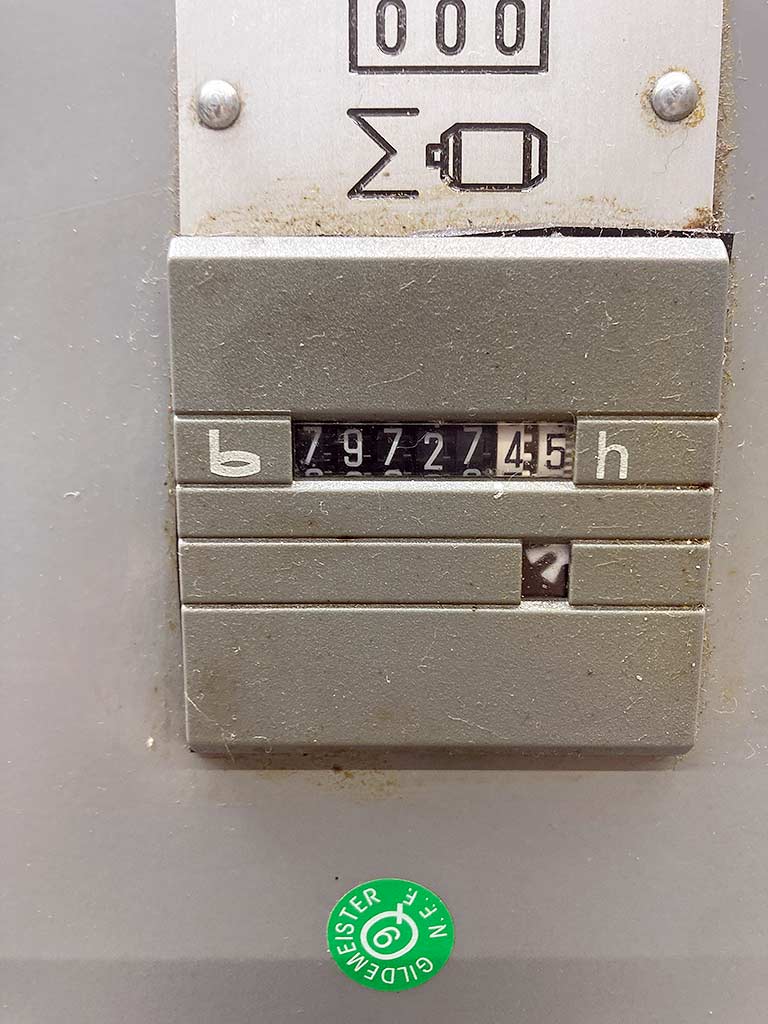

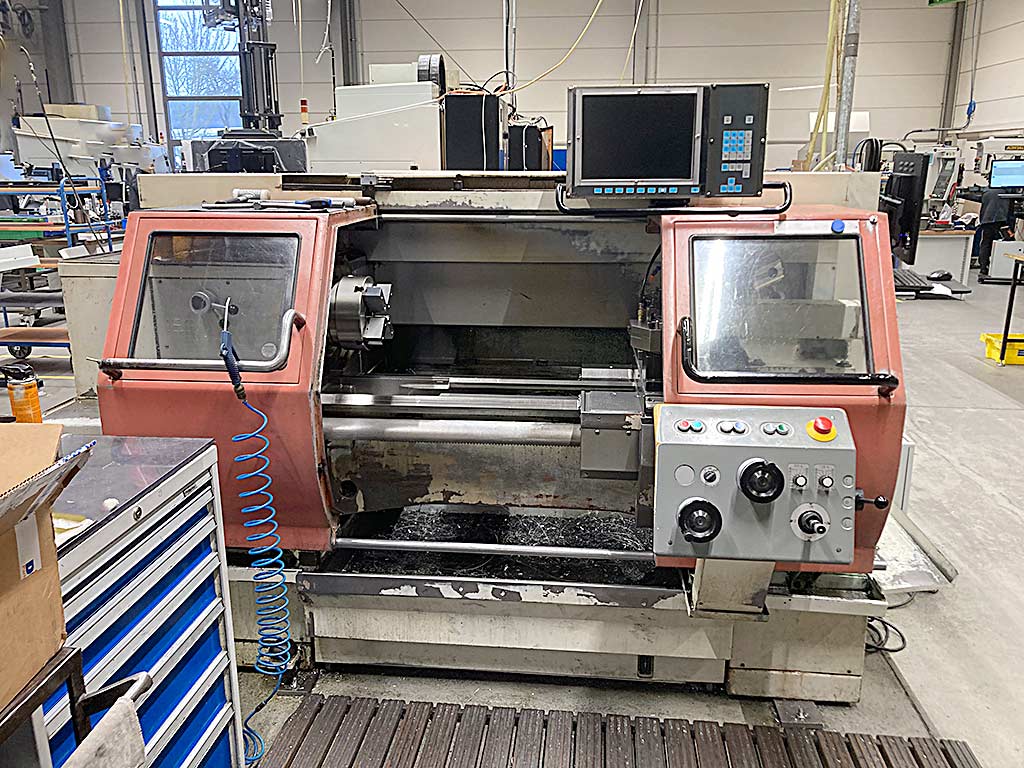

| Description A cycle-controlled CNC lathe Gildemeister is available. Center distance: 1500mm, max. turning length: 1500mm, swing diameter over bed/cross slide: 500mm/290mm, speed: 2800rpm, spindle bore: 70mm, spindle torque: 1050Nm, travel X/Z: 260mm/1600mm, rapid traverse X/Z: 6m/8m/min, feed rate: 5m/min, feed force: 5kN, tailstock quill stroke: 180mm, tailstock quill diameter: 80mm. Machine dimensions X/Y/Z: approx. 3200mm/1800mm/1900mm, weight: approx. 3100kg, operating hours: 79727h. Documentation available. On-site inspection is possible. |
|
| Make | Gildemeister |
|---|---|
| Model | NEF plus 500 |
| Year of manufacture | 1996 |
| Price | On application |
| Offer No | INNO30604 |
