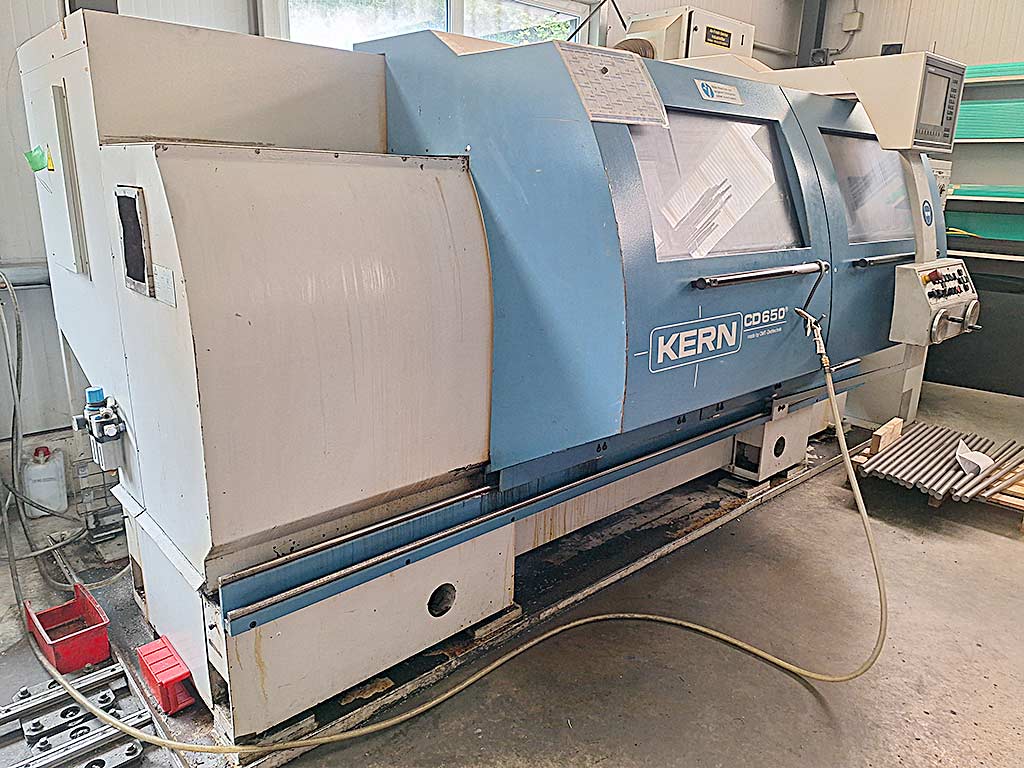

| Description A horizontal bed cycle lathe DMT with extensive accessories is available. Turning diameter over bed/cross slide: 650mm/400mm, max. turning length: 1500mm, travel X/Z: 440mm/1500mm, speed: 2000rpm, spindle bore: 106mm, spindle bearing diameter: 150mm, rapid traverse X/Z: 5m/10m/min, tailstock quill diameter: 100mm, tailstock quill stroke: 200mm, tailstock taper: MT5. Machine dimensions X/Y/Z: approx. 3500mm/2000mm/2300mm, weight: approx. 5000kg. Documentation available. On-site inspection is possible. |
|

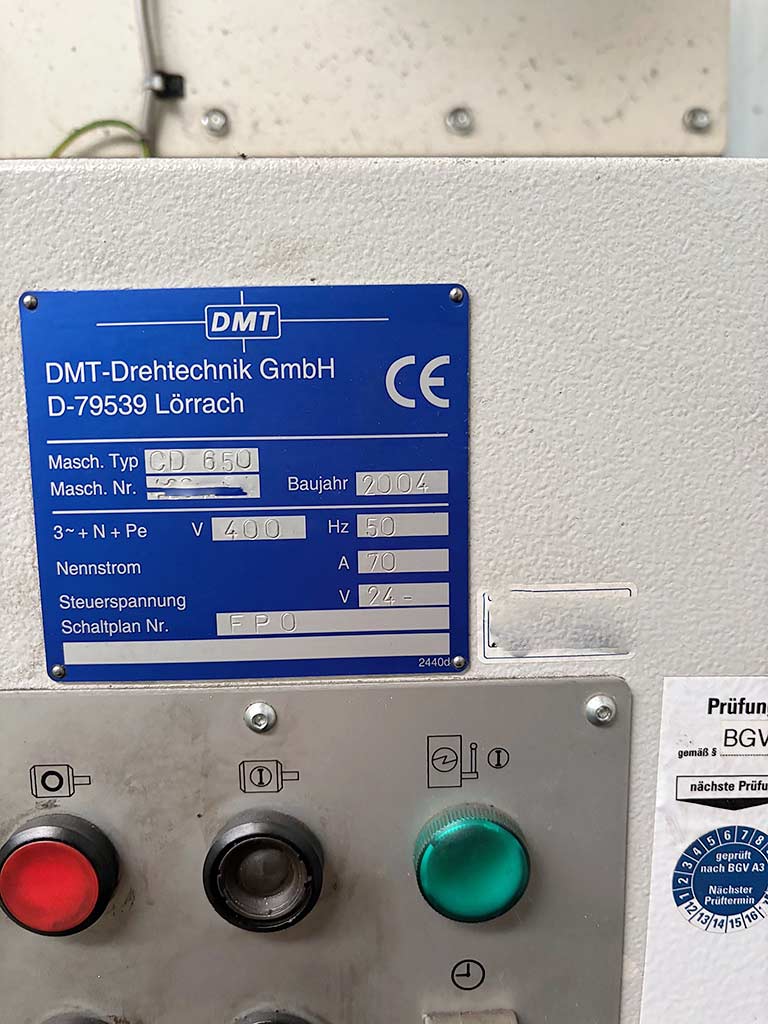

| Make | Dmt |
|---|---|
| Model | CD 650/1500 |
| Year of manufacture | 2004 |
| Price | On application |
| Offer No | INNO30603 |
