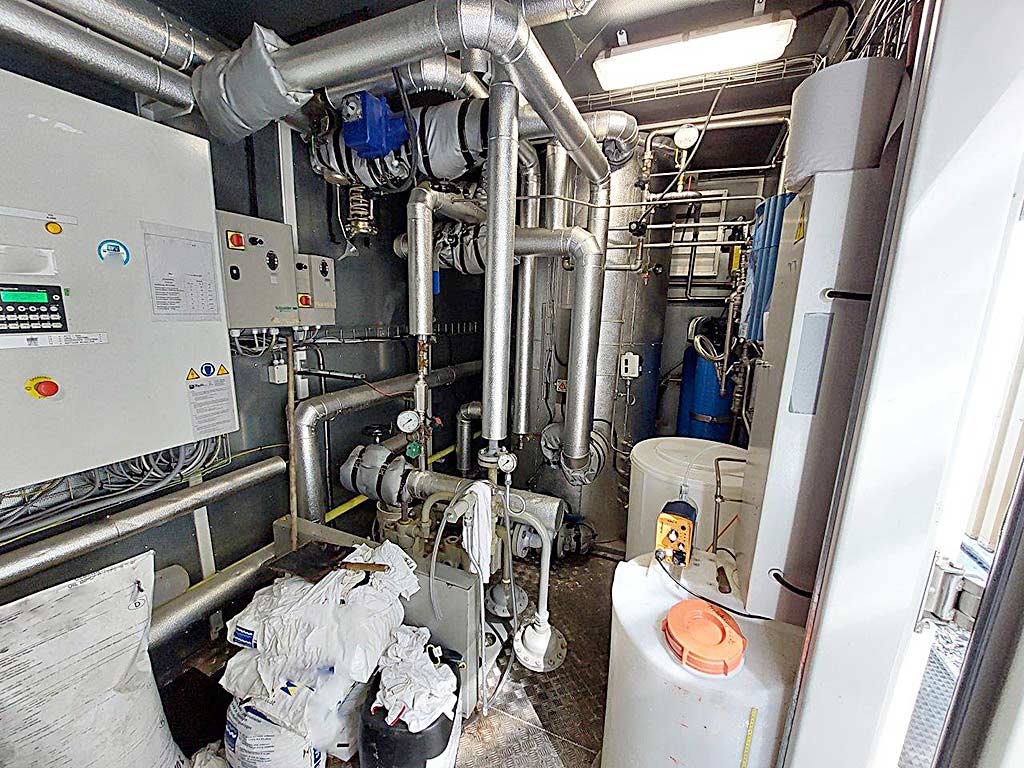

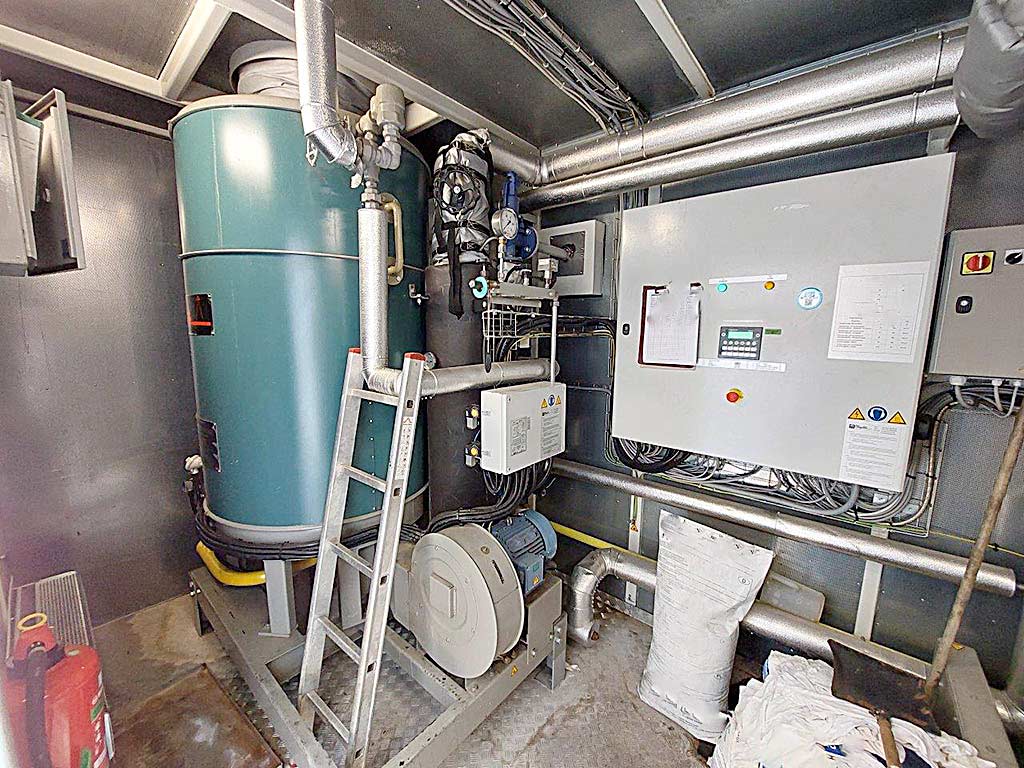

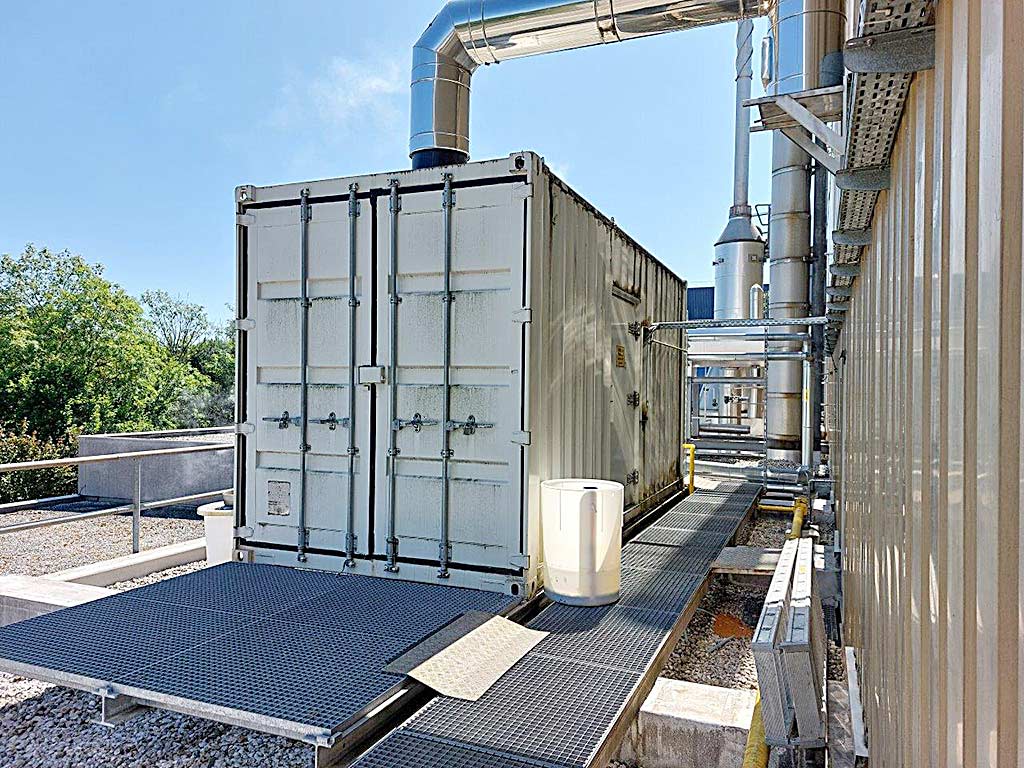

| Description A lightly used Clayton quick steam generator including water treatment in container design is available. Operating overpressure: 10bar, operating temperature: 184°C, pressure vessel volume: 235l, heating surface: 27.5m², steam capacity: 1253kg/h, output: 786kW, test pressure: 15bar, fuel: natural gas H, fuel heating value: 33200kJ/Nm³, burner output min./max.: 281kW/843kW, max. gas pressure regulator/burner: 40mbar/25mbar, nominal gas flow: 91.4Nm³/h. Overall system dimensions X/Y/Z: approx. 6300mm/2450mm/3000mm, weight: approx. 6000kg, operating hours: under 4000h. The system was tested at the end of 2023 and in mid 2024. Documentation available. On-site inspection is possible. |
|
| Make | Clayton |
|---|---|
| Model | SEG-80-1 |
| Year of manufacture | 2015 |
| Price | On application |
| Offer No | INNO30563 |
