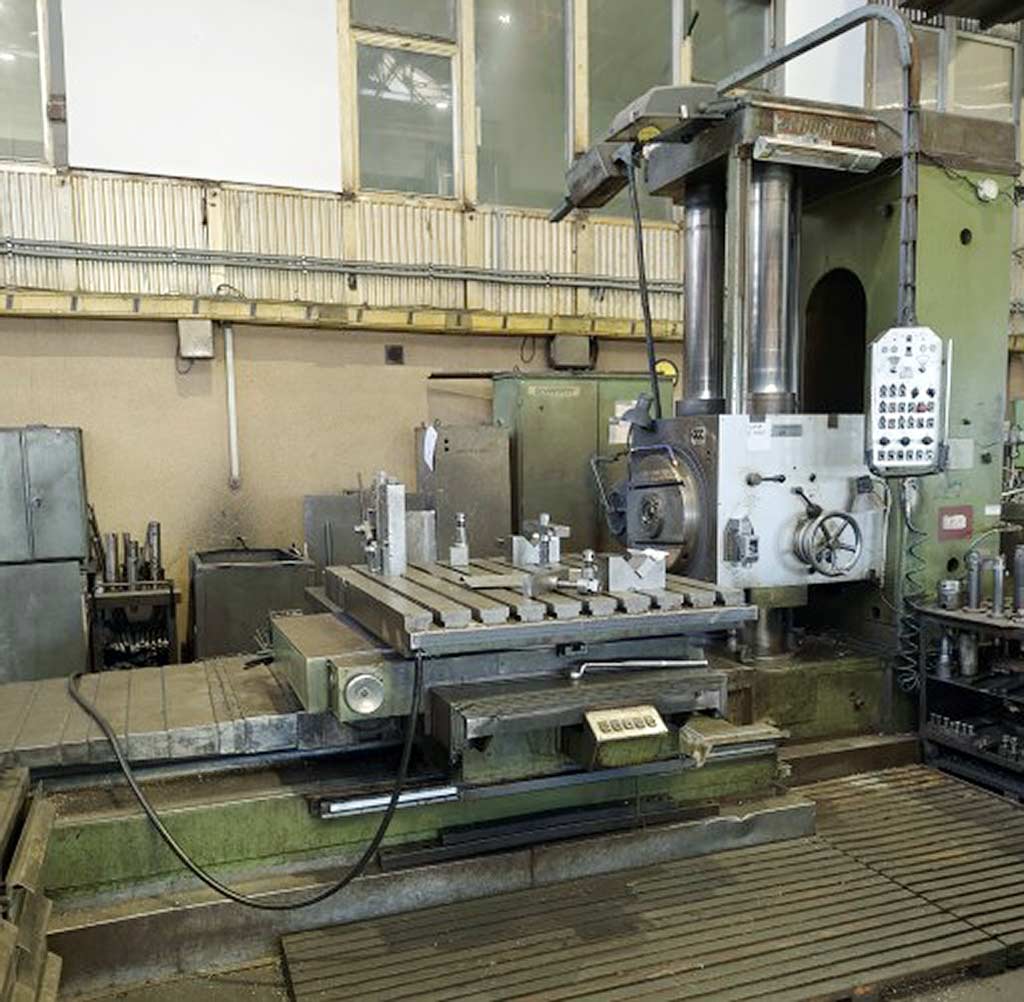

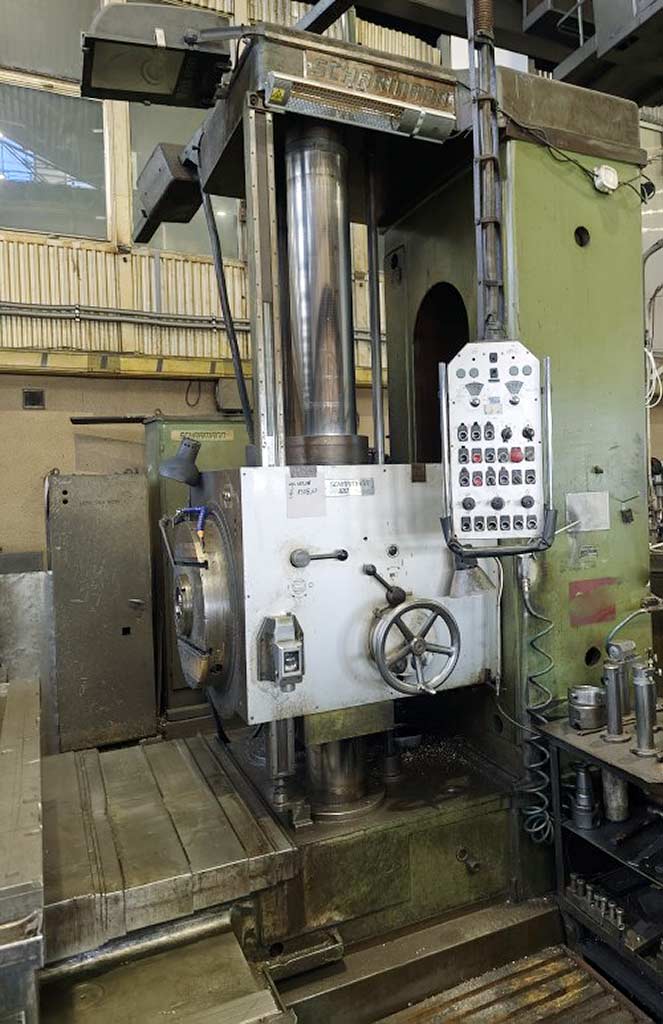

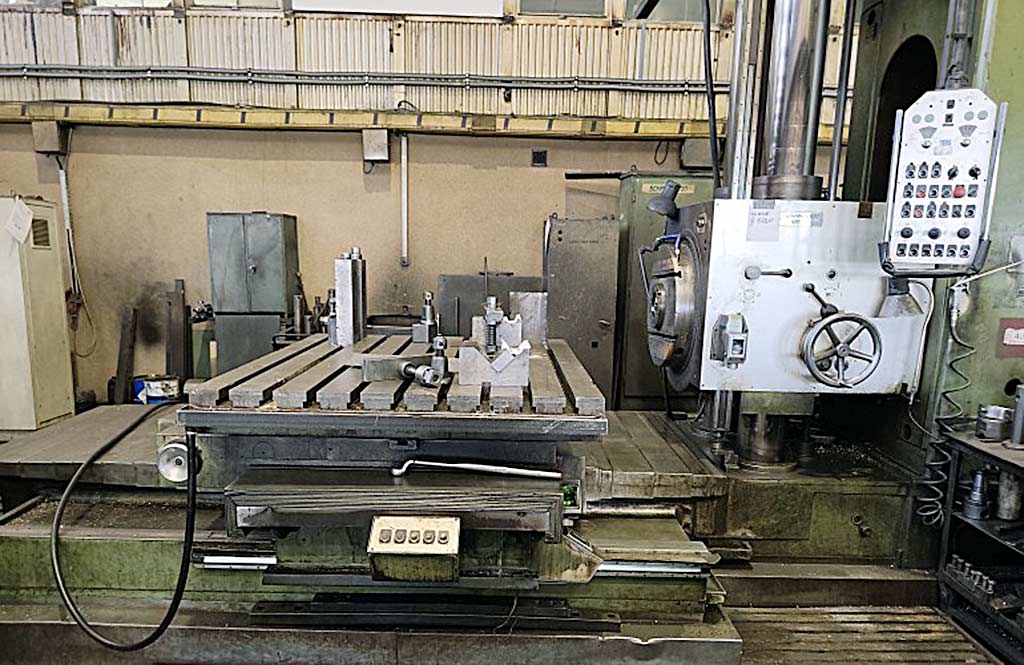

| Description A horizontal boring and milling machine Scharmann is available. Spindle sleeve diameter: 120mm, travel X/Y/W: 1600mm/1600mm/600mm, speed: 1000rpm, table dimensions X/Y/Z: approx. 1200mm/1400mm, max. table load: 6000kg, column diameter: 220mm, table rotation: 360°, rapid traverse: 380mm/min, feed: 2400mm/min. Machine dimensions X/Y/Z: approx. 4500mm/2600mm/3000mm, weight: approx. 17000kg. Dokumentation vorhanden. An on-site inspection is possible. |
|
| Make | Scharmann |
|---|---|
| Model | FB 100 Opticut |
| Year of manufacture | 1970 |
| Price | On application |
| Offer No | INNO30365 |
