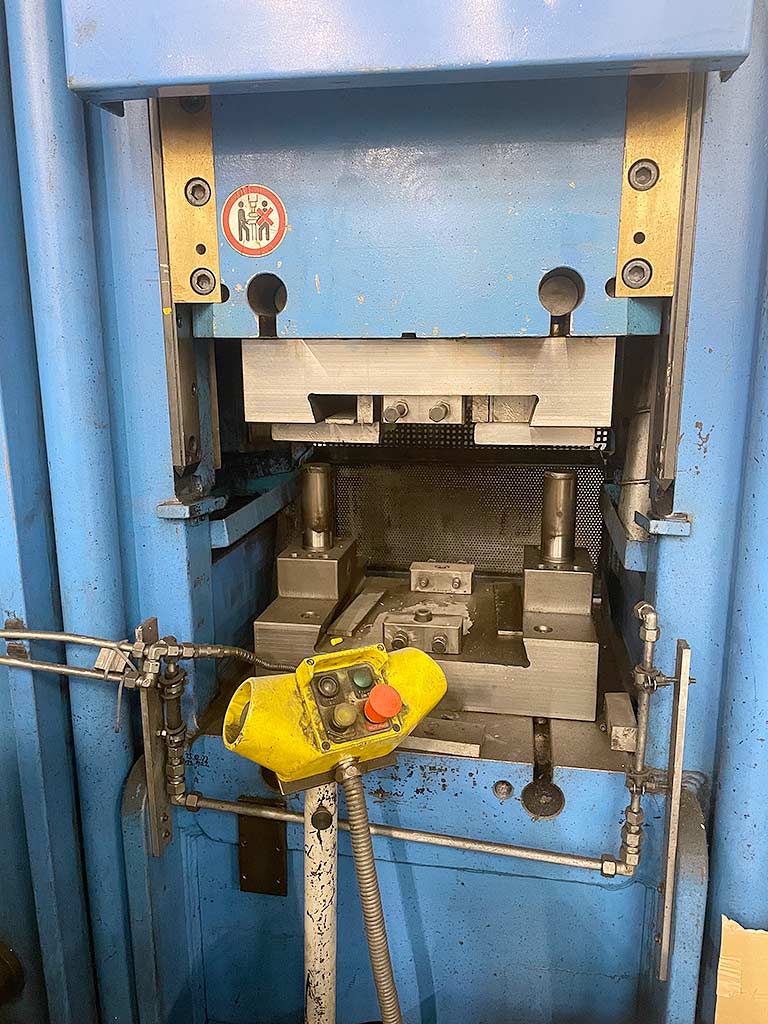

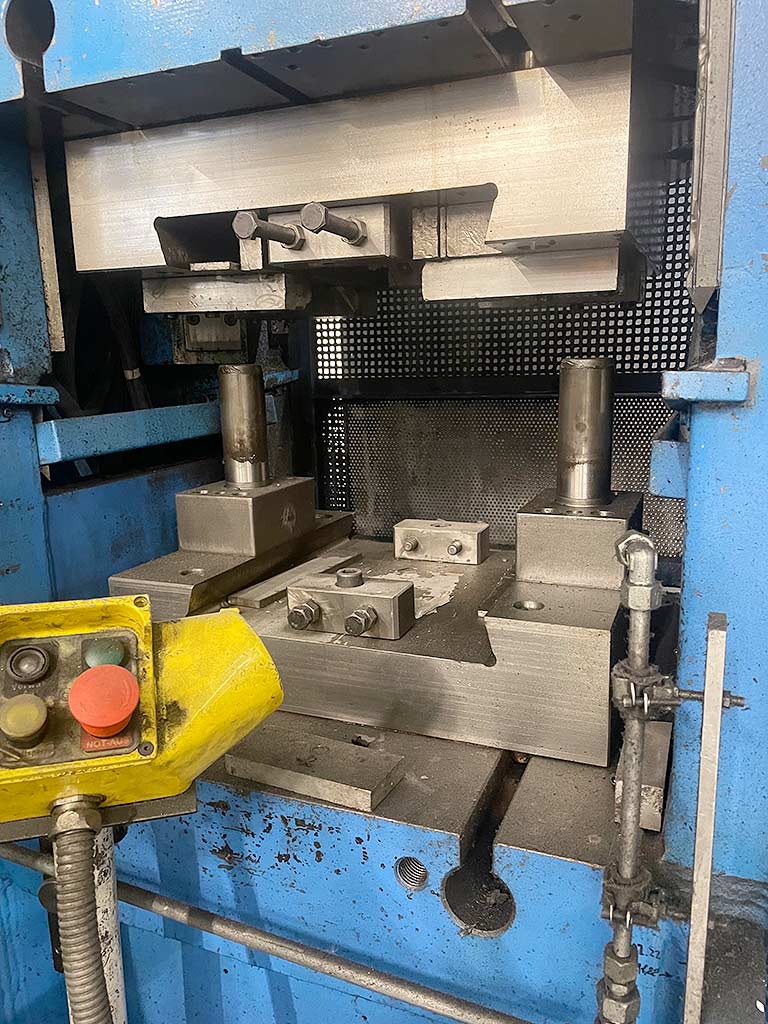

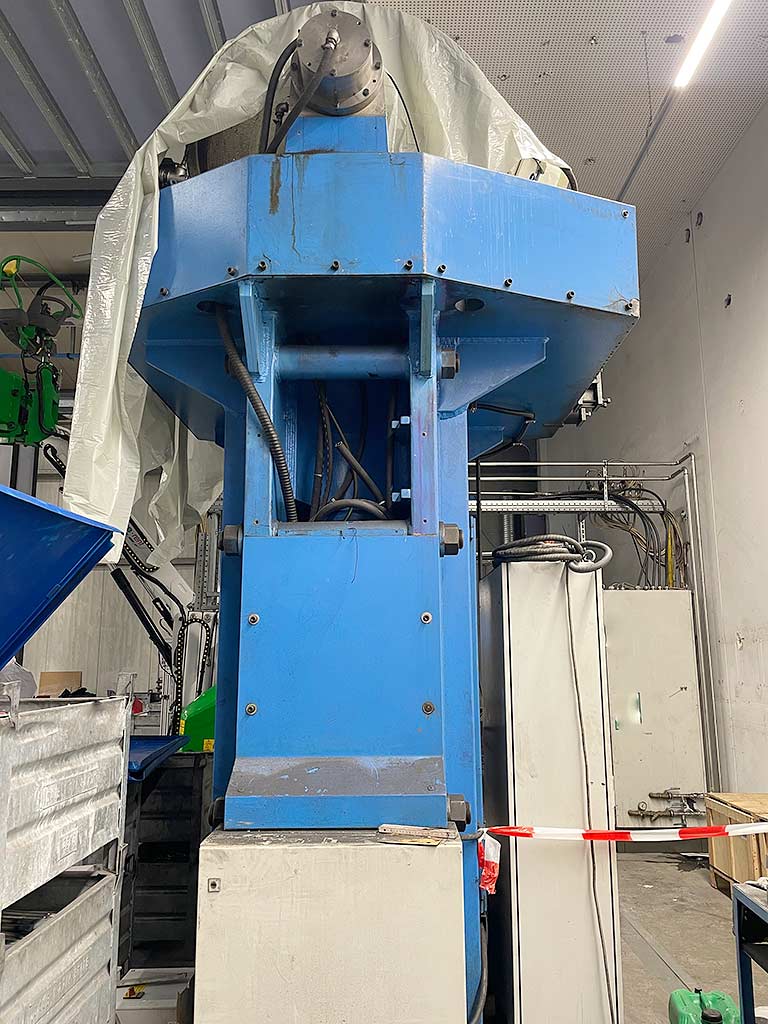

| Description A screw press is available. Working capacity: approx. 64kNm, max. stroke: 250mm, nominal pressing force: 650t, max. pressing force: 750t, impact stroke: approx. 900t. Spindle diameter: 290mm, number of spindle starts: 3, max. stroke adjustment: 150mm, stroke rate: approx. 30min⁻¹. Frame opening: 730mm, max. installation height: 720mm. Ram area X/Y: 700mm/700mm, table area X/Y: 720mm/740mm. Machine dimensions X/Y/Z: approx. 4400mm/3150mm/2000mm, machine weight: approx. 30000kg. Upper and lower platen available. An inspection on site is possible. |
|

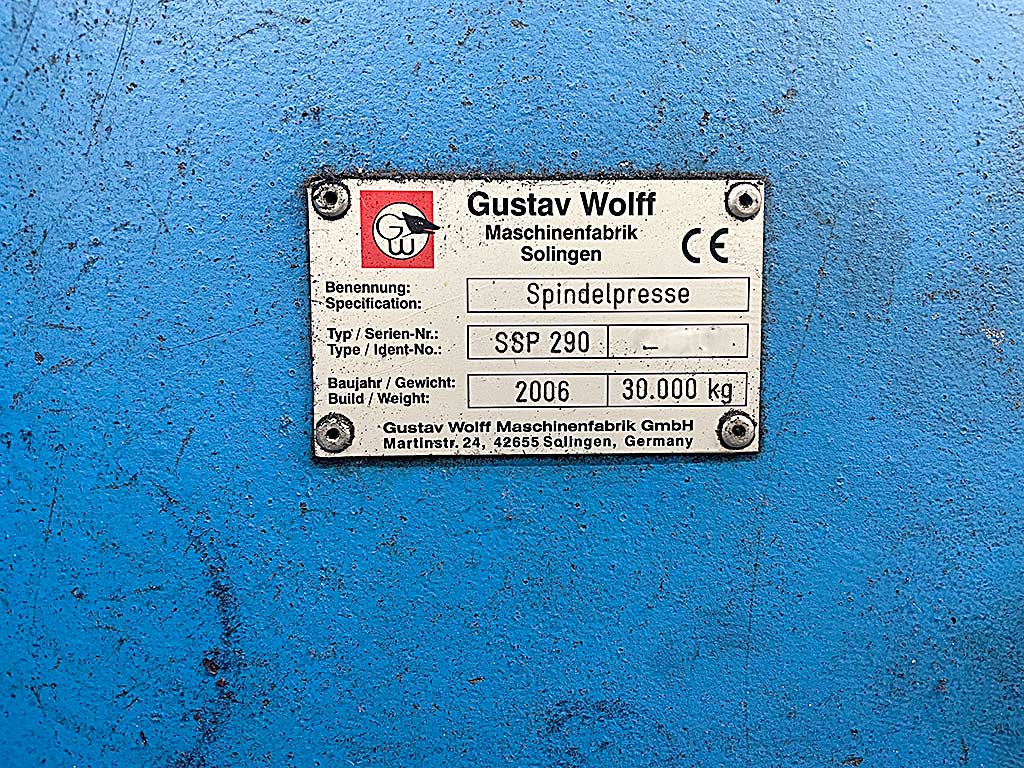

| Make | Gustav Wolff |
|---|---|
| Model | SSP290 |
| Year of manufacture | 2006 |
| Price | On application |
| Offer No | INNO30330 |
