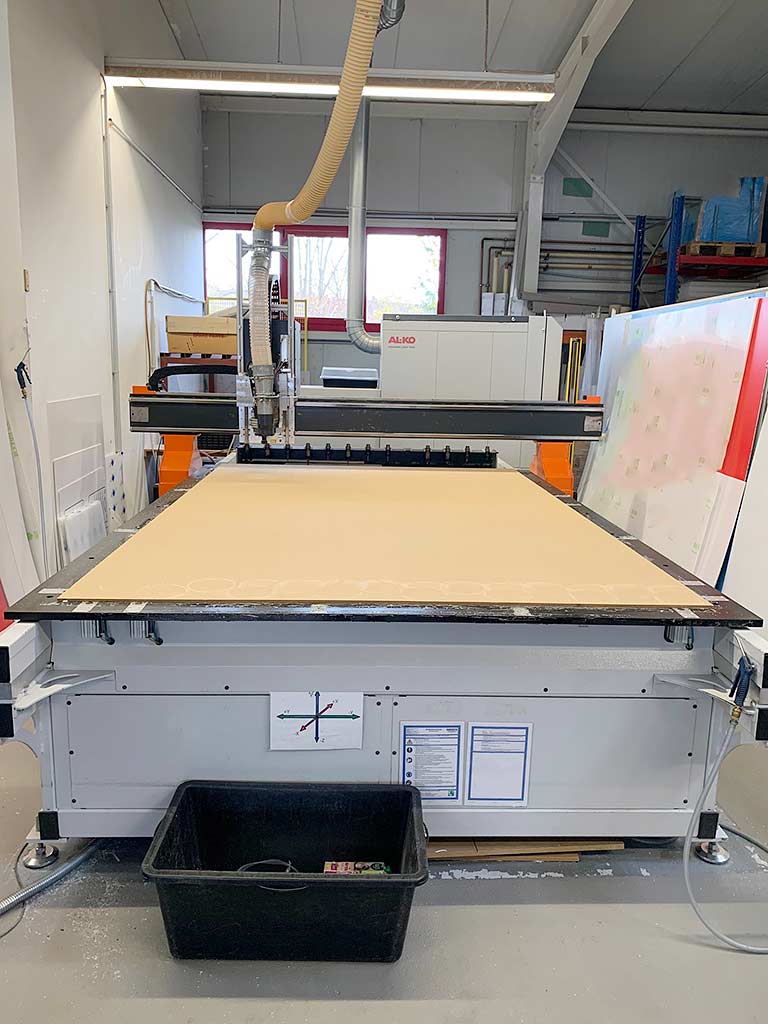

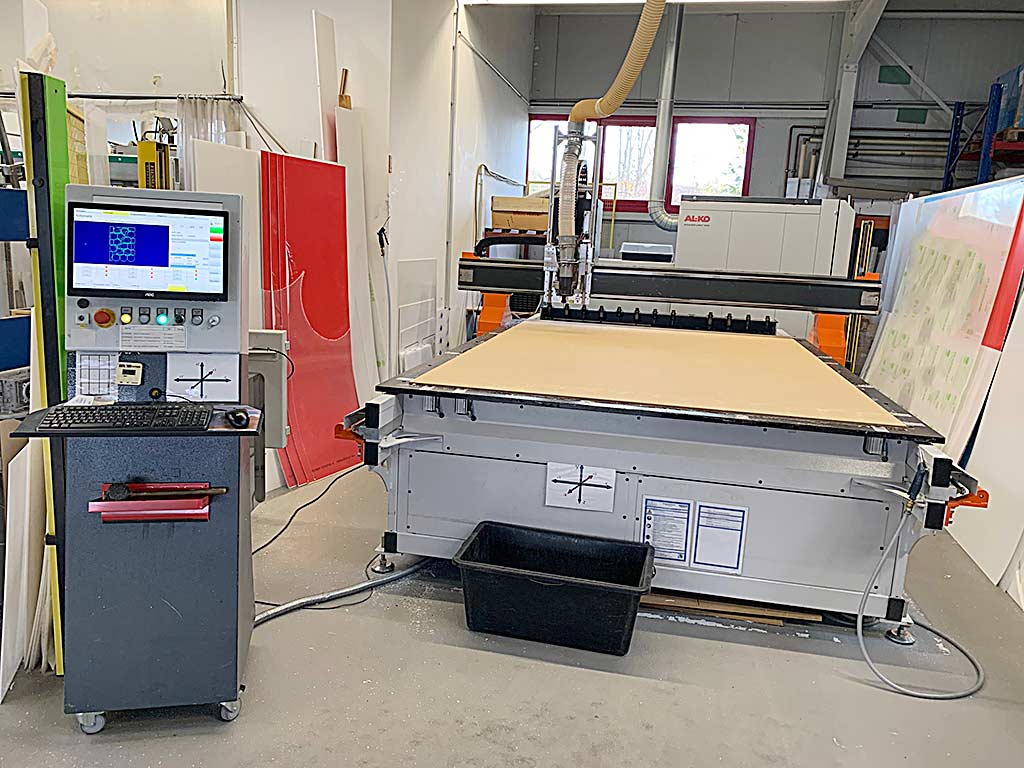

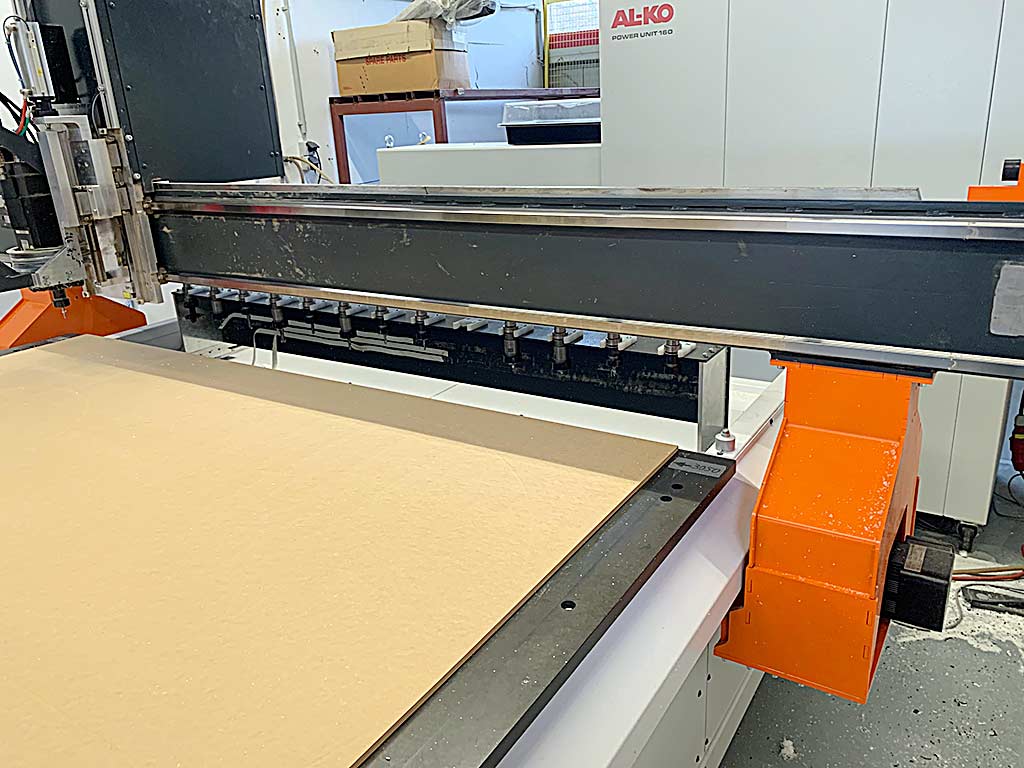

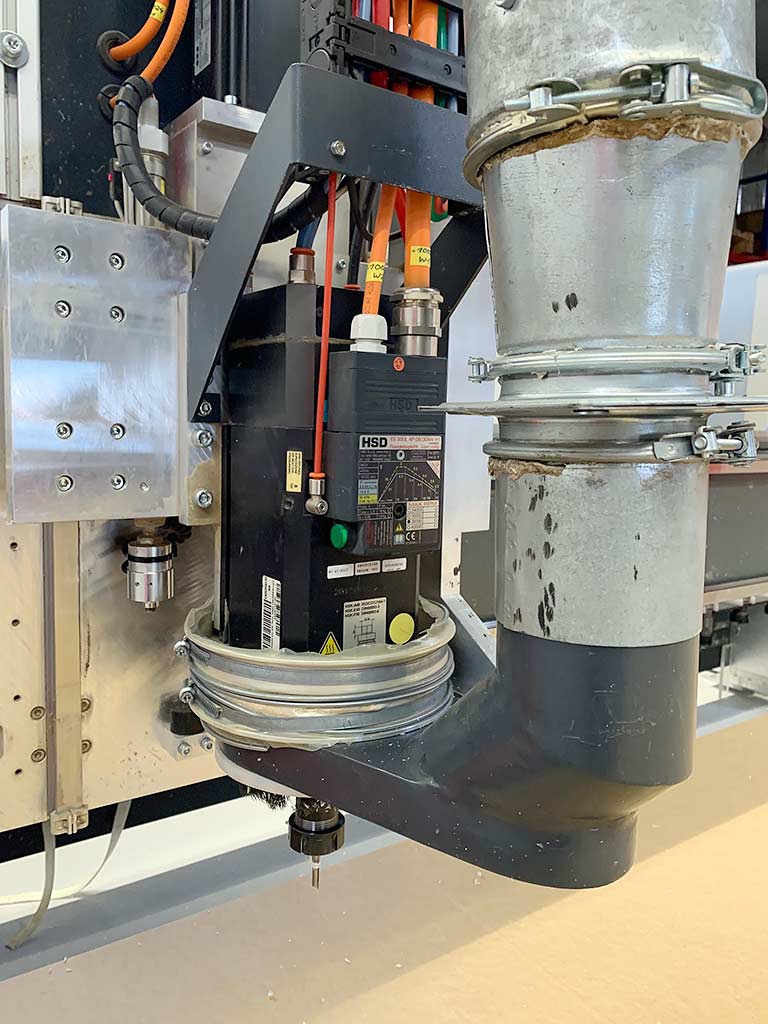

| Description A CNC gantry machining center BES with vacuum table is available. Travel path X/Y/Z: 2100mm/2100mm/150mm, max. gantry clearance: 150mm, max. working speed: 85m/min, rapid traverse: 85m/min, max. Z-stroke: 250mm, max. tool diameter: 100mm. Table material: phenolic resin, table thickness: 25mm, vacuum groove width: 6mm, groove pitch: 30mm, segments: 9. Spindle type: HSD H616, power: 6.5kW/8kW, speed: 36000rpm, tool holder: HSK E40, tool positions: 13. Machine dimensions X/Y: 5800mm/4000mm, weight: approx. 3000kg. Documentation is available. An on-site inspection is possible. |
|
| Make | Bes |
|---|---|

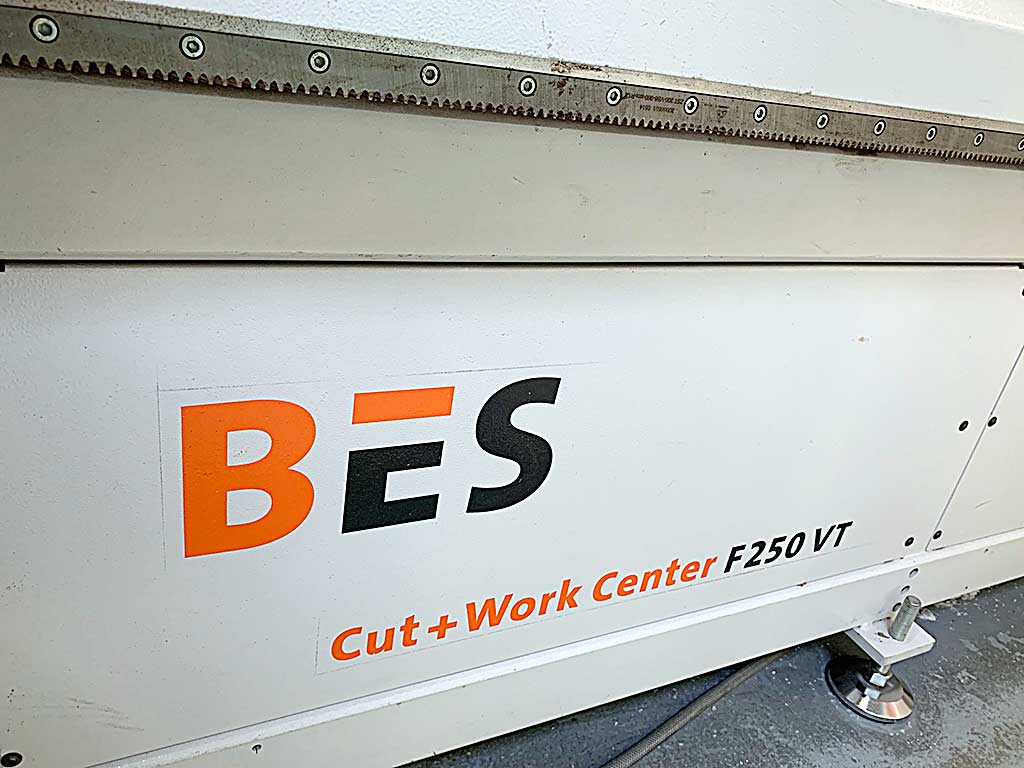

| Model | MCC F 250 VT |
| Year of manufacture | 2014 |
| Price | On application |
| Offer No | INNO30296 |
