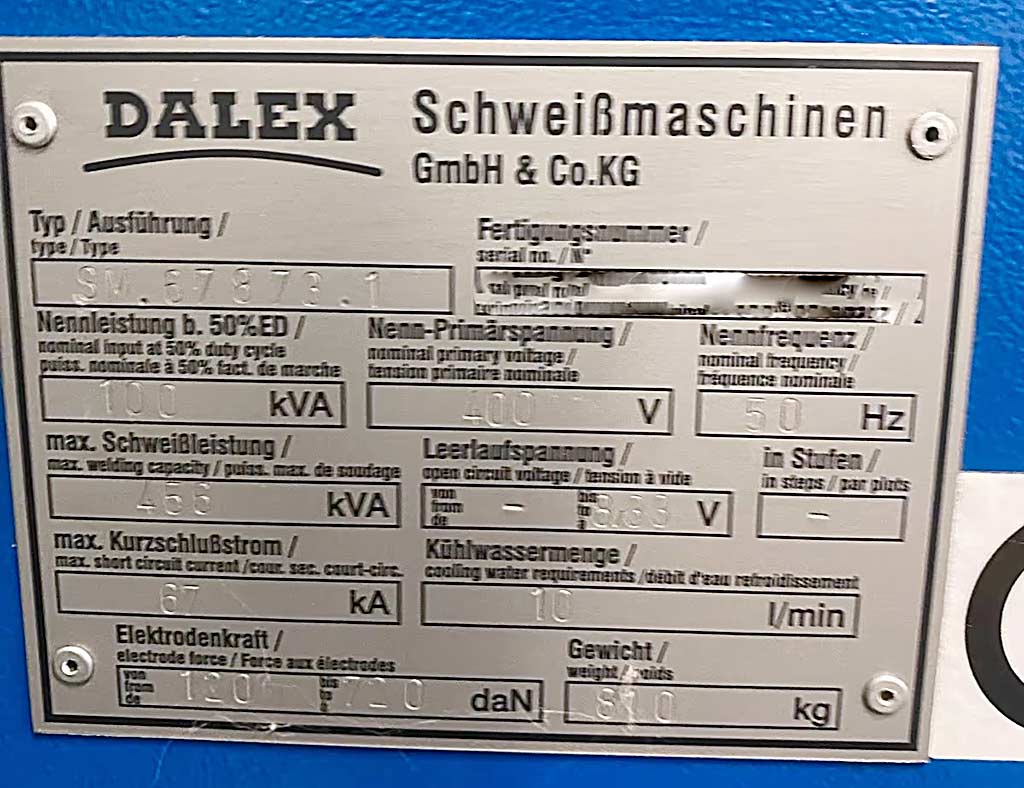

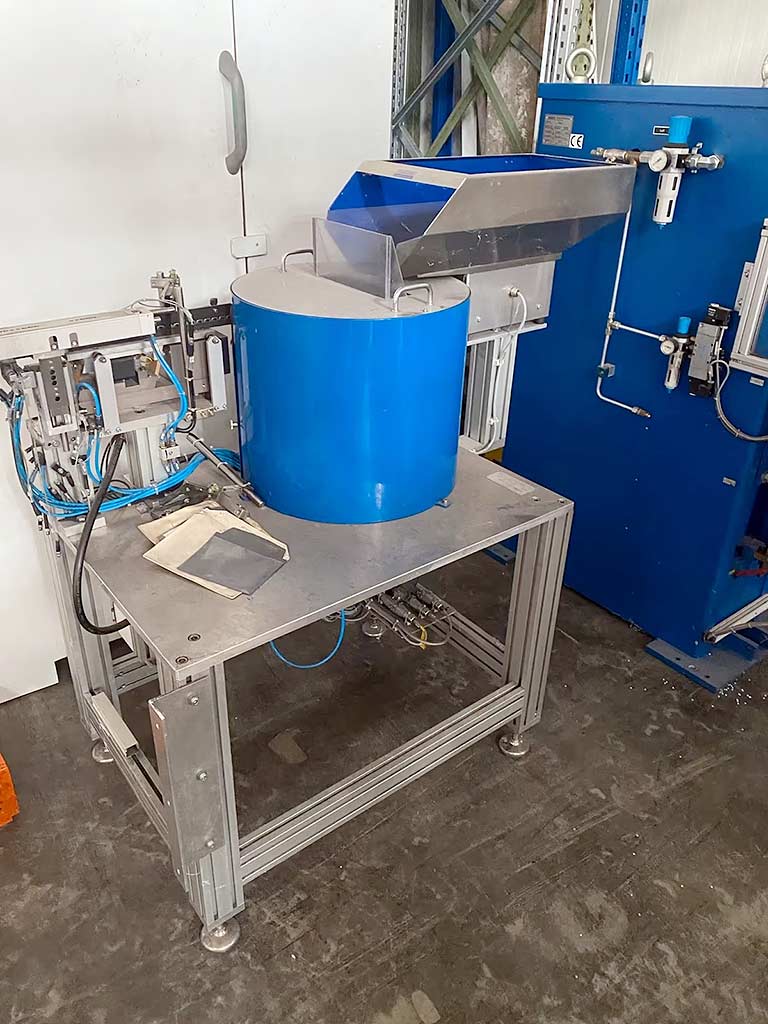

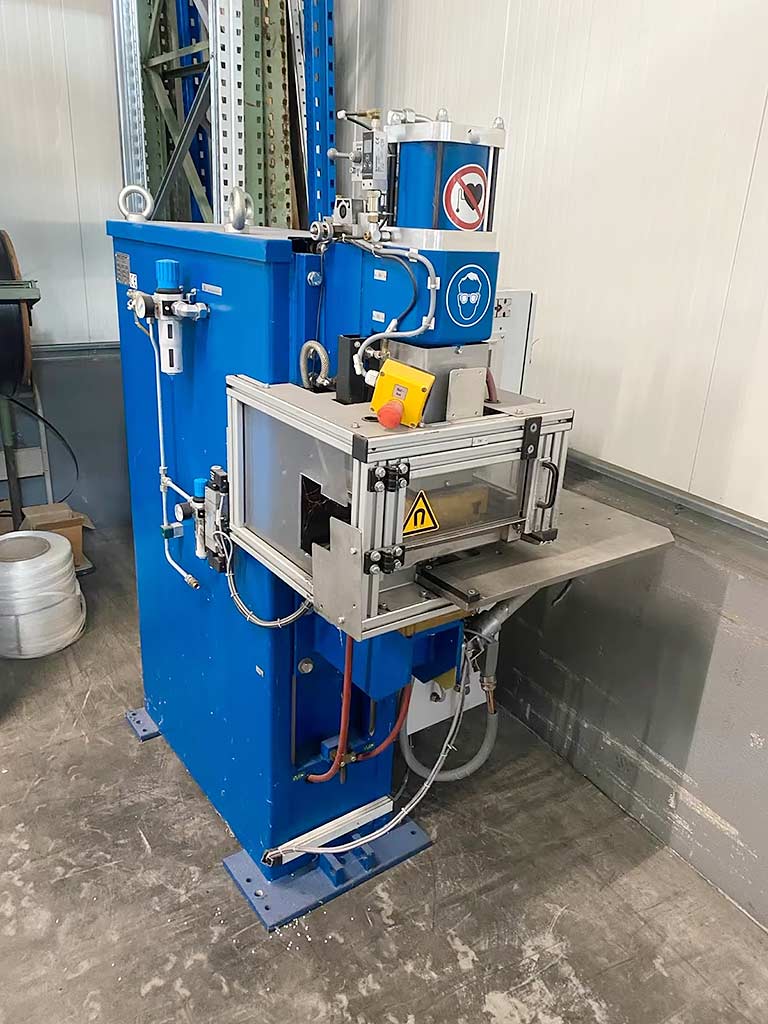

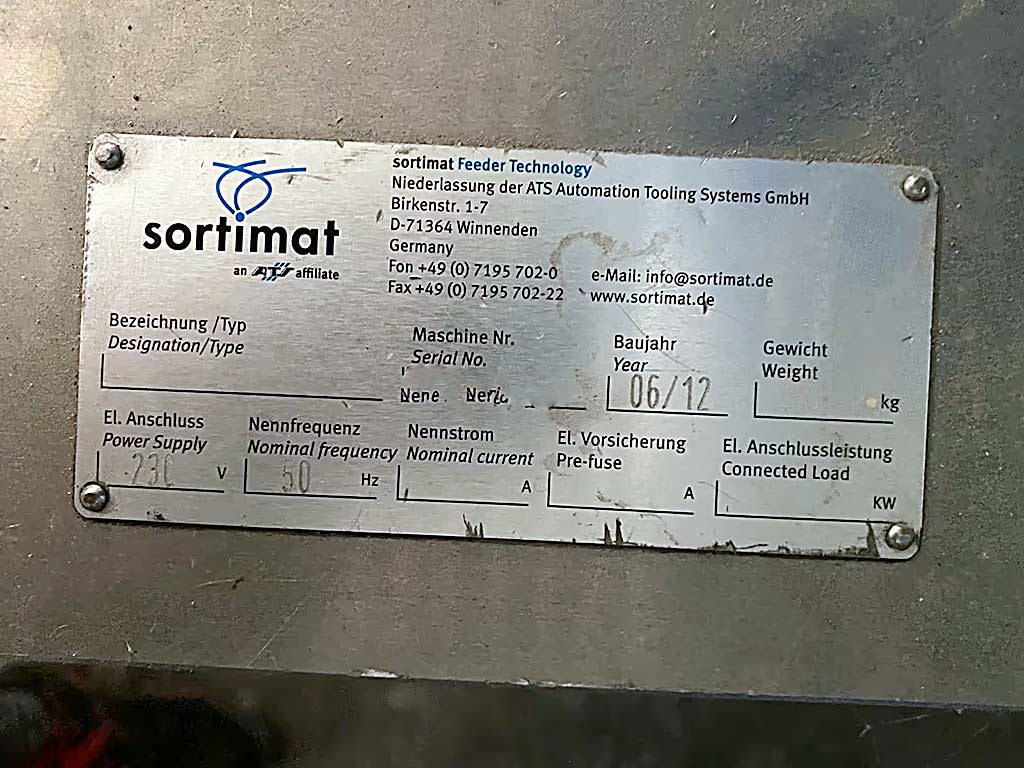

| Description A Dalex welding press/projection welding machine including Sortimat (ATS) feeding unit is available. Rated power at 50% duty cycle: 100kVA, max. welding power: 455kVA, open-circuit voltage: 8.88V, max. short-circuit current: 67kA, cooling water flow rate: 10l/min, electrode force min./max.: 120daN/720daN, single-stroke cylinder: 100mm, machine throat depth: 250mm, stop range: 148mm-400mm, belt diameter: 260mm. Weight: approx. 850kg, control system: MPS 200 multi R1. Including sorting and feeding unit, flow monitor, adjustment device and return stroke monitoring. Documentation available. An on-site inspection is possible. |
|
| Make | Dalex |
|---|---|
| Model | PMS 32-5 |
| Year of manufacture | 2012 |
| Price | On application |
| Offer No | INNO30183 |
