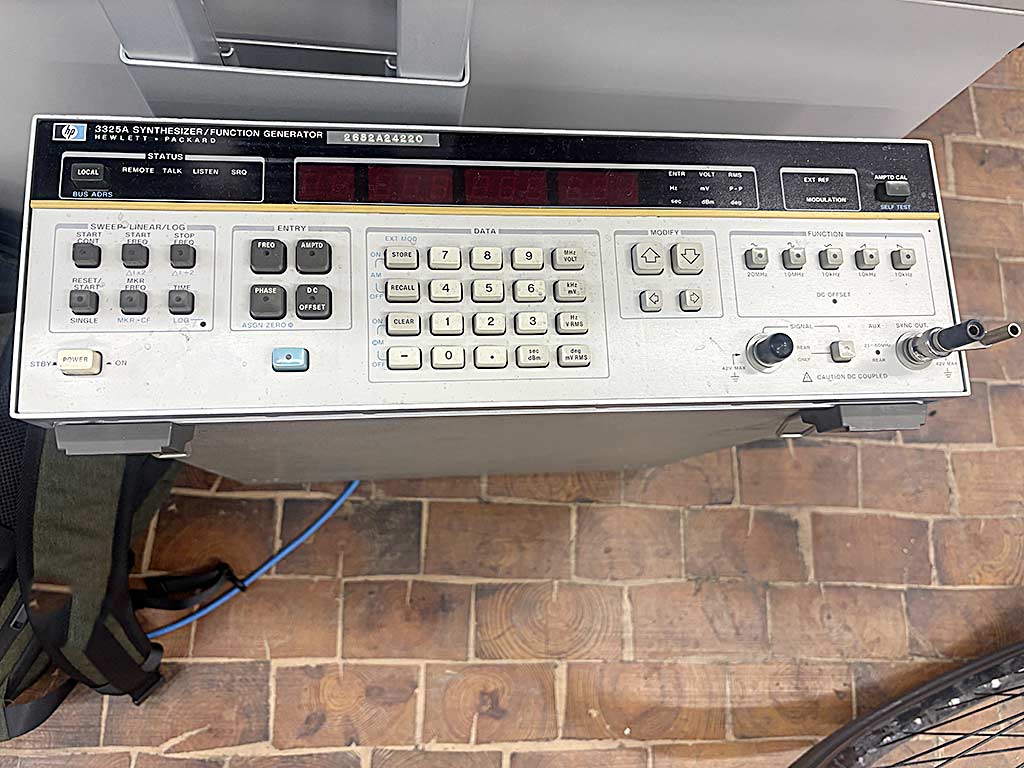

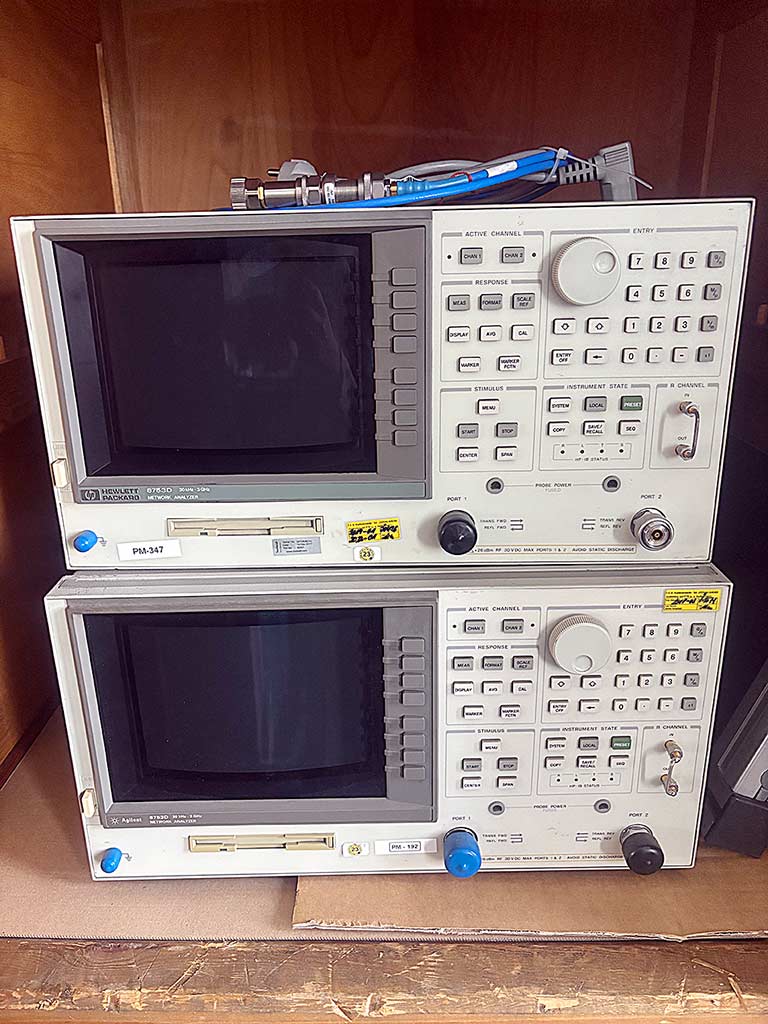

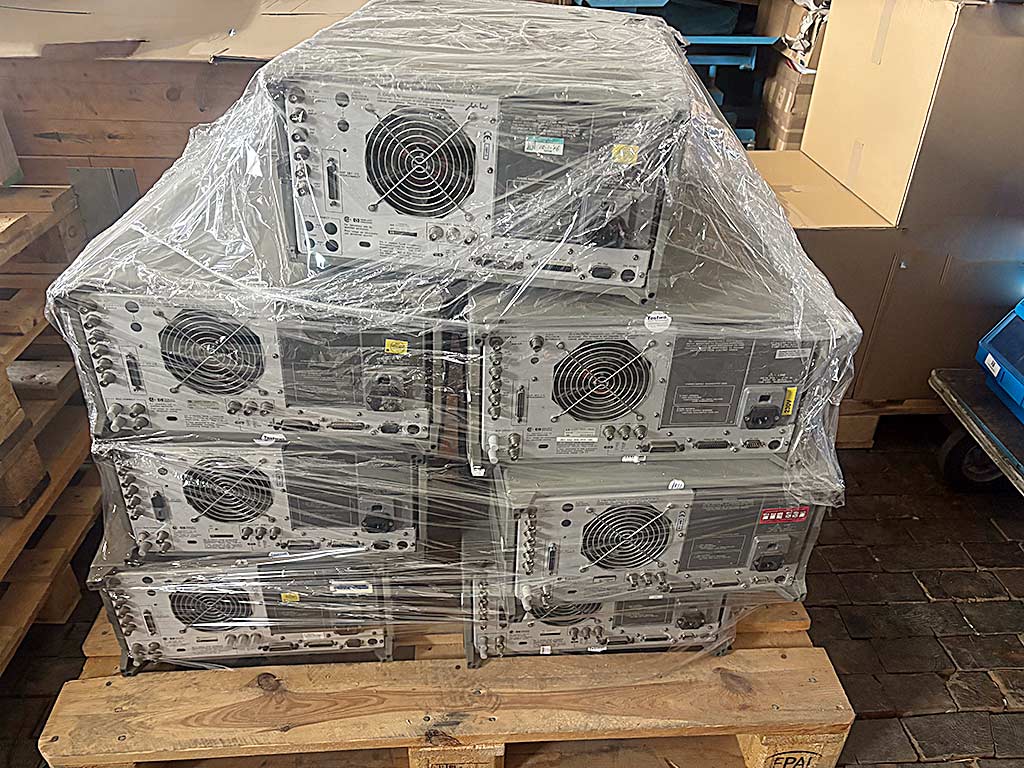

| Description Several vector network analyzers and one synthesizer-based HP function generator are available. 1) 3x HP 8753D, frequency range: 30kHz-6GHz, option: 006, max. dynamic range: 110dB, frequency resolution: 1Hz, output power min./max.: -85dBm/10dBm, power resolution: 0.05dB, input impedance: 50Ohm, measurement types: S-parameters/reflection/transmission/phase/magnitude/group delay, max. sweep speed: 200µs/point. Machine dimensions X/Y/Z: approx. 450mm/200mm/600mm, weight: approx. 25kg. 2) 6x HP 8753D, frequency range: 30kHz-3GHz, option: Standard, max. dynamic range: 110dB, frequency resolution: 1Hz, output power min./max.: -85dBm/10dBm, power resolution: 0.05dB, input impedance: 50Ohm, measurement types: S-parameters/reflection/transmission/phase/magnitude/group delay, max. sweep speed: 200µs/point. Machine dimensions X/Y/Z: approx. 450mm/200mm/600mm, weight: approx. 25kg. 3) HP 3325A, max. frequency range: 21MHz, resolution: 1µHz, max. amplitude: 10V. Machine dimensions X/Y/Z: approx. 450mm/150mm/450mm, weight: approx. 15kg. All devices were calibrated in 2019. Documentation available. On-site inspection possible. |
|
| Make | Hp |
|---|---|
| Model | 8753D/3325A |
| Year of manufacture | unknown |
| Price | On application |
| Offer No | INNO30142 |
