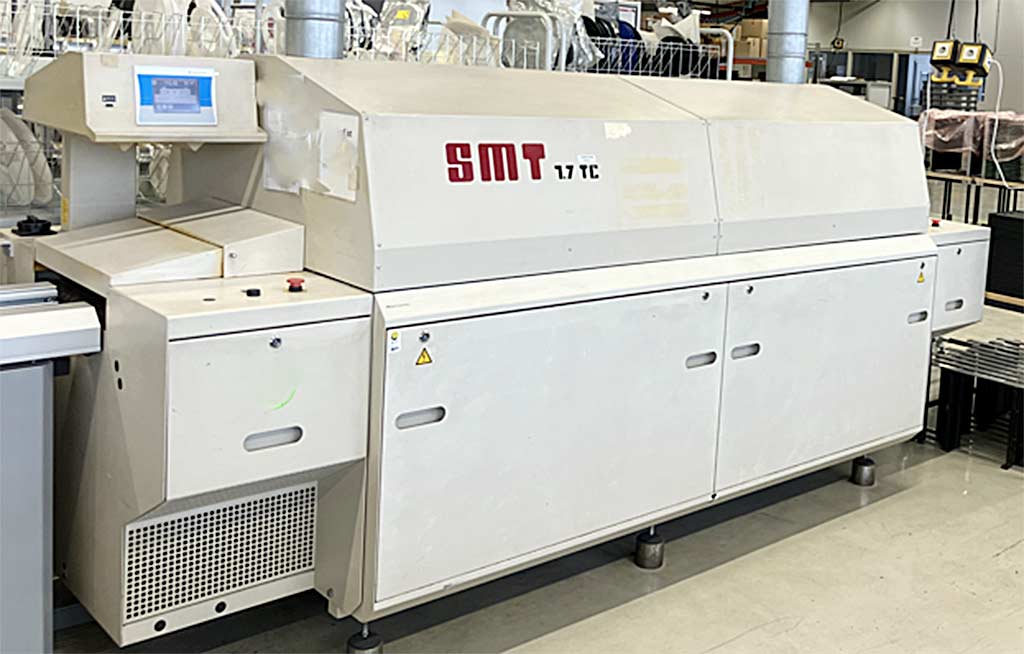

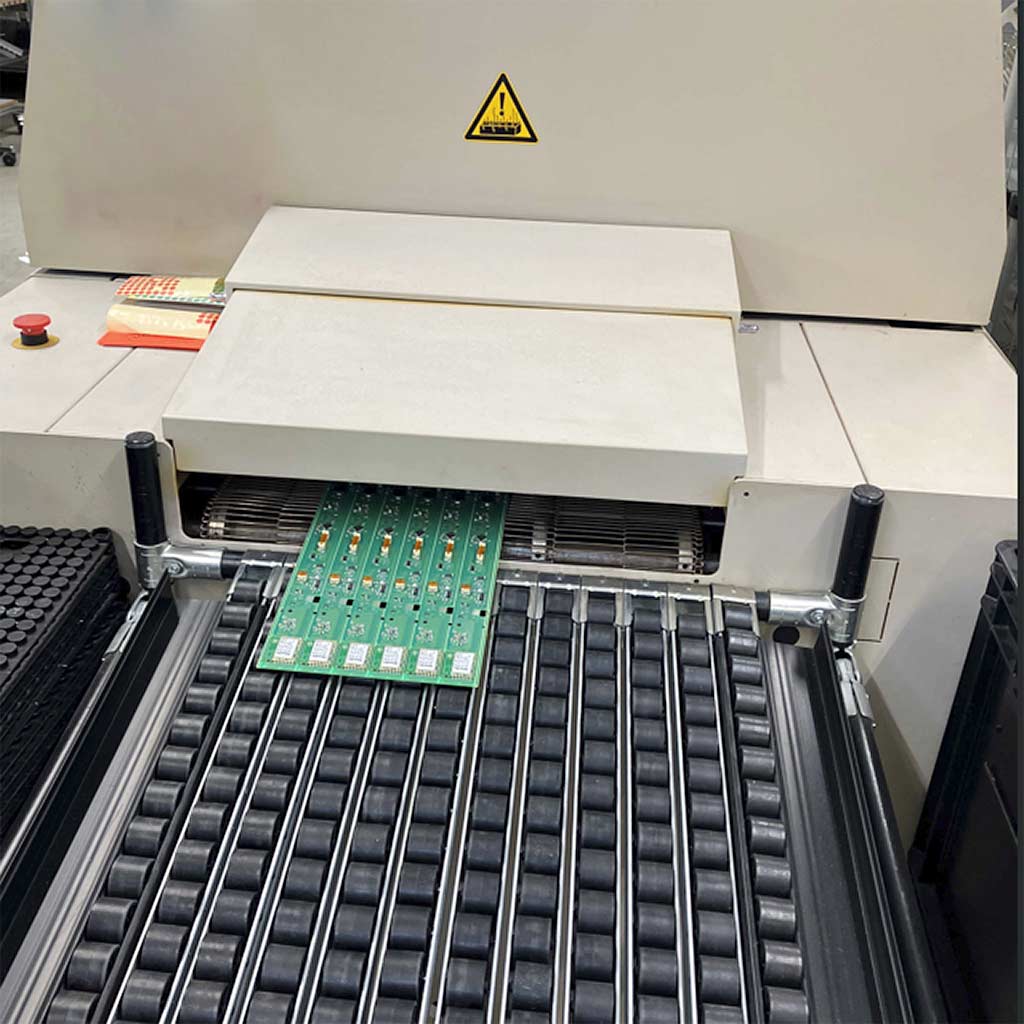

| Description A soldering system SMT with pin chain conveyor for the printed circuit board industry is available. Temperature: 300°C, heating time: approx. 30min, convection zone: 1660mm, cooling zone: 1030mm, process length: 2780mm, usable width range: 10mm-460mm, clearance height top/bottom: 30mm/30mm, max. speed: 1.8m/min, machine dimensions X/Y/Z: approx. 3300mm/1350mm/1550mm, weight: approx. 1100kg, operating hours (estimated): approx. 55000h. Documentation available. An on-site inspection is possible. Expected to be available from Q1 2026. |
|

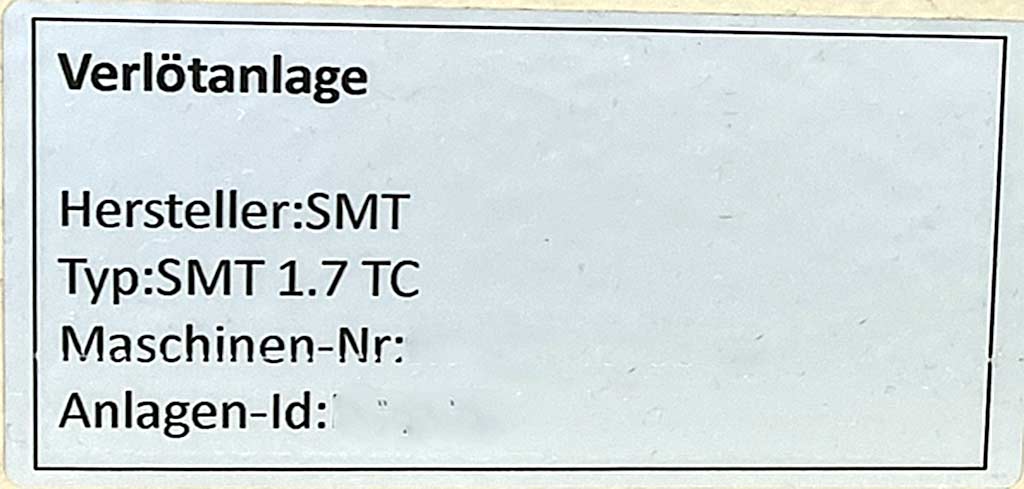

| Make | Smt |
|---|---|
| Model | 1.7 TC |
| Year of manufacture | 2002 |
| Price | On application |
| Offer No | INNO30088 |
