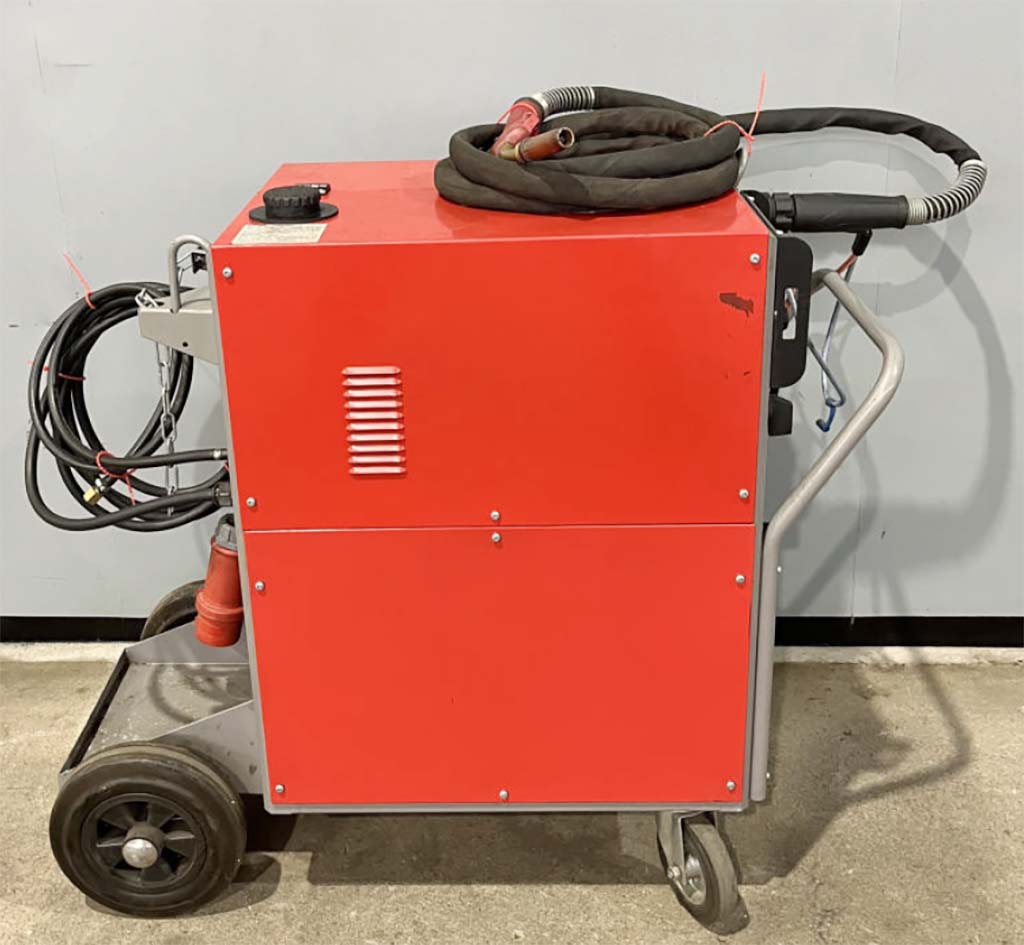

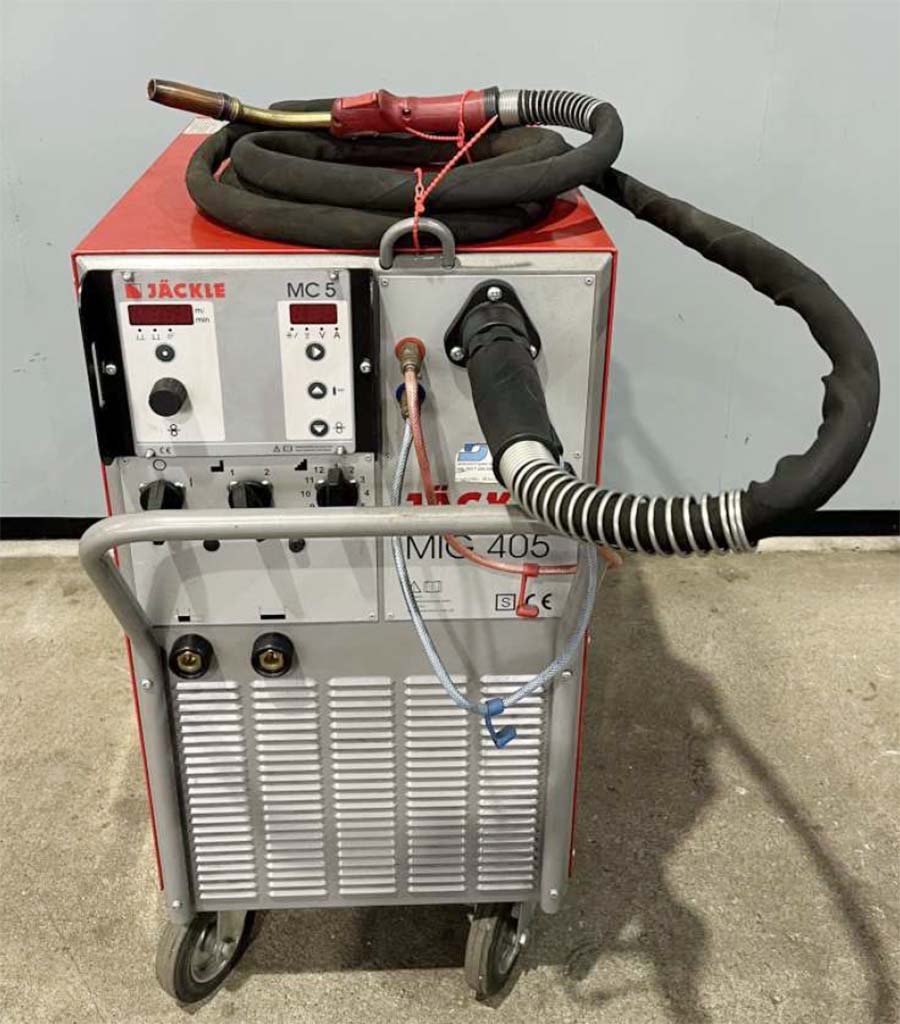

| Description 5 identical welding machines are available. Mains voltage: 400V 50/60Hz, fuse: 25A, power consumption: 22kVA, cos phi: 0.8, setting range: 40-400A, working voltage: 16-34V, open circuit voltage: 19-55V, voltage steps: 2x12. Duty cycle at 40°C: 60 percent at 360A 32V, 100 percent at 250A 26.5V. Protection class: IP23, insulation class: H 180°C, cooling type: F. Weight gas cooled: 153kg, water cooled: 161kg. Length: 1040mm, width: 460mm, height: 935mm. Two coarse steps, 12 fine steps, high performance 4 roll wire feeder 140W, feeding speed: 0.5-24m/min, wire diameter: 0.8-1.6mm, 2 choke outputs for adjustment to the welding task. Control MC 15 as a compact easily exchangeable control box. Functions: wire feed speed constant control, wire creep, burn back time, 2 stroke and 4 stroke, wire inching without current and gas, low noise fan thermostat controlled for gas cooled units, thermal overload protection, central connection socket for welding torch. An on-site inspection is possible. |
|
| Make | Jäckle |
|---|---|
| Model | MIG 405 |
| Year of manufacture | 2018 |
| Price | On application |
| Offer No | INNO29937 |
