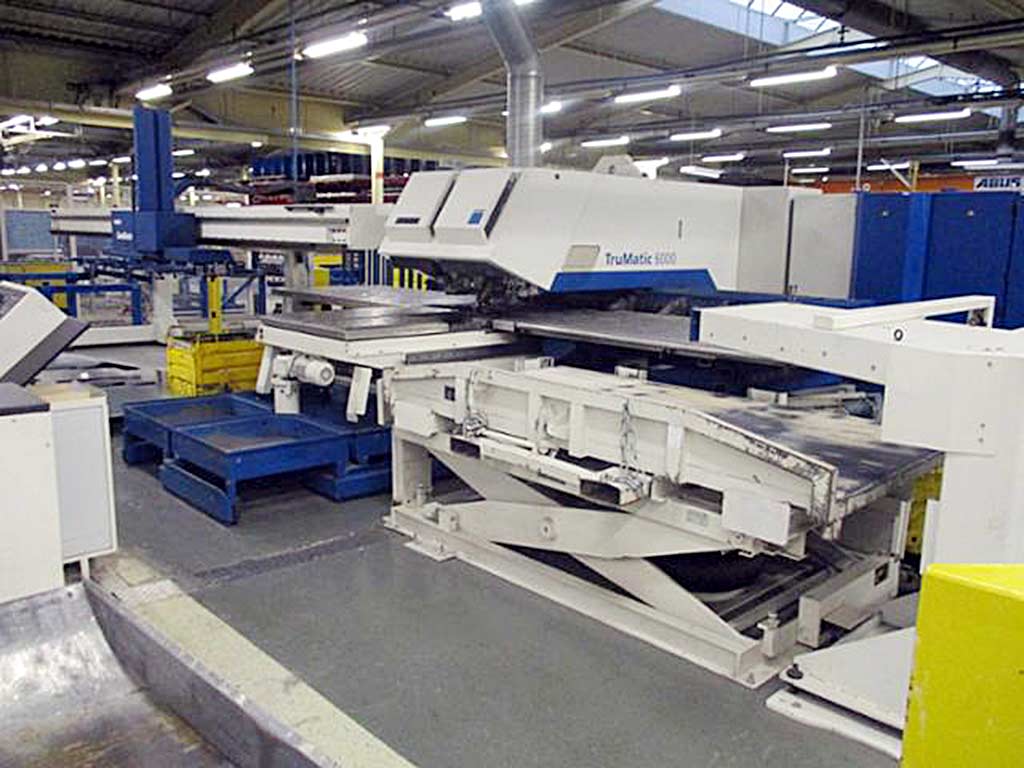

| Description Punching force: 220kN, working range combined operation X/Y: 2585mm/1650mm, working range punching operation: 3085mm/1740mm, working range laser operation X/Y: 3085mm/1650mm, max. sheet thickness mild steel/stainless steel/aluminum: 8mm/6mm/4mm, max. workpiece weight: 230kg. Positioning speed: 109m/min, max. stroke rate: 900 strokes/min, max. marking rate: 2800 strokes/min, tool positions: 18, accuracy: +/-0.1mm. Machine dimensions X/Y/Z: approx. 8000mm/9000mm/2500mm, weight: approx. 22500kg. Documentation available. An on-site inspection is possible. Expected to be available from November 2025. |
|
| Make | Trumpf |
|---|---|
| Model | TruMatic 6000 |
| Year of manufacture | 2008 |
| Price | On application |
| Offer No | INNO29933 |
