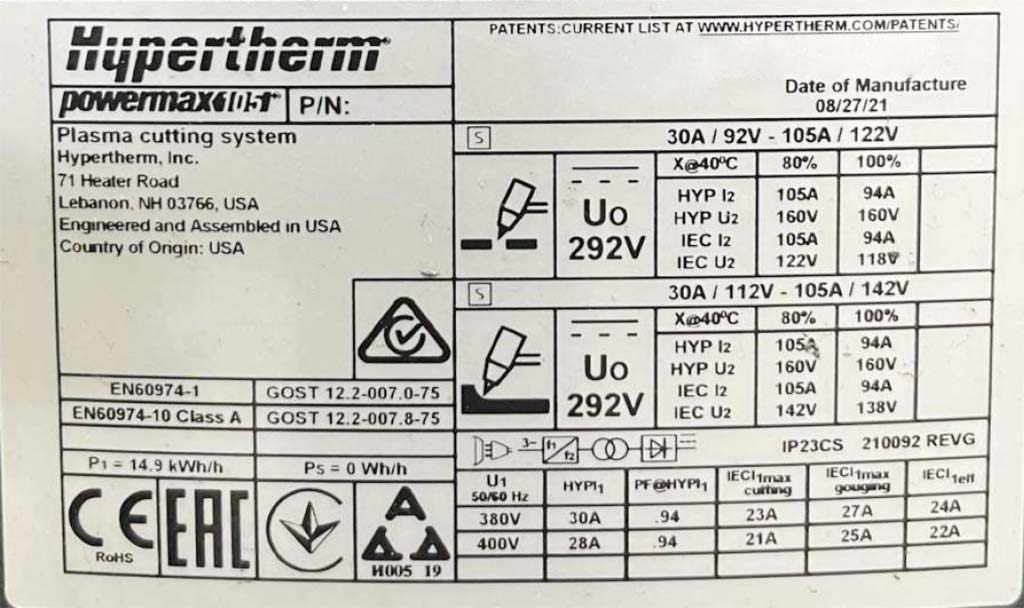

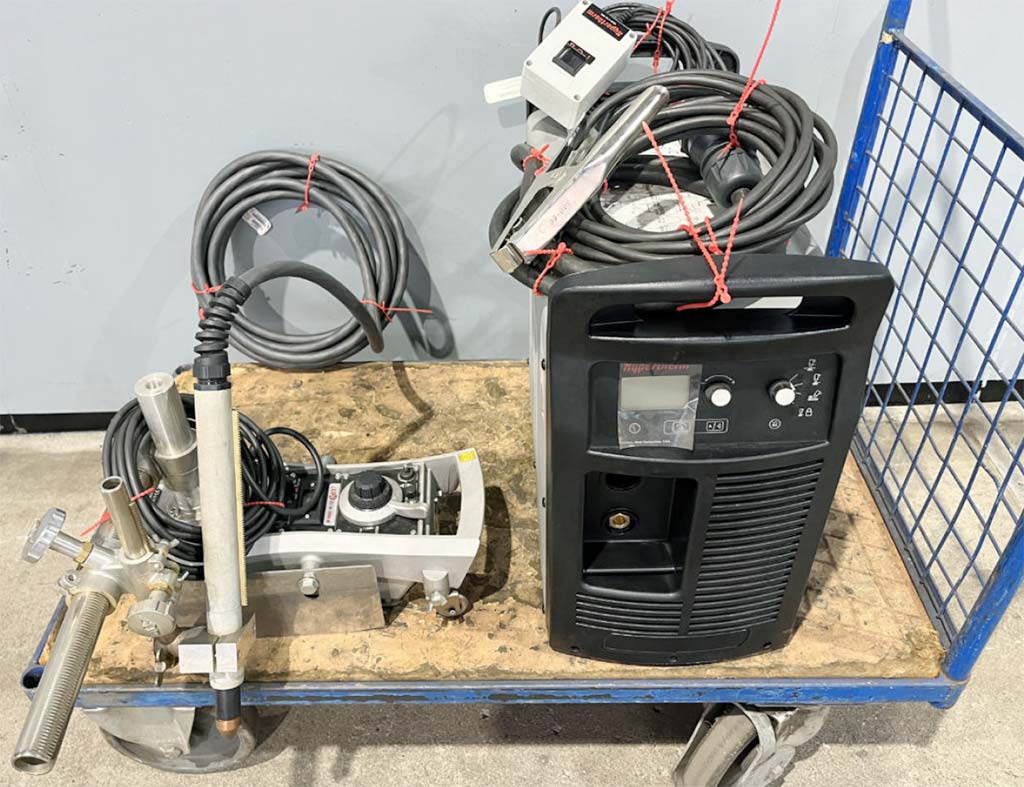

| Description A like new plasma cutter is available. Operating hours: 30h, open circuit voltage U₀: approx. 292V, output current I: 105A at 30A 92V–105A 122V at 92 or 122V under 30A, output voltage under load nominal HYP U₂ IEC U₂: approx. 160V at 100 percent power approx. 142–160V depending on standard, duty cycle at 30°C at 80 percent power 105A at X at 40°C, at 100 percent 94A or at other voltages, supply voltage input: three phase 3-PH multiple voltages possible 380–400V etc. U1 50/60Hz, protection class IP23CS, standards EN60974-1 EN60974-10 Class A GOST etc., power consumption P1: 14.9kW/h approx. 14.9kW, duty cycle at 40°C: 80 percent at 105A at certain voltages, 100 percent at slightly lower currents for example approx. 94A at higher voltages, other combinations depending on voltage and standard. Length with handles: 592mm, width: 274mm, height: 508mm, weight with torch 7.6m cable: 45kg. Table with sheet clamp, collection container and rail guide for the plasma cutter optionally available. An on-site inspection is possible. |
|
| Make | Hypertherm |
|---|---|
| Model | powermax 105 |
| Year of manufacture | 2021 |
| Price | On application |
| Offer No | INNO29932 |
