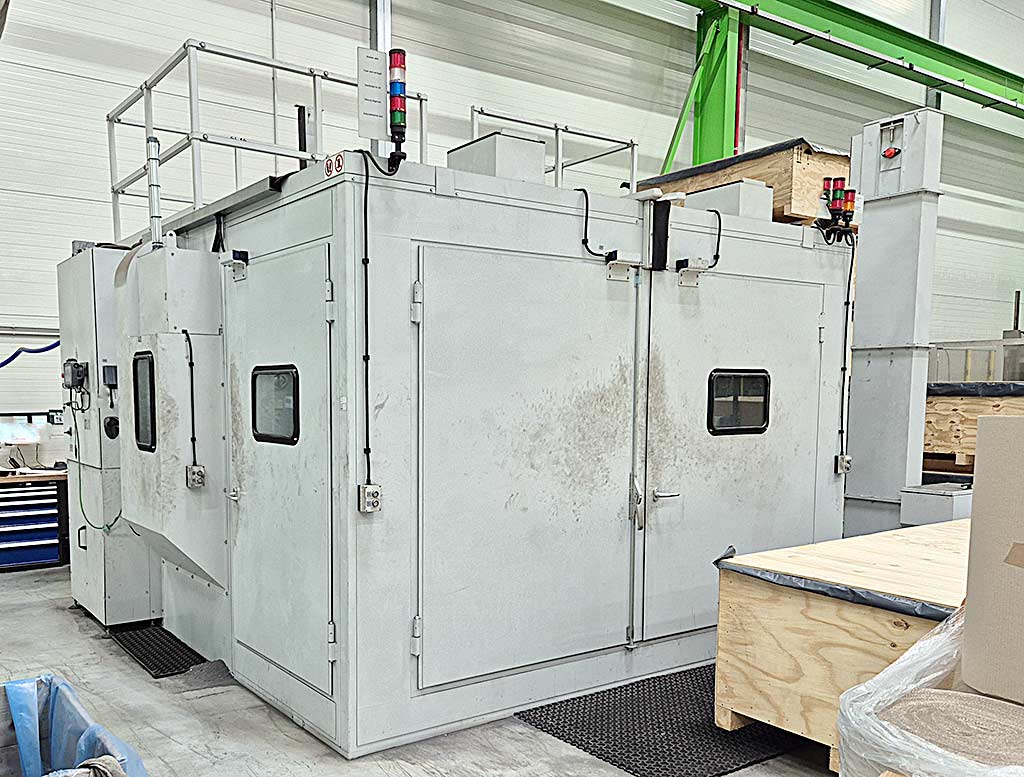

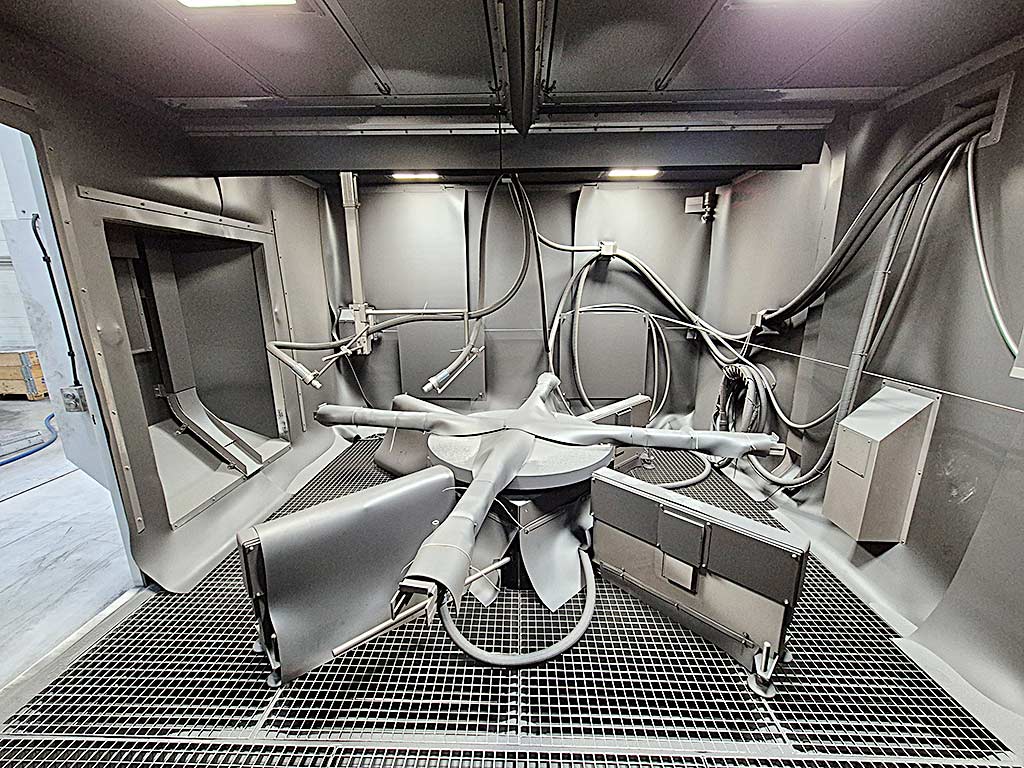

| Description Cabin dimensions X/Y/Z: 3500mm/3500mm/2500mm, door dimensions X/Y: 2800mm/2200mm, small door dimensions X/Y: 1000mm/2000mm, illumination: approx. 750Lux, rotary table diameter range: 1000mm/2500mm, max. workpiece height: 300mm, max. table load (centered): 300kg, horizontal stroke: 2800mm, vertical stroke: 400mm, nozzles: 3. Pressure blasting pot volume: 200l, operating pressure: 8bar, deduster air volume flow 1: 1800m³/h, filter area 1: 17m², deduster air volume flow 2: 3600m³/h, filter area 2: 30m². Overall system dimensions X/Y/Z: approx. 3660mm/3660mm/2650mm, control: Siemens KTP700. Documentation available. An on-site inspection is possible. |
|

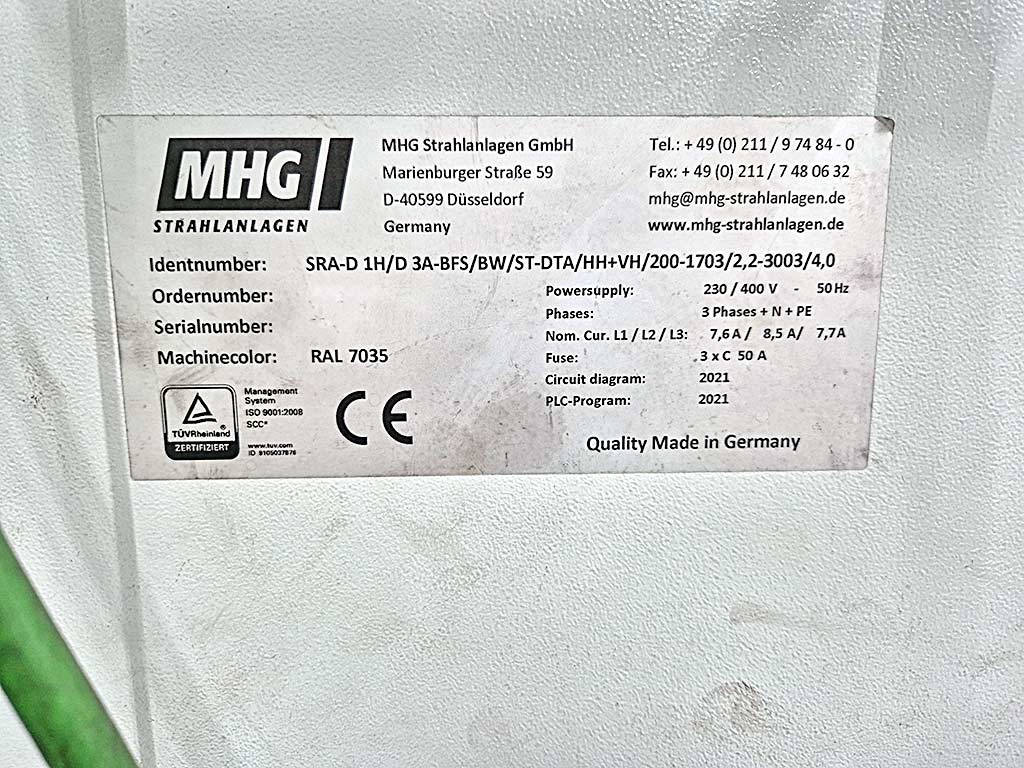

| Make | Mhg |
|---|---|
| Model | SRA-D1H/D3A-BFS |
| Year of manufacture | 2020 |
| Price | On application |
| Offer No | INNO29931 |
