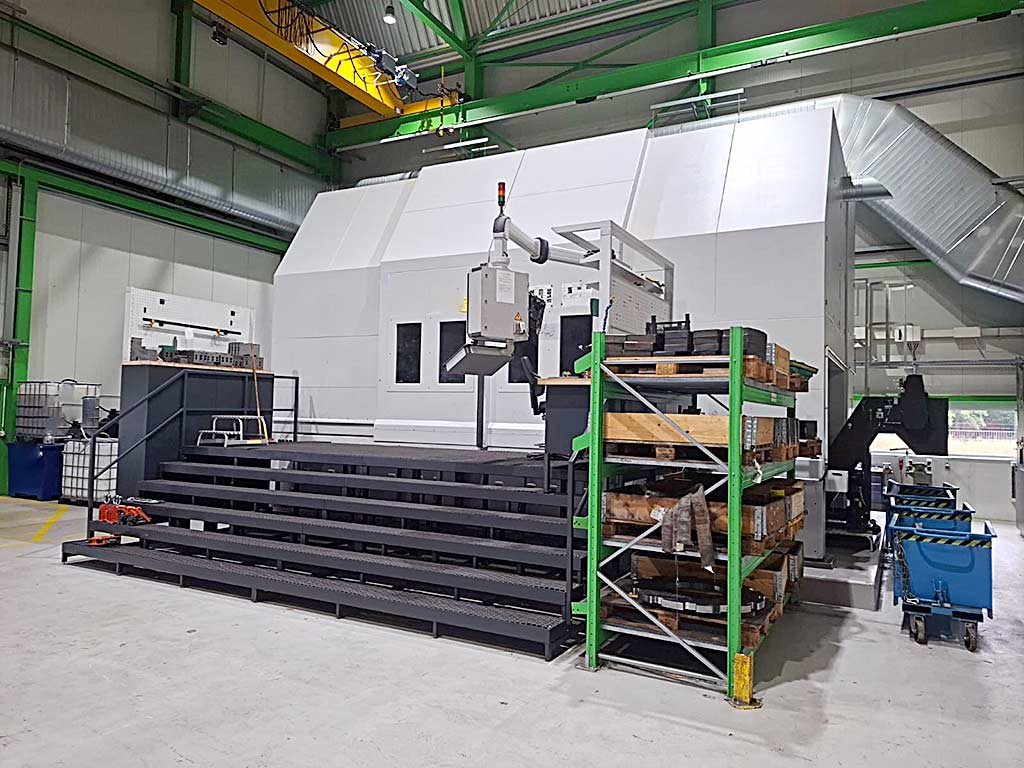

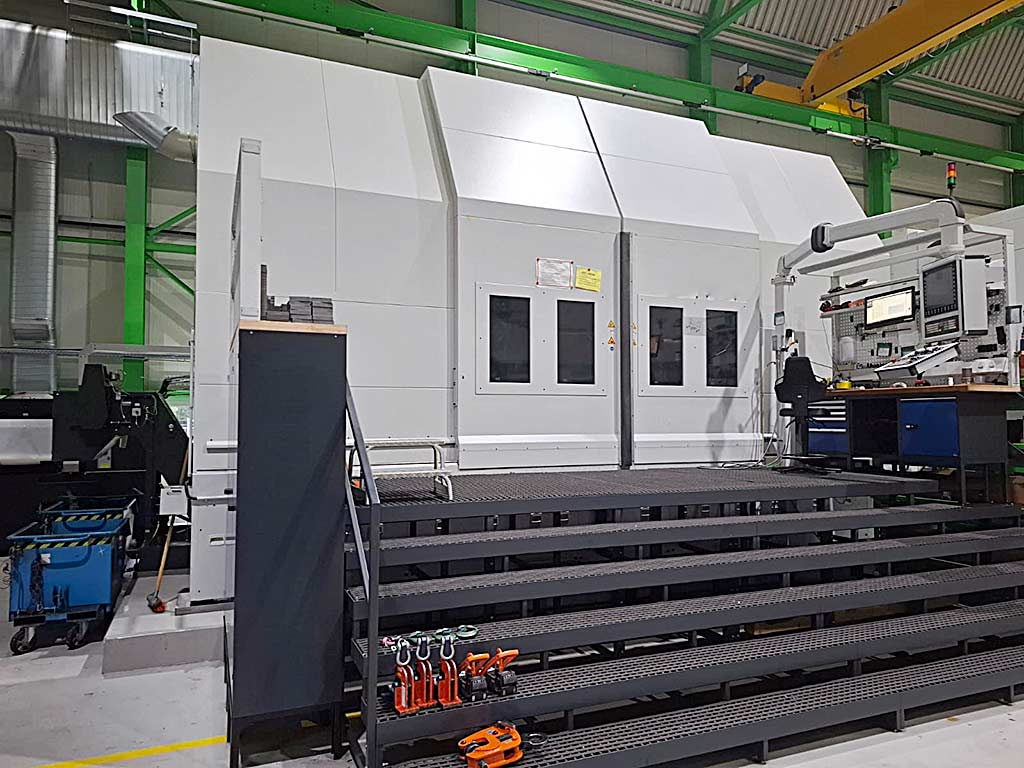

| Description A Pittler CNC large-format vertical lathe is available. Swing diameter: 3000mm, max. workpiece weight: 25000kg, turning diameter: 2800mm, travel X/Y: 2x2700mm/2x1000mm, rapid traverse X/Z: 40m/24m/min, feed force X/Z: 22kN. Spindle flange diameter: 1100mm, face bearing diameter: 800mm, spindle diameter: 360mm, tool positions: 25/41, max. tool diameter: 150mm, max. tool weight: 20kg, max. tool length: 400mm. Pump pressure: 70bar, filtration capacity: 400l/min, water tank volume: 2250l, air capacity: 4000m³/h, extraction nozzle diameter: 350mm. Röhm chuck KFG 2500/3/6/12, outer diameter: 2500mm, height: 400mm, jaw stroke: 50mm, compensation per jaw: +/-6mm, piston stroke: 87.5mm, max. operating pressure: 80bar, max. total clamping force: 182kN, max. speed: 170rpm, jaw width: 70mm, max. weight: 10000kg. Overall system dimensions X/Y/Z: approx. 11400mm/5300mm/5000mm, total weight: approx. 140000kg, control: Siemens Sinumerik 840D sl. Includes Knoll chip conveyor, Knoll KF400/2250 paper band filter, Friess type 1U oil skimmer with tank, and UAS Smog Hog SH-M20 air cleaner. Documentation available. An on-site inspection is possible. |
|
| Make | Pittler |
|---|---|
| Model | PV2500/1-2 |
| Year of manufacture | 2021 |
| Price | On application |
| Offer No | INNO29925 |
