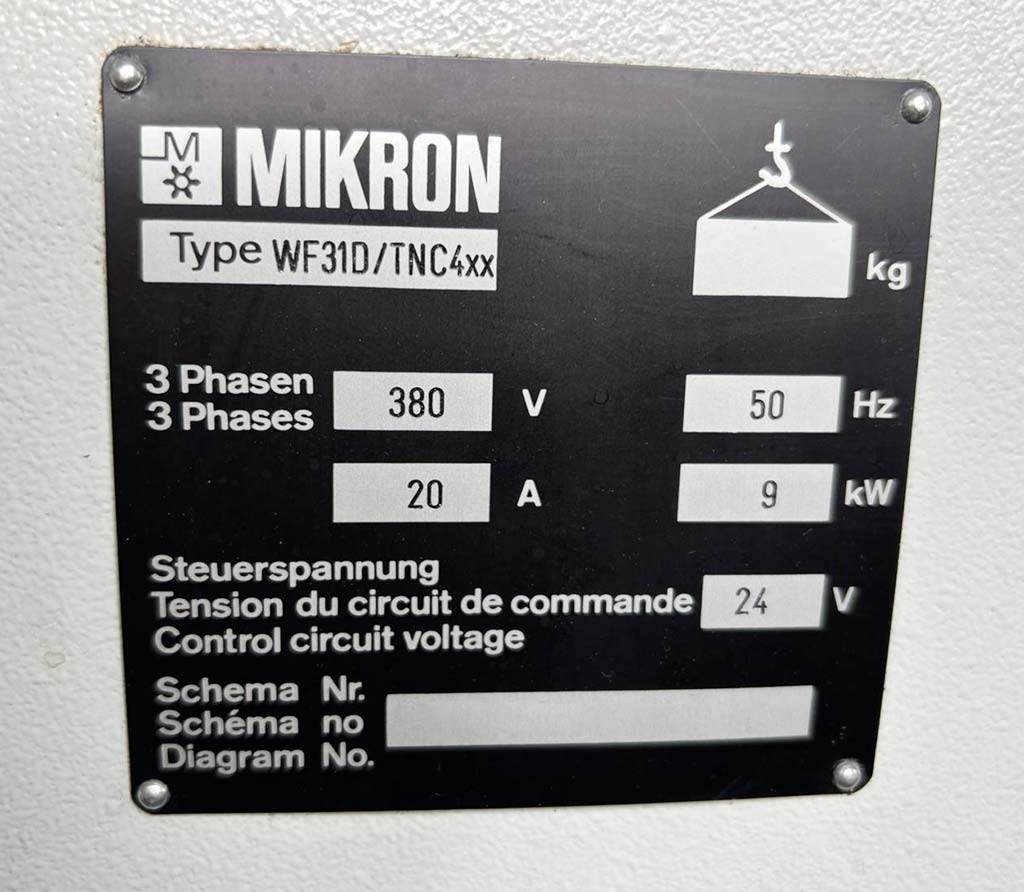

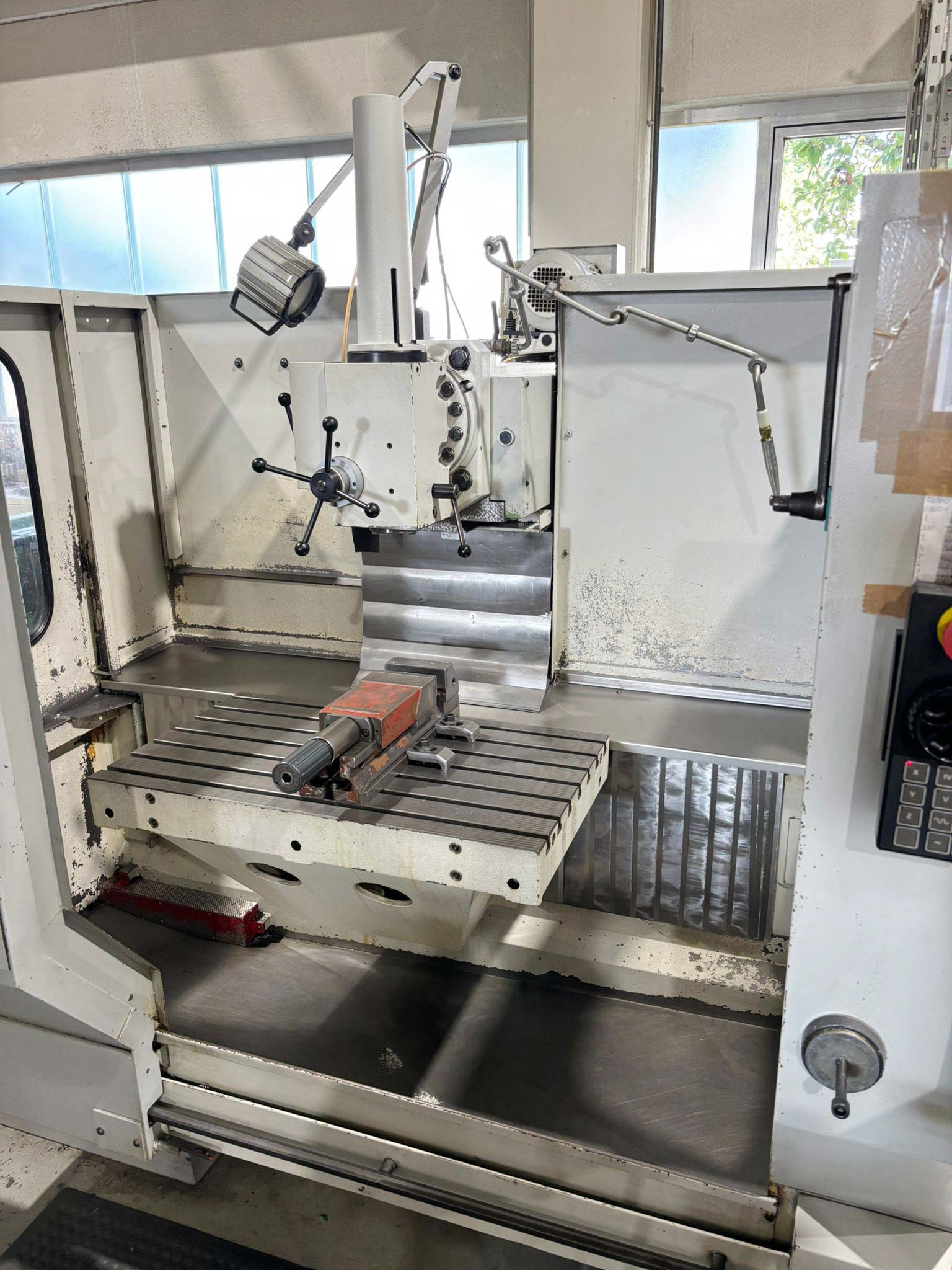

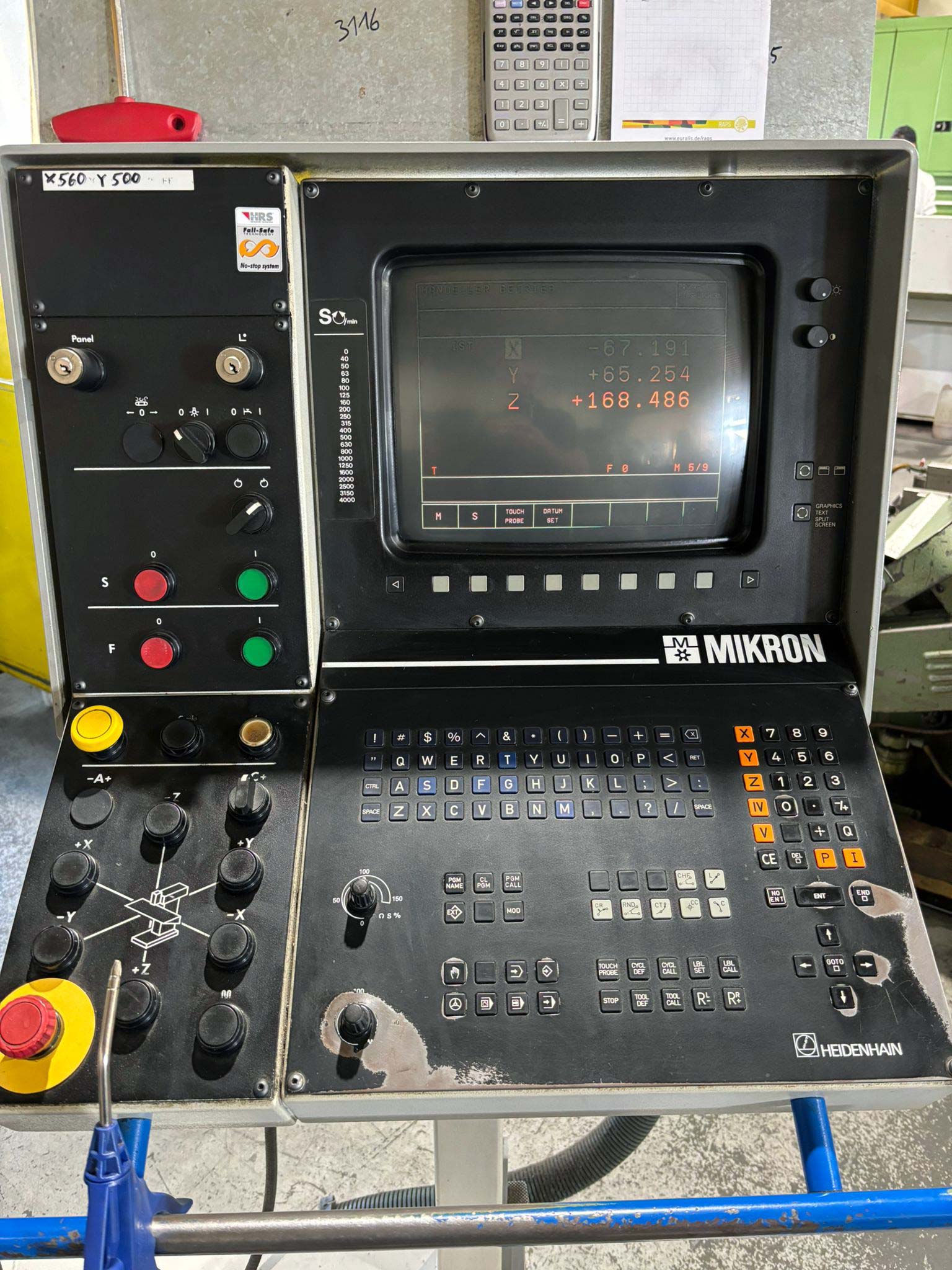

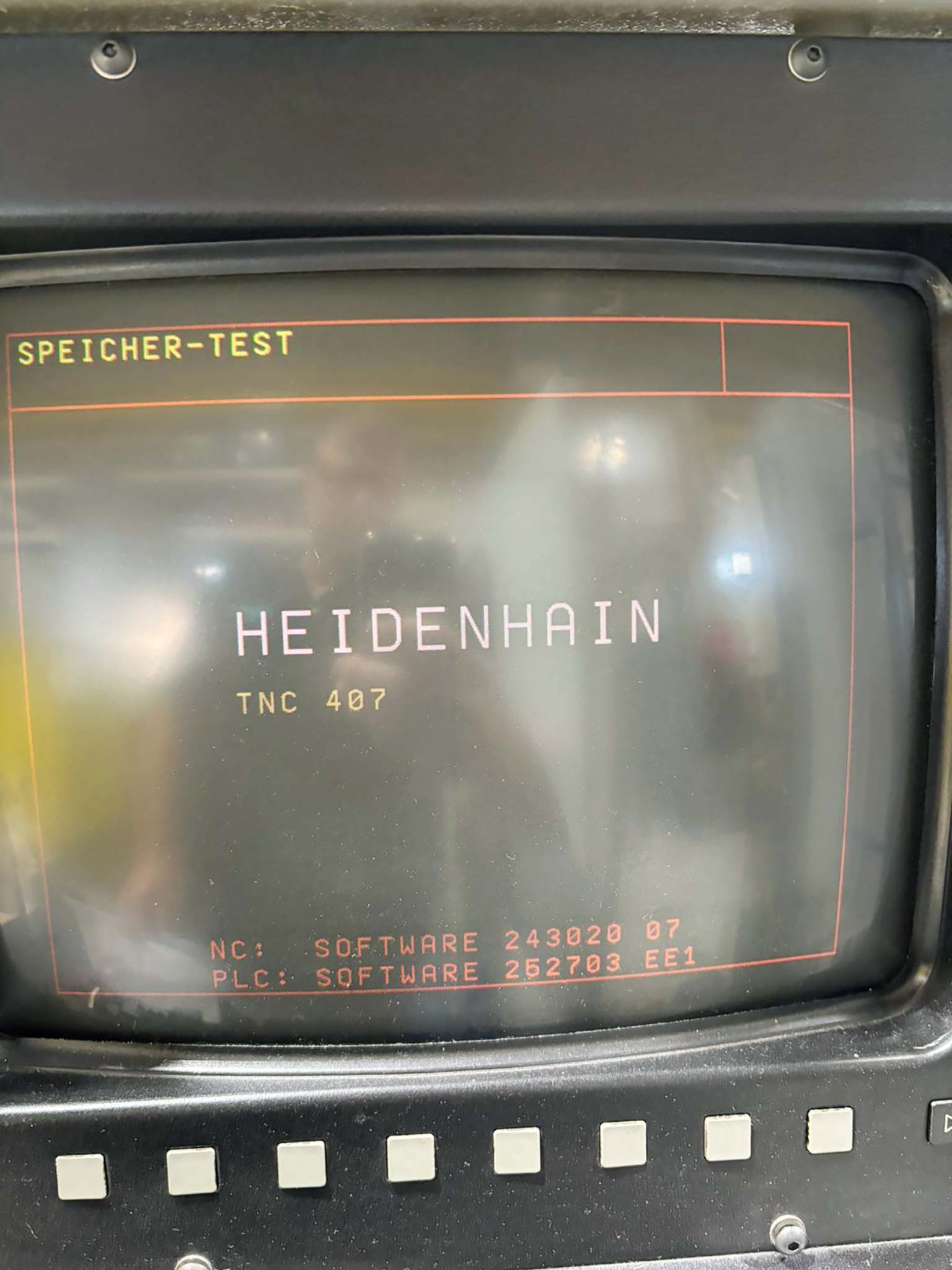

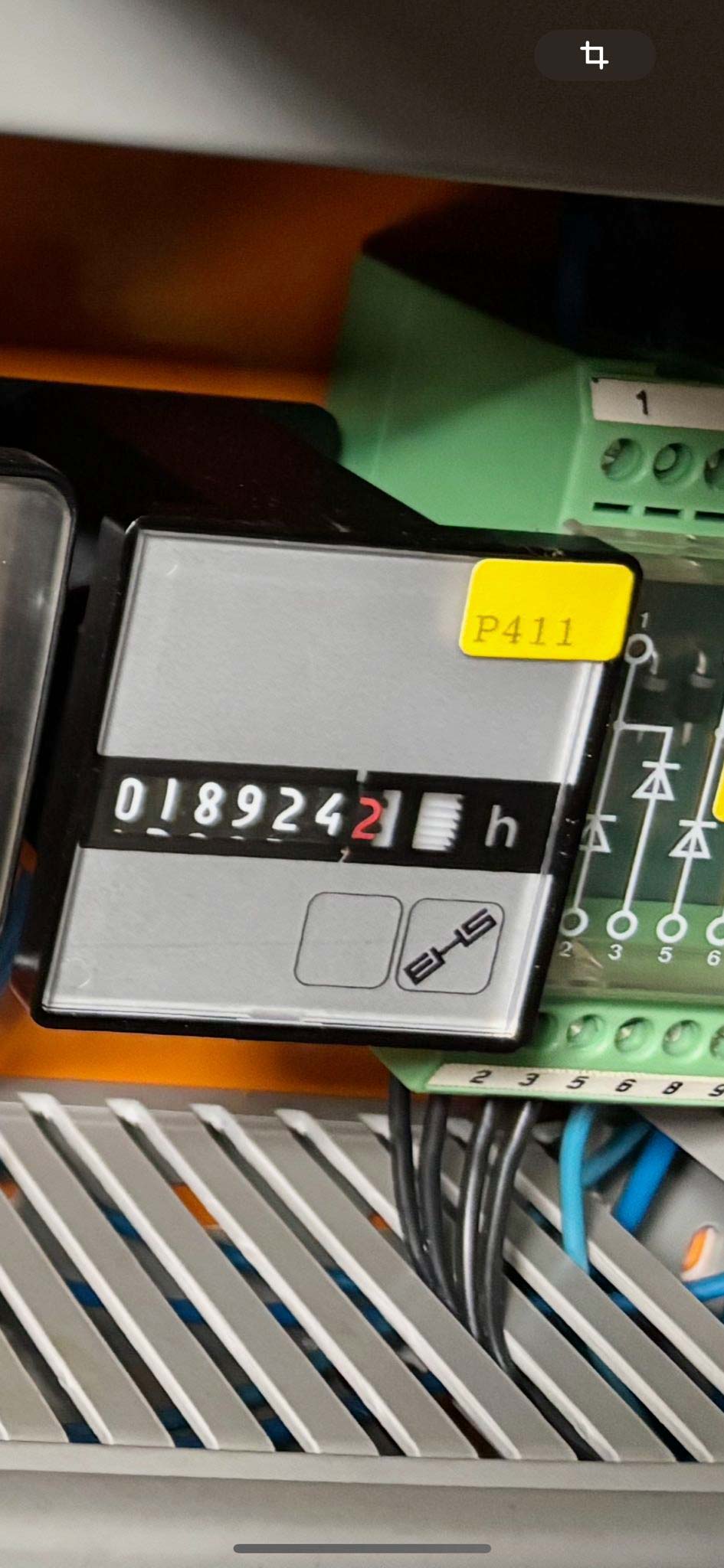

| Description X-axis: 560mm, Y-axis: 500mm, Z-axis: 400mm, clamping table dimensions vertical: 300/450mm, number of threaded holes: 2/6, threaded hole spacing: 45mm, thread: M16, angle table clamping surface: 460/800mm, number of T-slots: 7, T-slot spacing: 63mm, T-slot width: 14mm, max. workpiece weight (recommended): 350kg. Milling spindle drive number of working spindle speeds: 21, speed (geometrically graduated): 40-4000/min, step increment: 1.259, spindle motor power: 3.3/4kW, tool holder: ISO 40 / M16 with draw-in groove, vertical quill stroke: 90mm, feed in all 3 axes steplessly adjustable: 2-3000mm/min, rapid traverse X-axis and Y-axis: 6000mm/min, rapid traverse Z-axis: 4000mm/min, feed motor torque longitudinal and transverse: each 3.5Nm, feed motor torque vertical: 7Nm, control: Heidenhain TNC 407, connected load: 8.7kW, length: 3705mm, width: 2430mm, height: 3100mm, weight of the machine with vertical milling head and angle table: 2410kg, weight of the crate base: 170kg, weight of the transport crate: 400kg, operating hours: 18,924h. Accessories: 3D probe, 20x tool holders, splash guard cabin, coolant pump, work light, handwheel, machine documentation. An on-site inspection is possible. |
|
| Make | Mikron |
|---|---|
| Model | WF 31D |
| Year of manufacture | 1992 |
| Price | On application |
| Offer No | INNO29898 |
