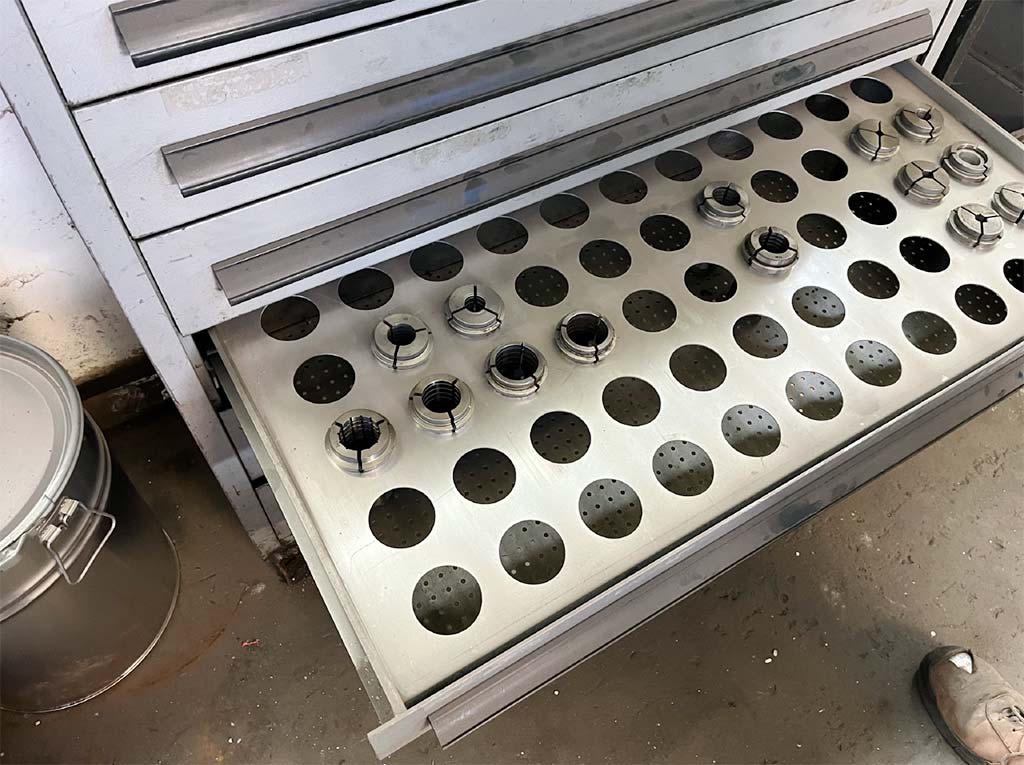

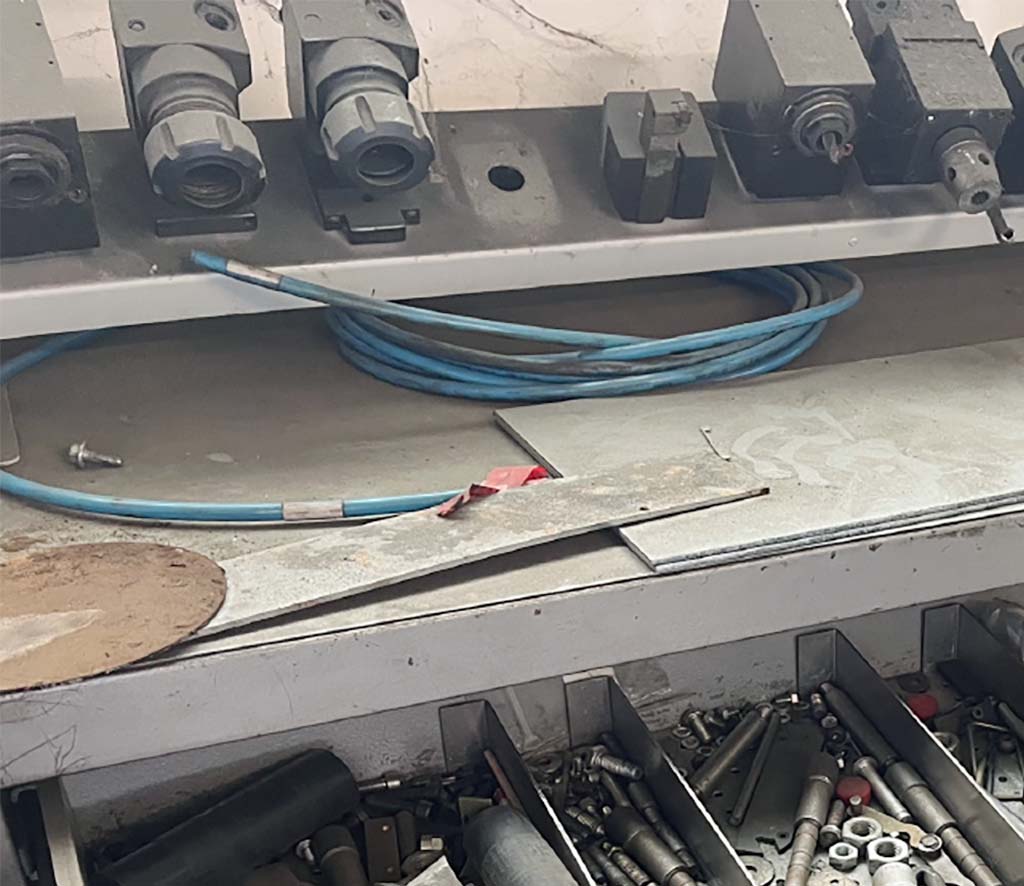

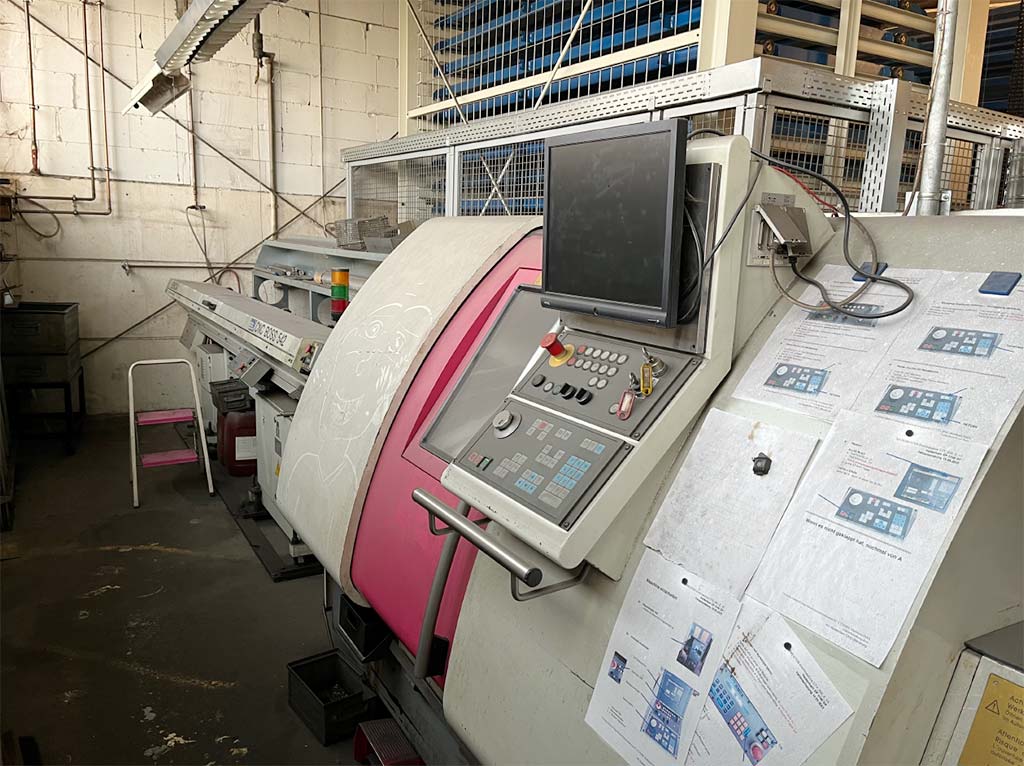

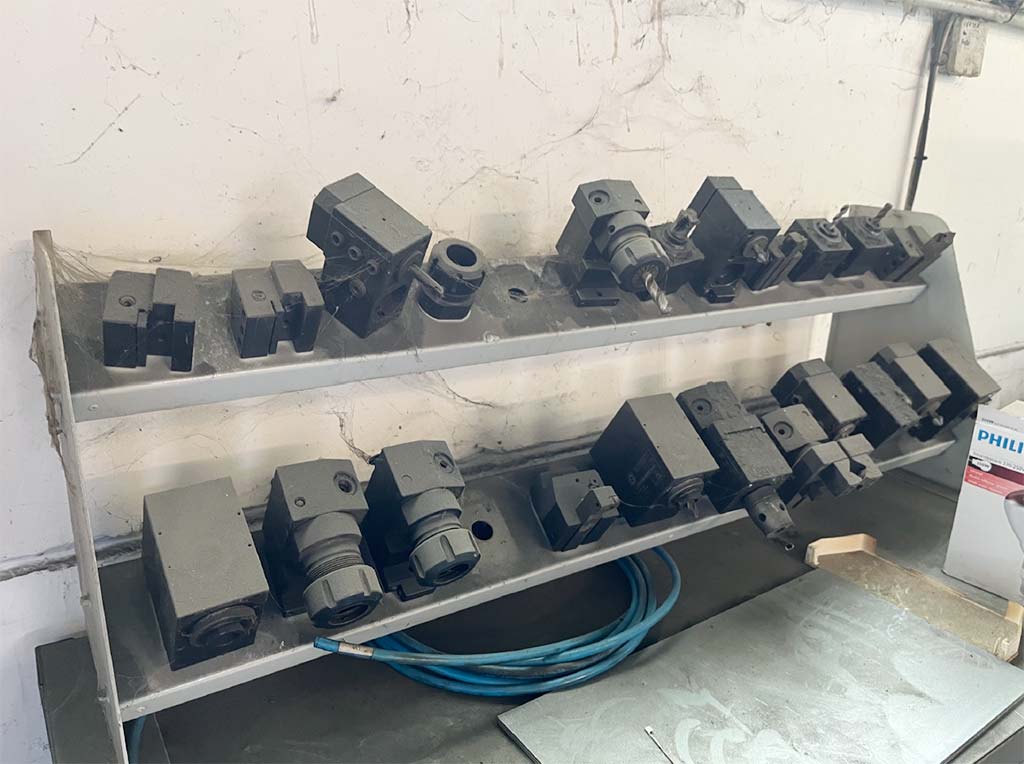

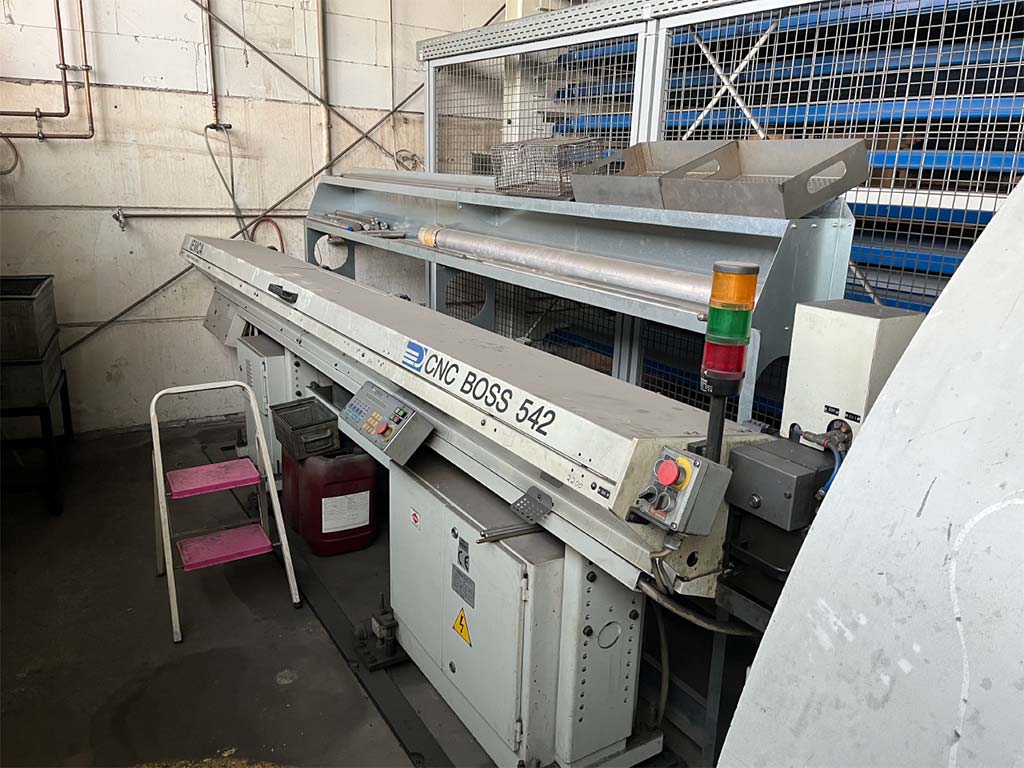

| Description Base machine CTX 200E with driven tools, C-axis and 1x back working. Includes DATAPILOT software package TurnPlus, cooling unit for control cabinet, hinge belt chip conveyor, discharge height: 1100mm including coolant tank, tool holder set for universal disc turret with tool holders for external machining, boring bar holders, tools with cylindrical shank holders, sealing plugs, reducing sleeves. Bar gripper, axial complete, workpiece pick-up device, tool spindles 3x axial for drilling/milling/tapping, 1x radial for drilling/milling/tapping, 1x for saw blades, collet chuck complete for main spindle, collet chuck complete for counter spindle, 17x DIN collets 173E round Ø 3-40mm, 2x DIN collets 173E, hex SW 7 and 12mm, 2x DIN collets 173E, square SW 8mm. Bar loading magazine IEMCA BOSS 542/32, guide channel set LW 13, additionally for IEMCA BOSS 542, 13x guide jaws for bar loading magazine IEMCA BOSS 542/32, Ø 8-41mm. With complete documentation. The machine has been idle for one year as the turret head is missing, no further defects known, operating hours unknown, without maintenance records. With bar loader and numerous tools. |
|
| Make | Gildemeister |
|---|---|
| Model | CTX 200E |
| Year of manufacture | 1998 |
| Price | On application |
| Offer No | INNO29818 |
