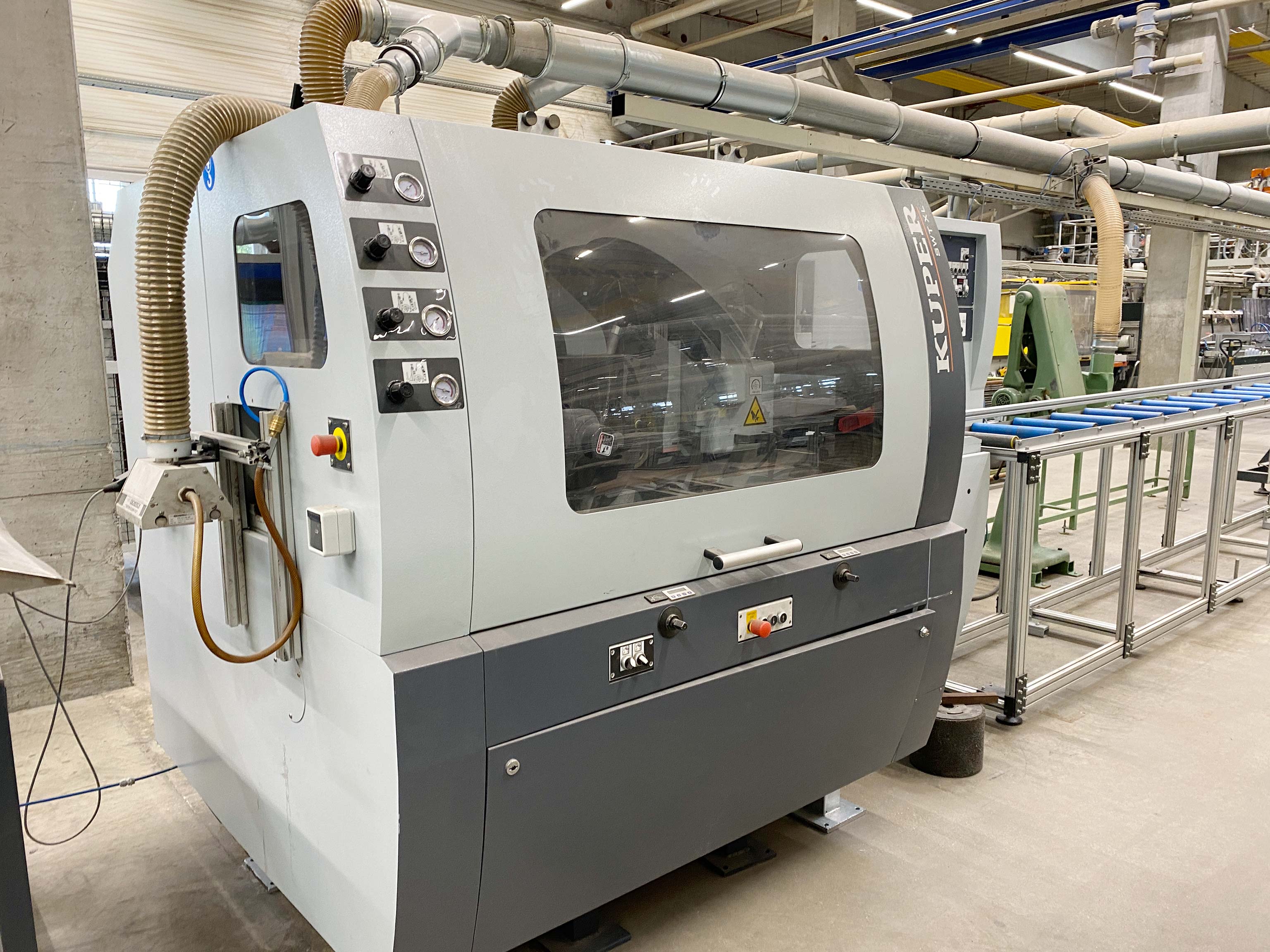

| Description Working width (with tool diameter 125mm): 15-230mm, working height (with tool diameter 125mm): 10-150mm, minimum workpiece lengths: min. single piece: 800mm, min. piece by piece: 300mm, spindle arrangement: top, top, 1st spindle (horizontal top): Siemens IE3 motor with inverter brake 7.5kW (10 HP), diameter: 40mm, spindle length: 235mm, speed frequency-controlled: 4000-6000/min, tool cutting circle: 112-200mm, axial adjustment: 20mm, pressure shoe: pneumatic, dynamically adjustable, standard profile depth: 20mm, suction nozzle diameter: 125mm, suction: individually adjustable, tool clamping system: Pro-Lock. Feed system: chain system, each roller unit with its own gearbox and cardan shaft, feed motor with electronic brake 4kW (5 HP), digital display feed speed: 6-24m/min, motorized height adjustment of the feed carrier, two driven infeed rollers before the first lower spindle, pneumatically selectable up/down, roller spacing shortened by feed cassette, tool change swing-away. Machine electrics: 400V/ 3 phases/ PE, main switch: 3-pole, 50Hz, IP 54, installation according to current standards. Machine frame/tables: heavy machine frame, torsion-free and low-vibration, all machine tables hard-chromed, infeed and outfeed table: driven, double-bearing table roller. Manual lubricant pump additional equipment (selection): motorized radial adjustment of the upper spindles, reset button in the control cabinet, support table 1100mm, right-hand support fence with guide rollers, roller spacing 100mm, infeed funnel on the support table: feed speed 2-18m/min adjustable via potentiometer. Additional feed rollers in the infeed area, rubber-coated feed rollers instead of steel rollers, extended side pressure, max. spindle speed: 9000/min (high-performance bearings), pressure lips pneumatically sprung and adjustable, spindle motor power: 11kW, relay control of the machine: automatic shutdown in case of fault. Operating hours: under 500h. With documentation, an on-site inspection is possible. |
|
| Make | Kuper |
|---|---|
| Model | SWT XL-2 |
| Year of manufacture | 2021 |
| Price | On application |
| Offer No | INNO29817 |
