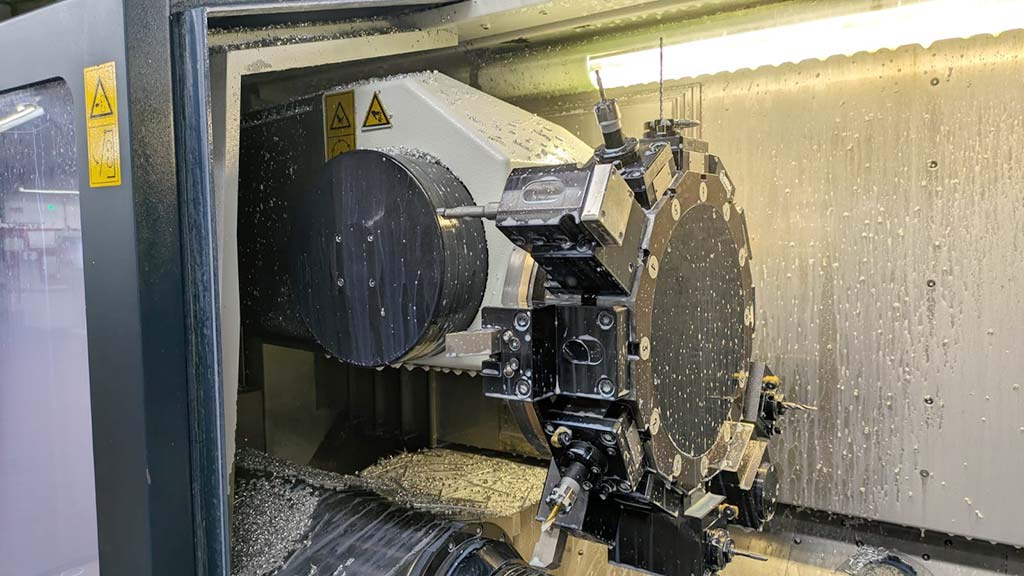

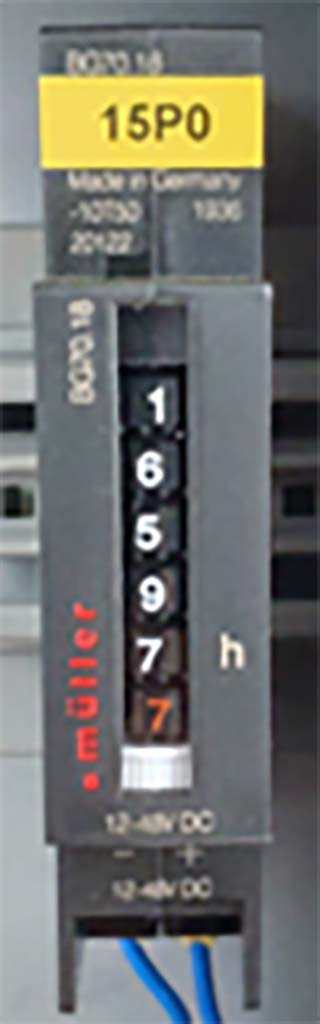

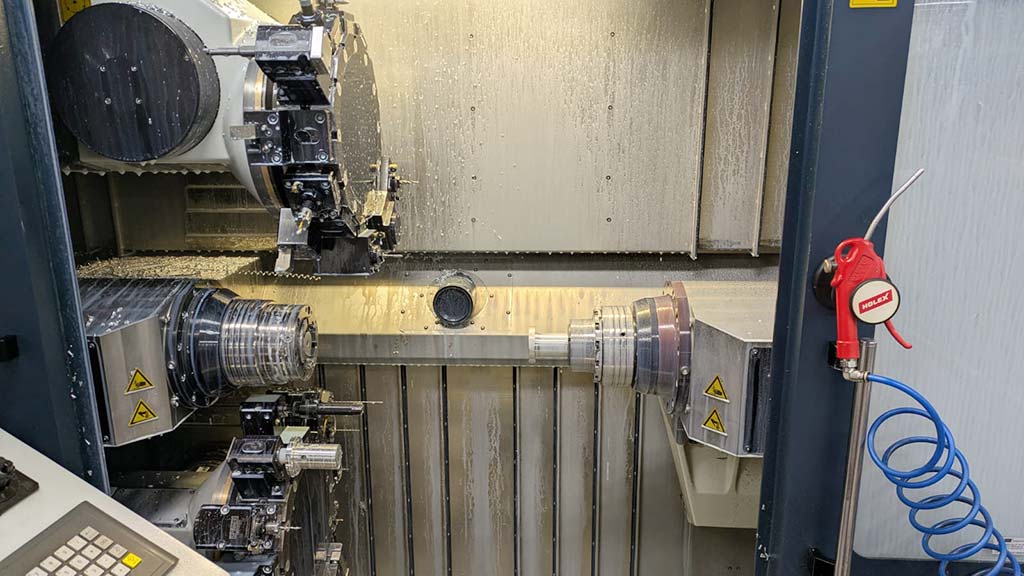

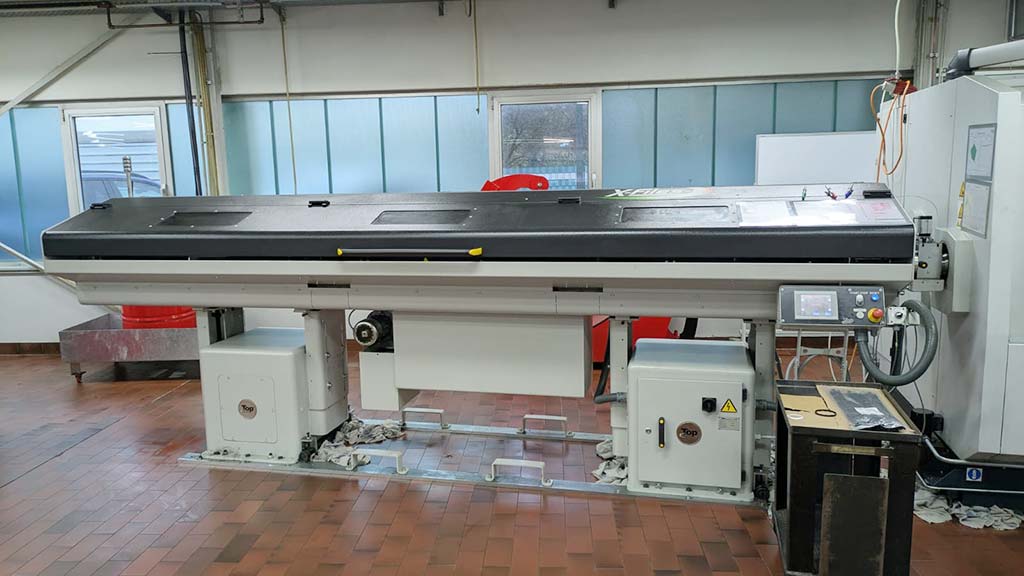

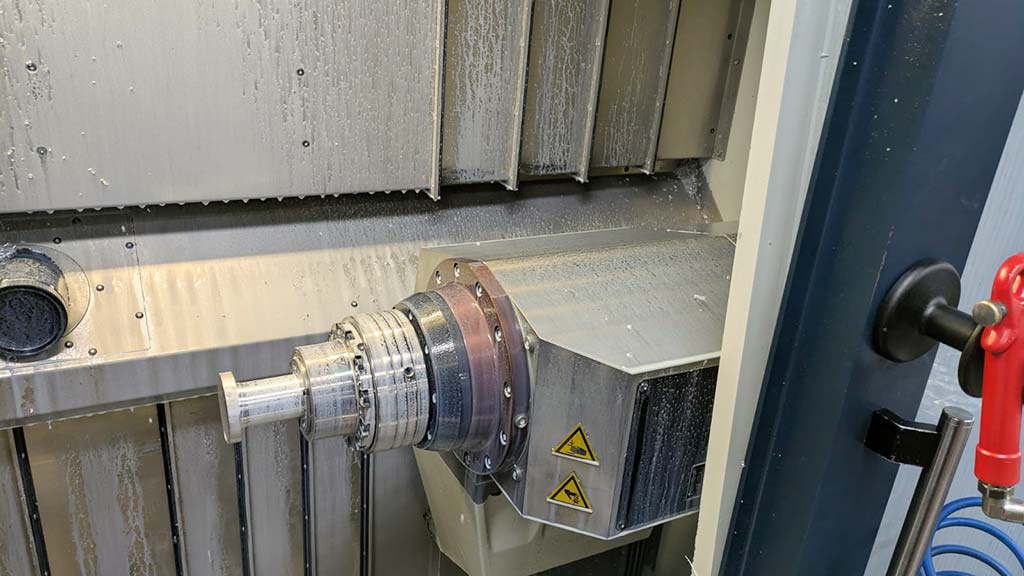

| Description X1-/ X3-axis: 180mm, X2-axis: 180mm, Y1-/ Y3-axis: ±45mm, Z1-/ Z3-axis: 704mm, Z2-axis: 620mm, E2-axis: 720mm, rapid traverse X, Y, Z-axis: 30m/min, spindle 1: max. speed: 5000/min, spindle bore: 65mm, chuck diameter: 210mm, spindle 2: max. speed: 7000/min, spindle bore: 42mm, max. chuck diameter: 140mm, spindle nose diameter: 110mm, max. chuck jaw weight: 1.25kg, number of stations: 2x12, number of driven tool stations: 2x12, max. speed: 8000/min, power S3 25%: 4.3kW, torque S3 25%: 13.6Nm. Length: 2880mm, width: 2130mm, height: 1990mm, weight: 7.5t, operating hours: 16,597.7h. Including bar feeder Top Automazioni X-FILES S, year of manufacture 2020, 4x tool holders, straight, left-right square mount, external coolant, 4x machine interface: BT45A, 1x milling head 90°/BMT 45 Spinner, angled milling head/ BMT45/ ESX-25 right and left twin-spindle, Spinner flat coupling, ER25 max. speed: 6000/min, i=1:1, raised design with center distance 85mm, 1x cut-off holder, rotation direction universal, external coolant. Regularly maintained, maintenance records available, an on-site inspection is possible. |
|

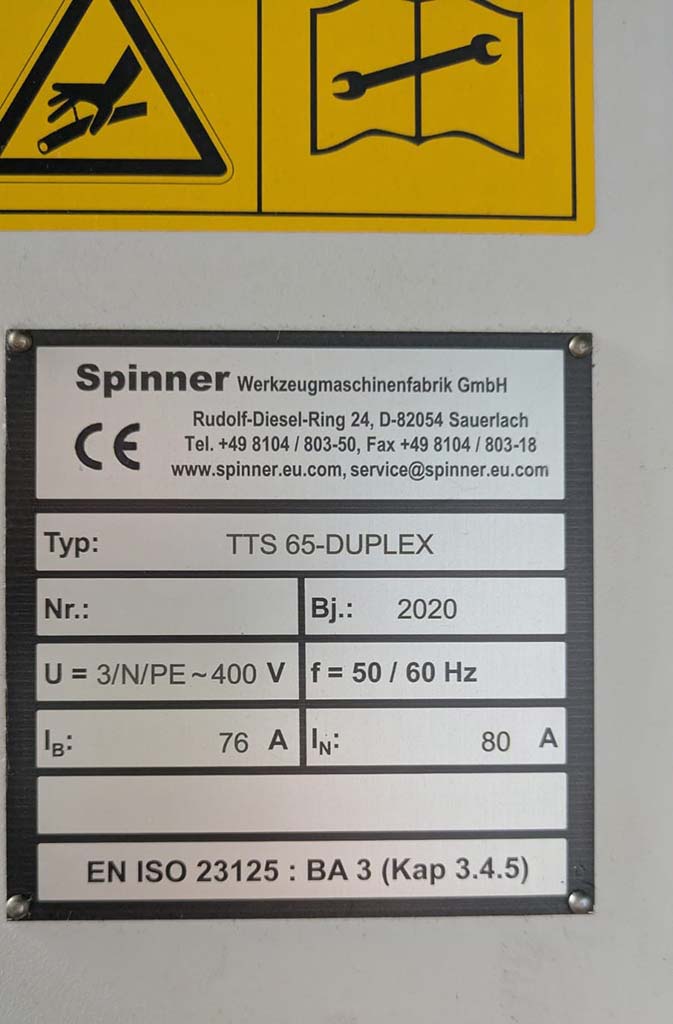

| Make | Spinner |
|---|---|
| Model | TTS 65-DUPLEX |
| Year of manufacture | 2020 |
| Price | On application |
| Offer No | INNO29791 |
