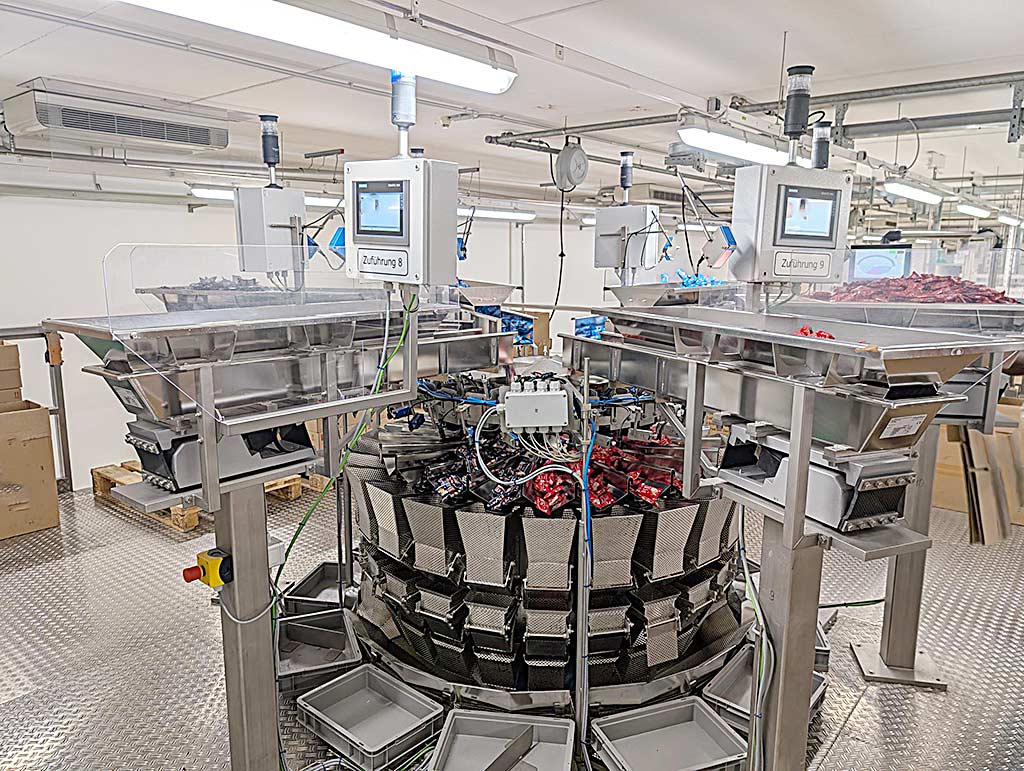

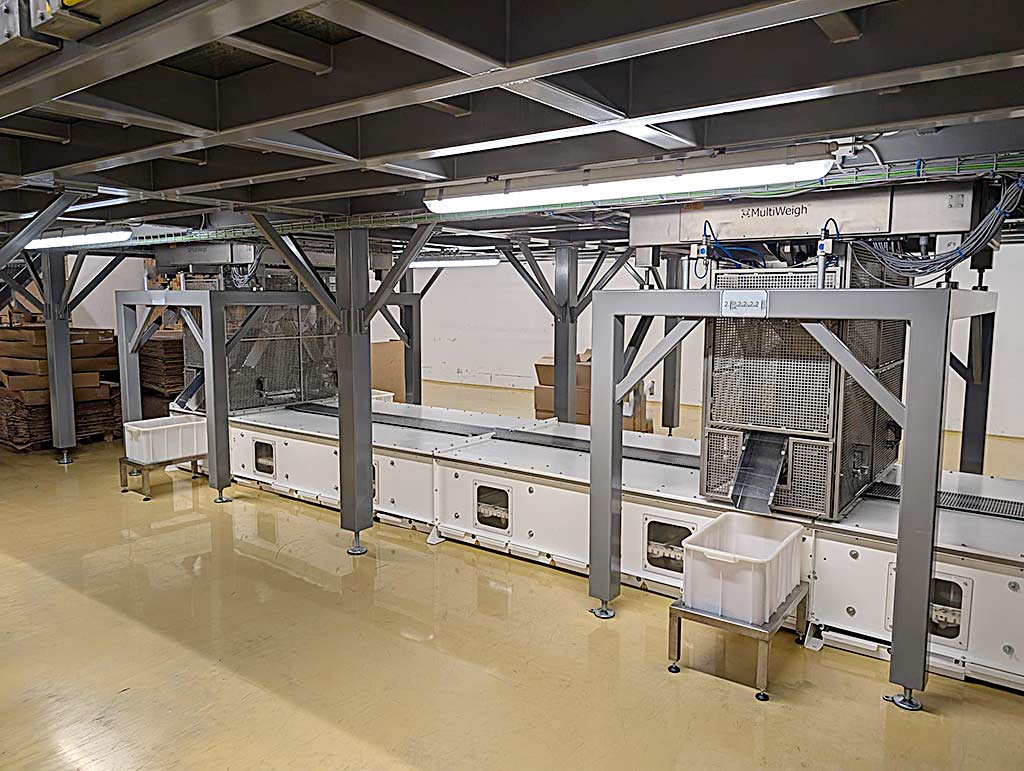

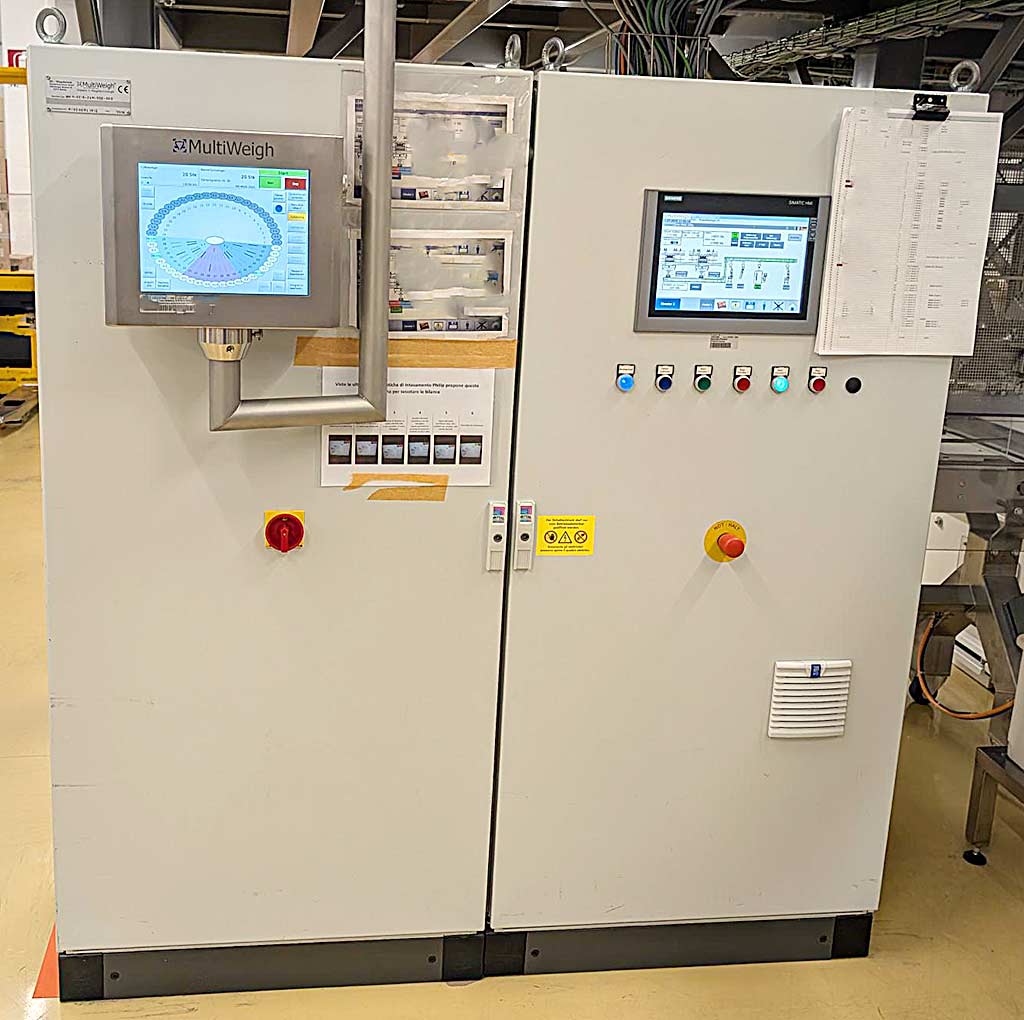

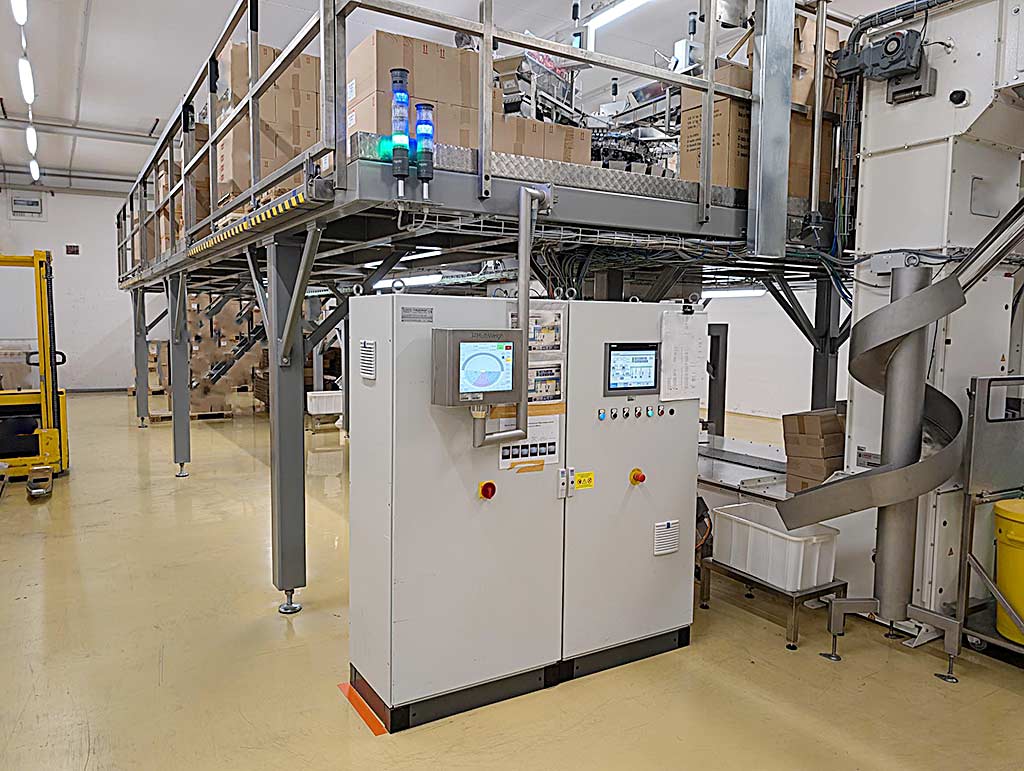

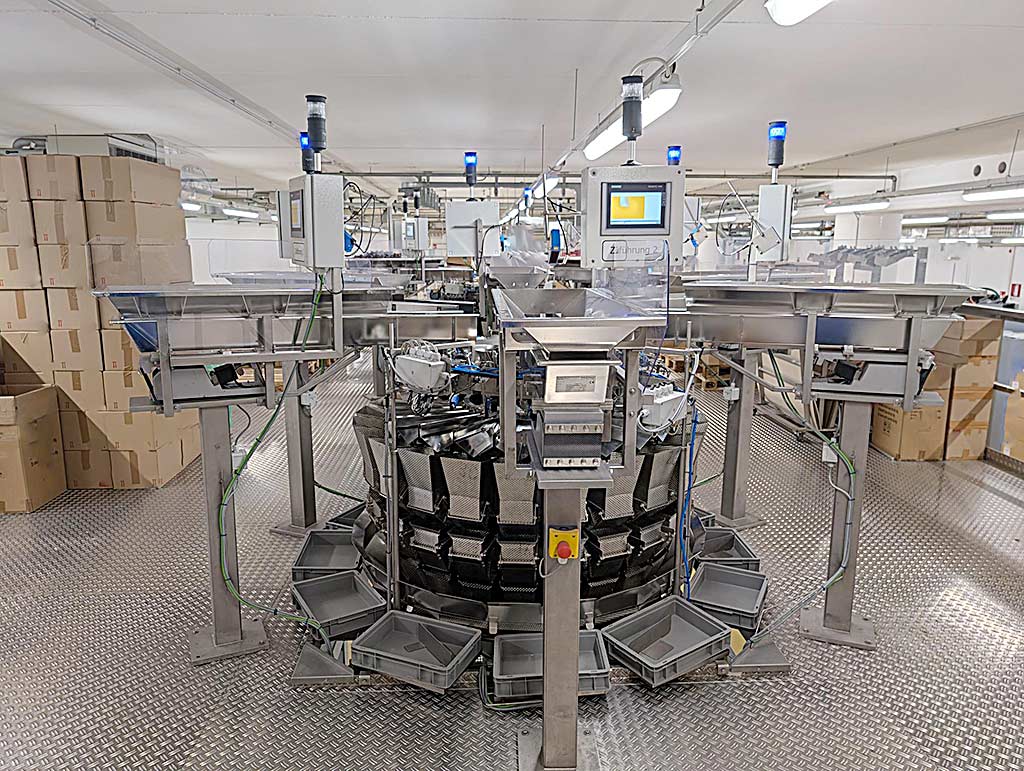

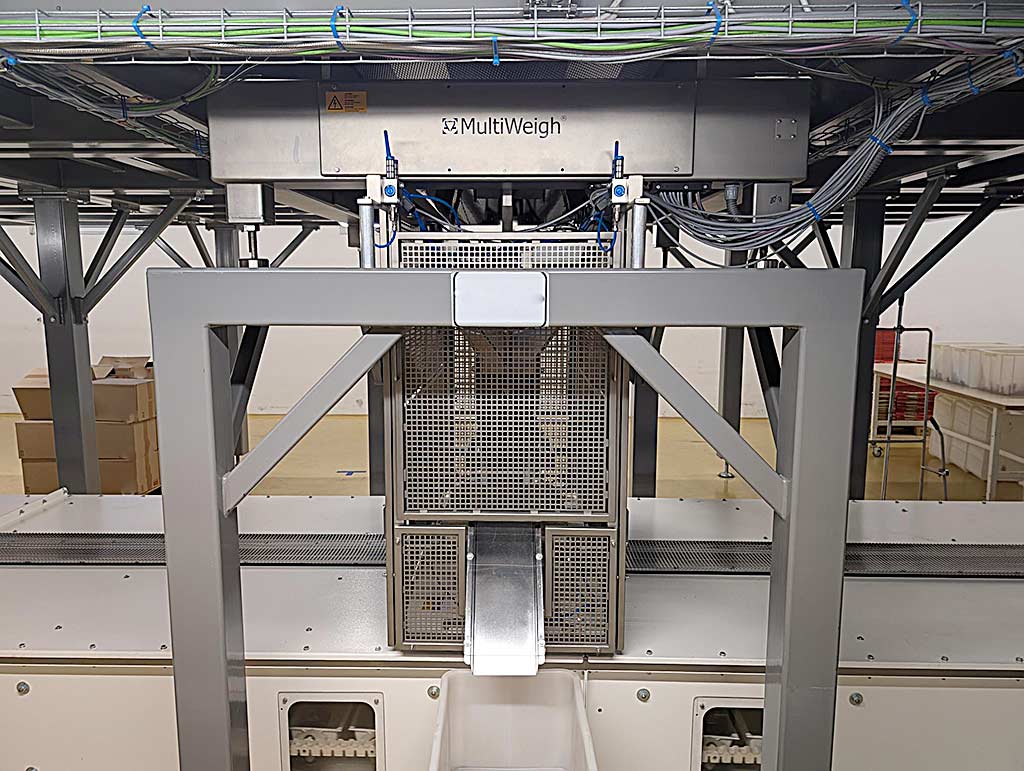

| Description A mixing system for mixing pre-packed individual products (flowpacks) for manual filling or packaging lines is available. Components: Scales, bucket elevators, conveyor chutes and a platform. Mixing components: 2x6 (12), cycle output: 2x40 (80), discharge points: Bucket elevators, bucket elevator positions: 4, total system dimensions X/Y/Z: approx. 22850mm/7200mm/4750mm, total system weight: approx. 7600kg. 1) 2x high-performance combination weigher HD-Wiegetechnik MultiWeigh, cycle capacity: 45/min, weighing range: 1000g/discharge, discharge volume: 3500cm³, weighing system: 2-beam strain gauge, resolution: 0.5g, machine dimensions X/Y/Z: approx. 2200mm/2200mm/2100mm, weight: approx. 1350kg. 2) 2x Pendelbecherwerke Wiese Förderelemente GmbH, conveying medium: rubber chains with buckets. 3) Walk-on platform (platform) Wiggenhauser, material: S235JR, max. deformation: 4.2mm, load capacity of scales: 1720kg, load capacity of platforms: 11550kg. This is a complete system with central switch cabinet. Documentation available. On-site inspection is possible. Expected to be available from summer (approx. August) 2026. |
|
| Make | Hd-wiegetechnik |
|---|---|
| Model | MW 2016-24-1-M-6-MIX |
| Year of manufacture | 2016 |
| Price | On application |
| Offer No | INNO29584 |
