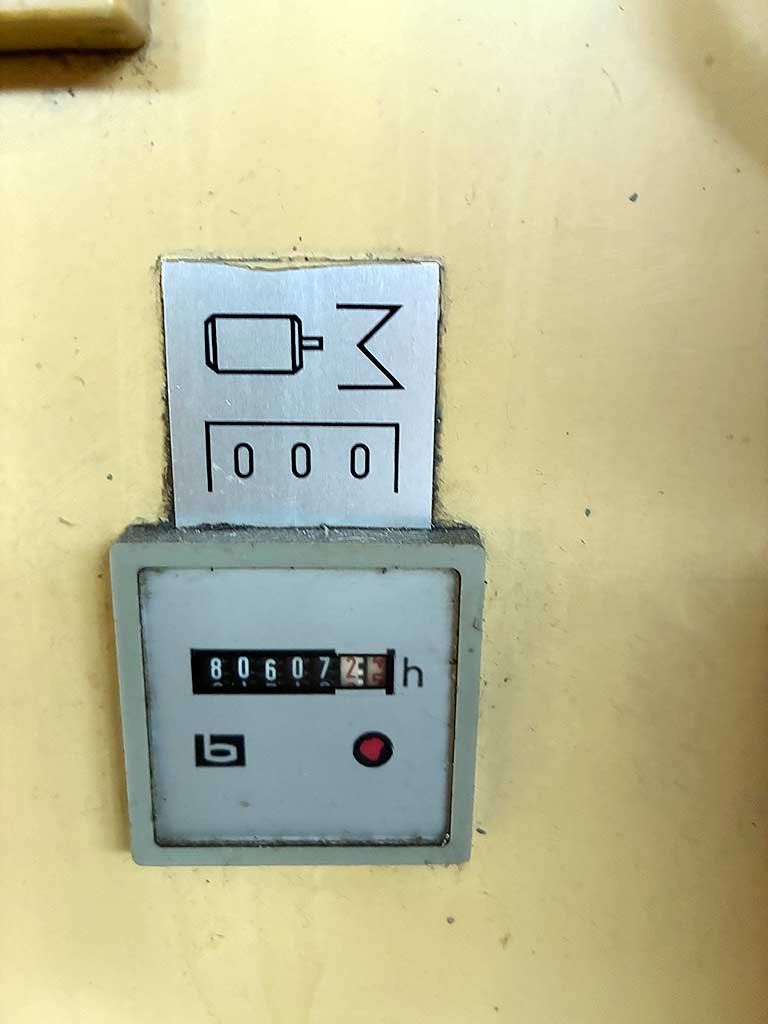

| Description Turning diameter over bed/face slide: 560mm/250mm, spindle bore: 65.3mm, chuck diameter: 250mm, torque: 1680Nm, speed: 2240rpm, feed X/Z: 8m/5m/min, rapid traverse X/Z: 8m/5m/min, spindle diameter: 110mm, center height: 272mm, bed width: 360mm, slide width: 225mm, slide length: 902mm, center width: 1000mm, quill diameter: 100mm. Machine dimensions X/Y/Z: approx. 3750mm/4050mm/1800mm, control: Heidenhain EPL 1, operating hours: 80607h. Documentation available. On-site inspection is possible. |
|

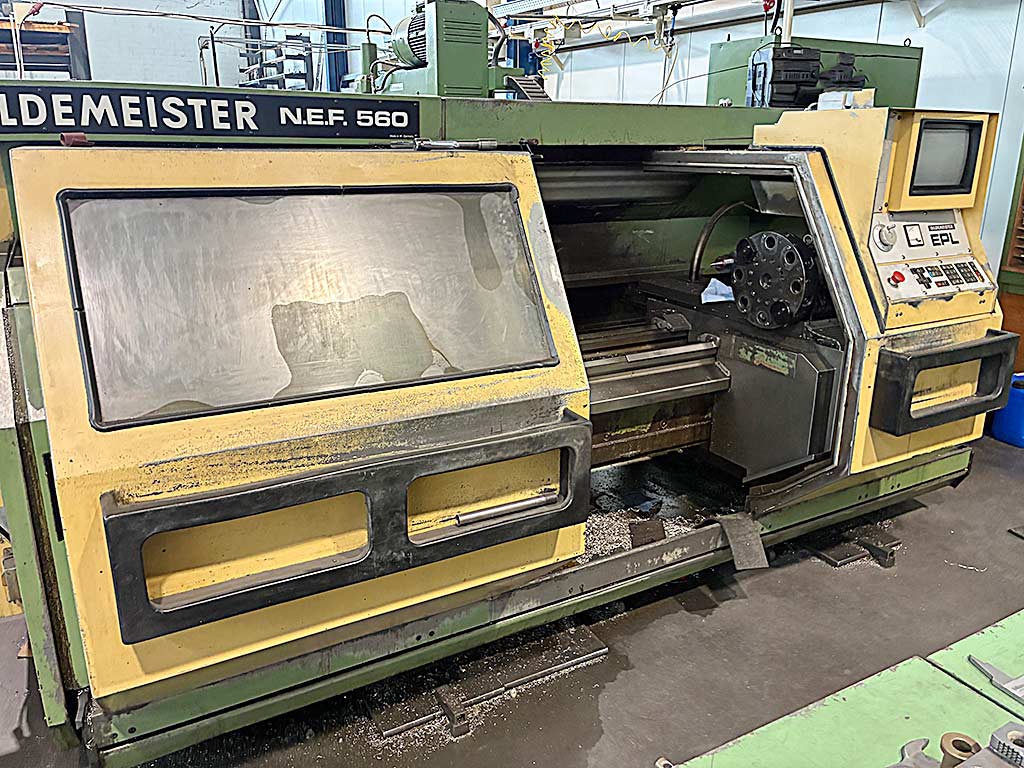

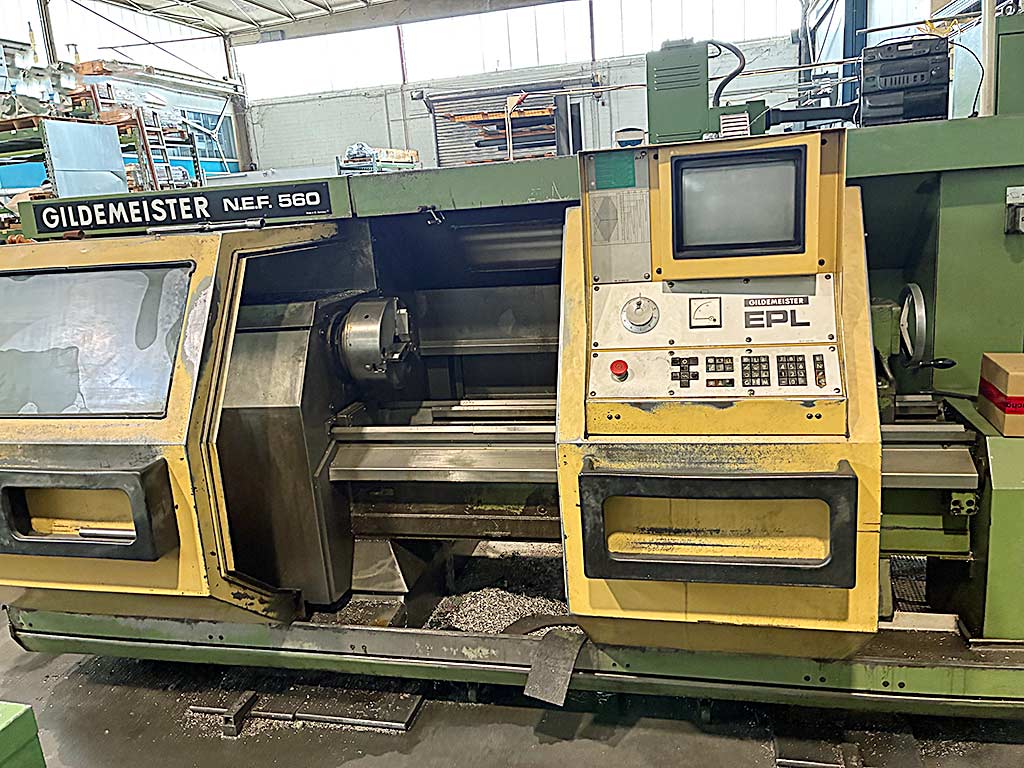

| Make | Gildemeister |
|---|---|
| Model | NEF 560 |
| Year of manufacture | 1985 |
| Price | On application |
| Offer No | INNO29552 |
