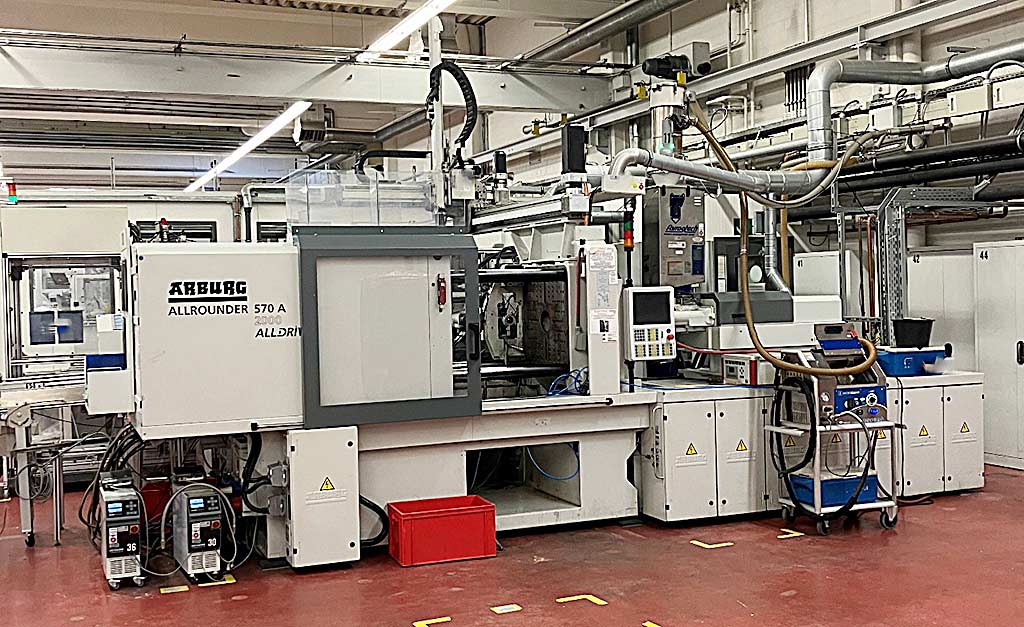

Silicone Injection Moulding Machine Arburg Allrounder 570A 2000-290/170
Offer No.  INNO29399
Description

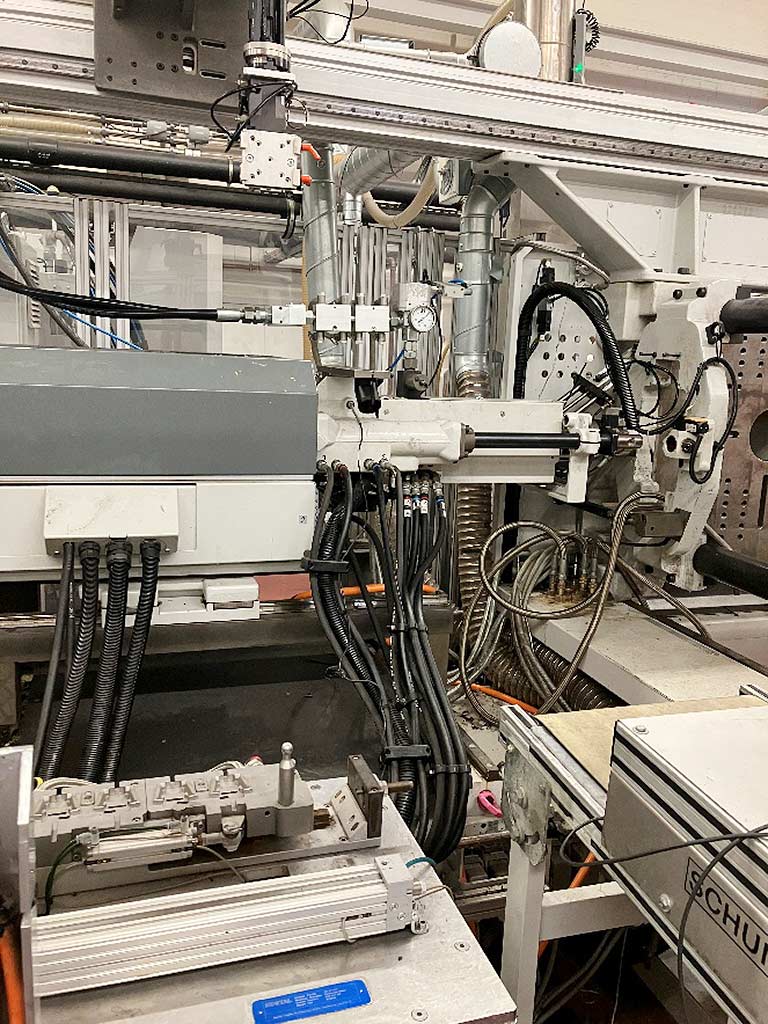

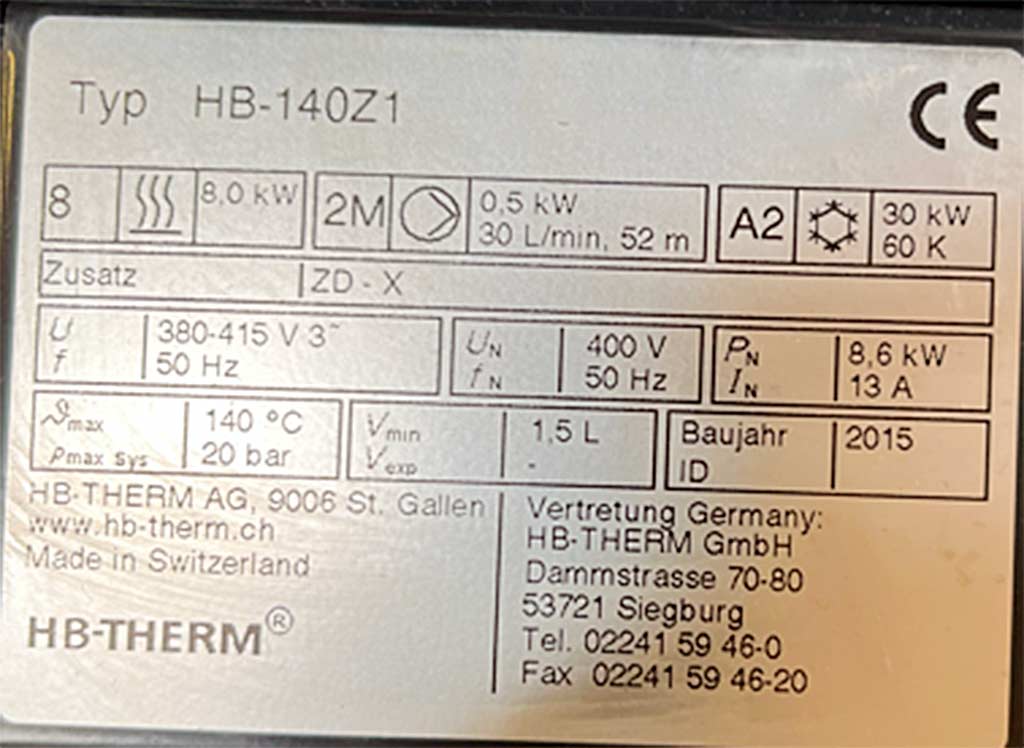

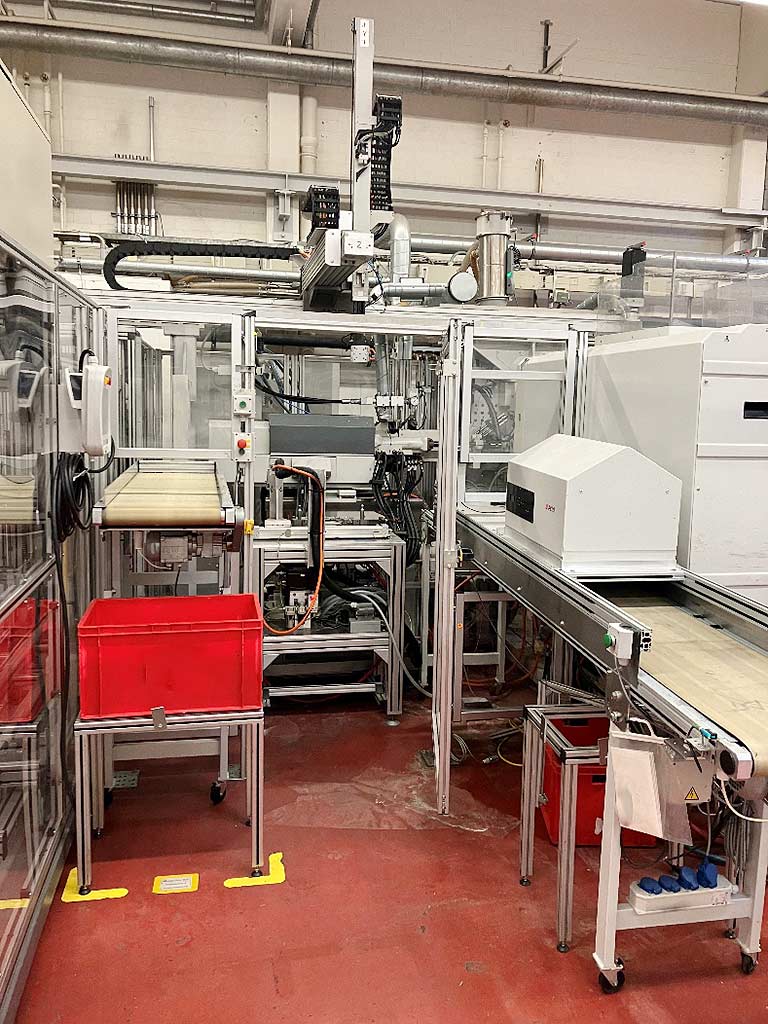

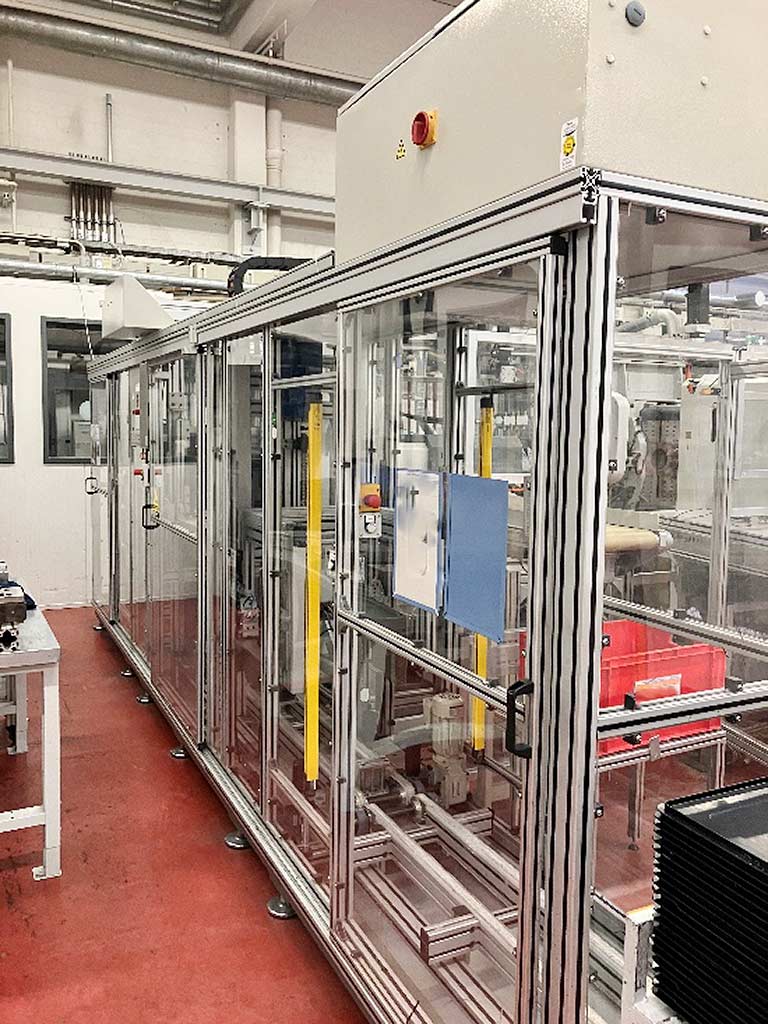

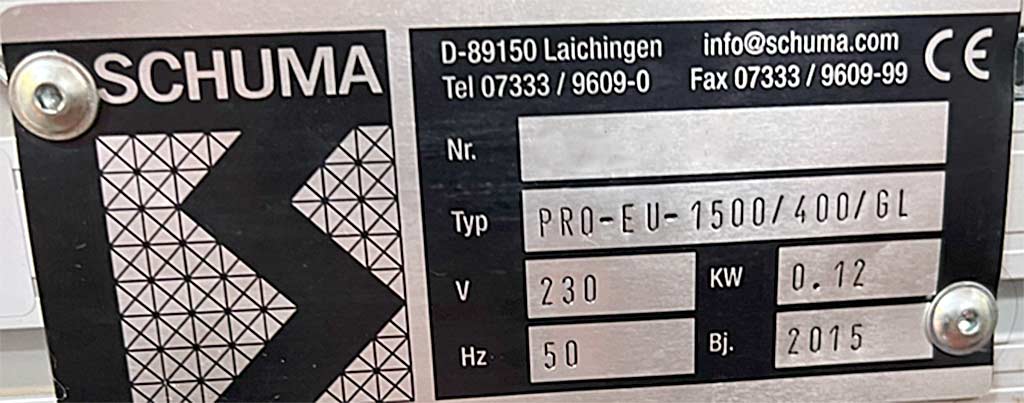

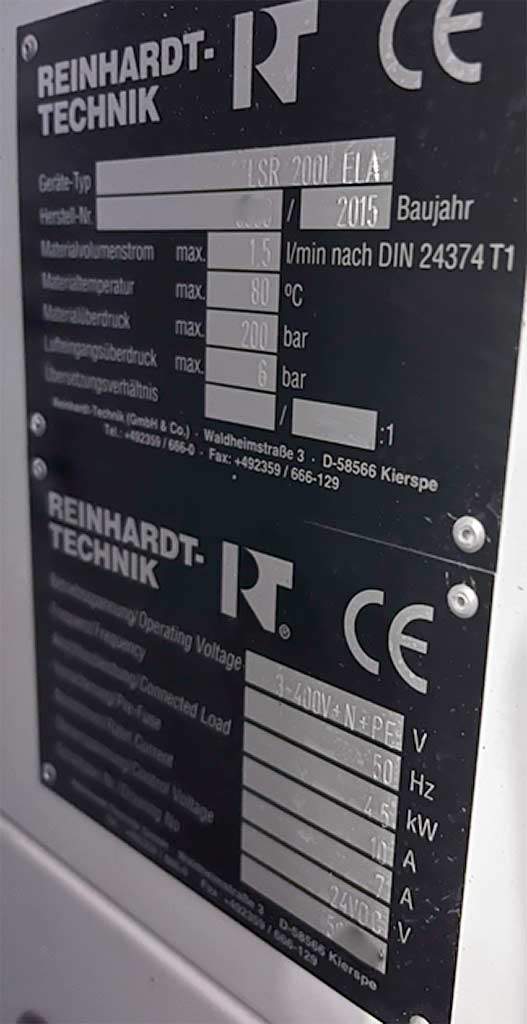

A complete injection molding facility for silicone is available. 1) Arburg Allrounder injection molding machine with silicone injection unit, total connected load: 99kW, operating hours: approx. 51847h. 2) Linear robot Arburg MultiLift V. 3) Liquid silicone dosing system Reinhardt LSR 200L ELA, year of manufacture: 2015, material throughput: 1.5l/min, max. material temperature: 80°C, max. material pressure: 200bar, mixing ratio: 1:1. 4) Thermoregulator HB-Therm 140Z1, year of manufacture: 2015, heating capacity: 8kW, flow rate: 30l/min, max. system pressure: 20bar, max. temperature: 140°C, tank volume: 1.5l, design: IZD-X, distributor: 4-way. 5) Material dryer FarragTech CARD40M, material: silicone granulate, capacity: 40kg/h. 6) Control unit & plasma nozzle PlasmaTreat. 7) Conveyor belt PRO-EU-1500/400/GL, length: 1500mm, width: 400mm, function: parts transport after removal. 8) Conveyor belt with air flow Spectec PRO-EU-3000/400/GL, length: 3000mm, width: 400mm, function: cooling/drying via air flow. 9) Manual packaging station with ESD boxes, buttons and control elements, packaging type: box packaging. Documentation available. On-site inspection is possible.

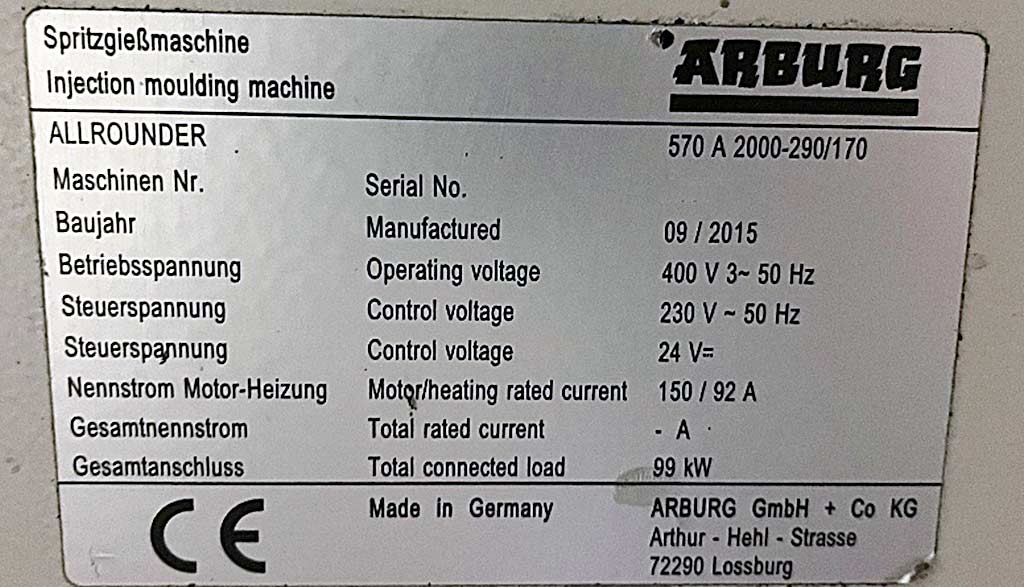

Make Arburg
Model Allrounder 570A 2000-290/170
Year of manufacture 2015
Price On application
Offer No INNO29399
