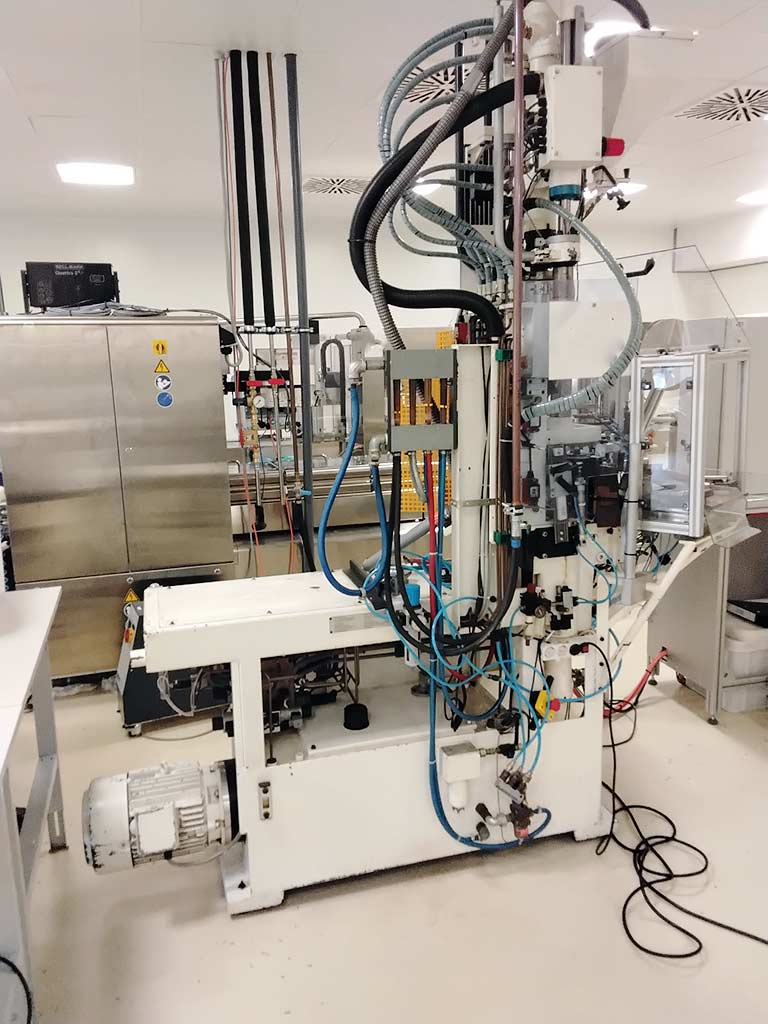

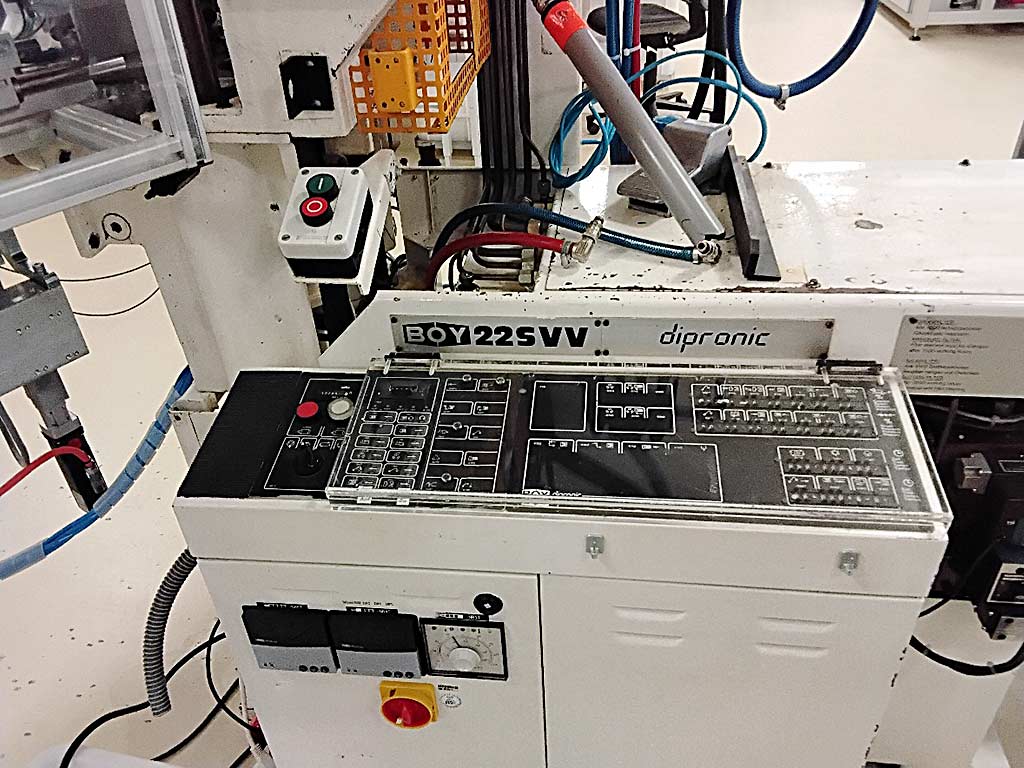

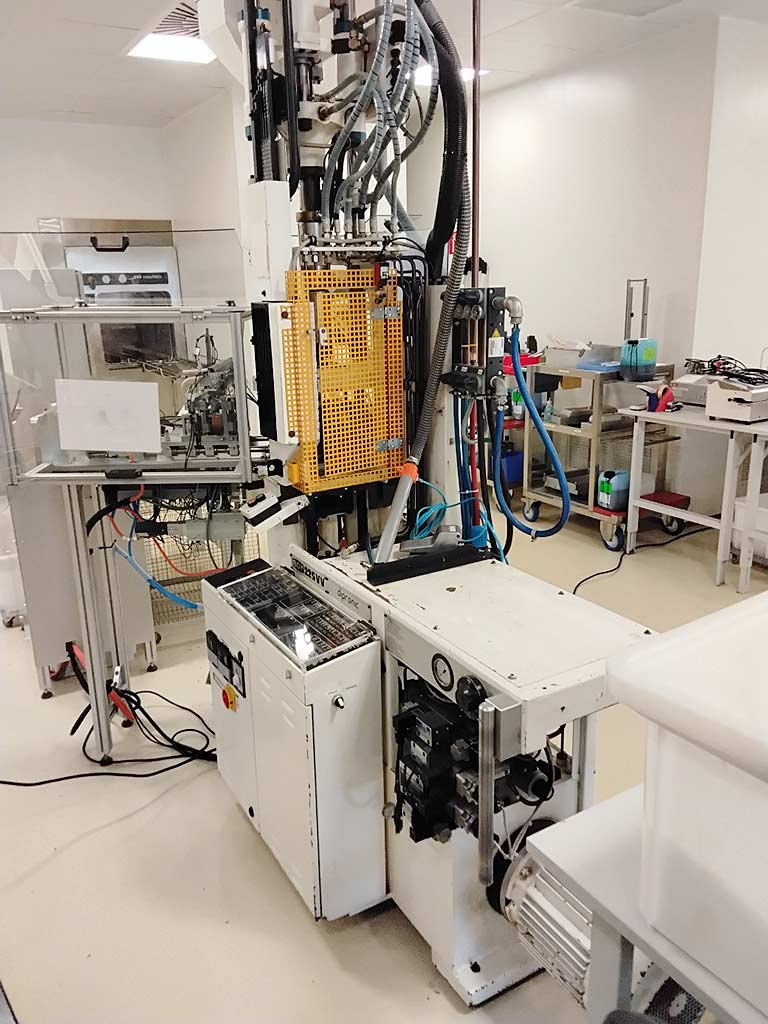

| Description A small Boy injection molding machine is available. Clamping force: 220kN, tie bar dimensions X/Y: 254mm/254mm, max. platen distance: 400mm, min. installation height: 200mm, opening stroke: 200mm, ejector stroke: 80mm. Screw diameter: 24mm, injection volume: 36cm³, injection weight: 32g, injection pressure: 1455bar. Machine dimensions X/Y/Z: 1800mm/1000mm/2600mm, weight: approx. 750kg, control: Dipronic. On-site inspection is possible. |
|
| Make | Boy |
|---|---|
| Model | 22 SVV dipronic |
| Year of manufacture | 1987 |
| Price | On application |
| Offer No | INNO29143 |
