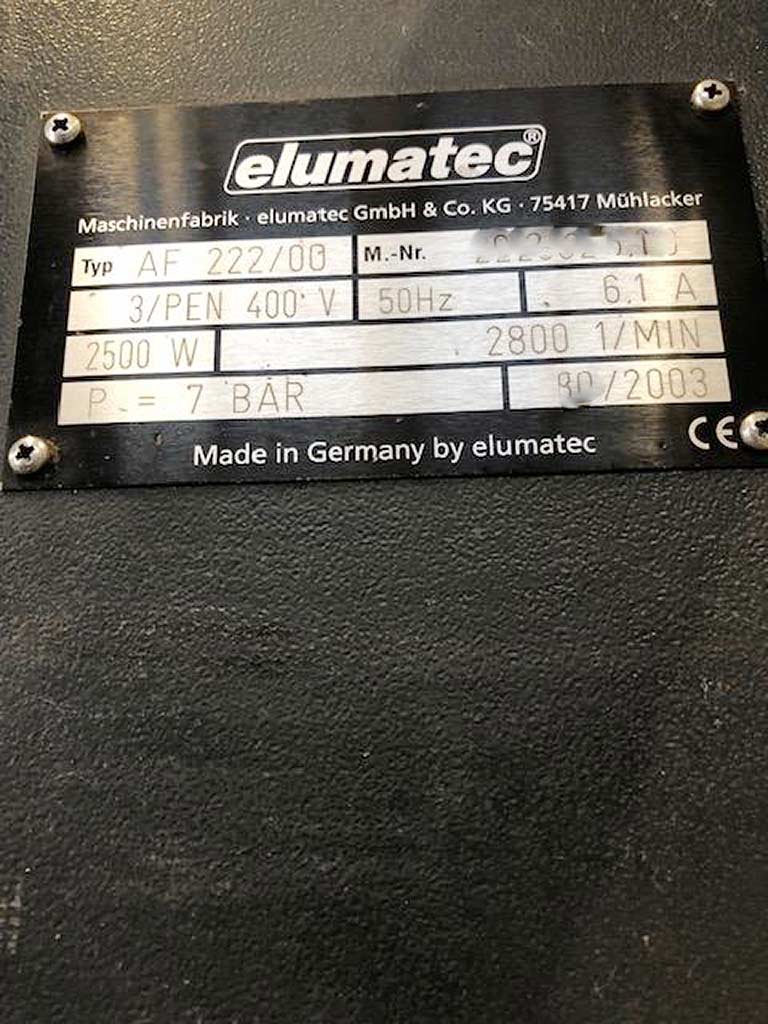

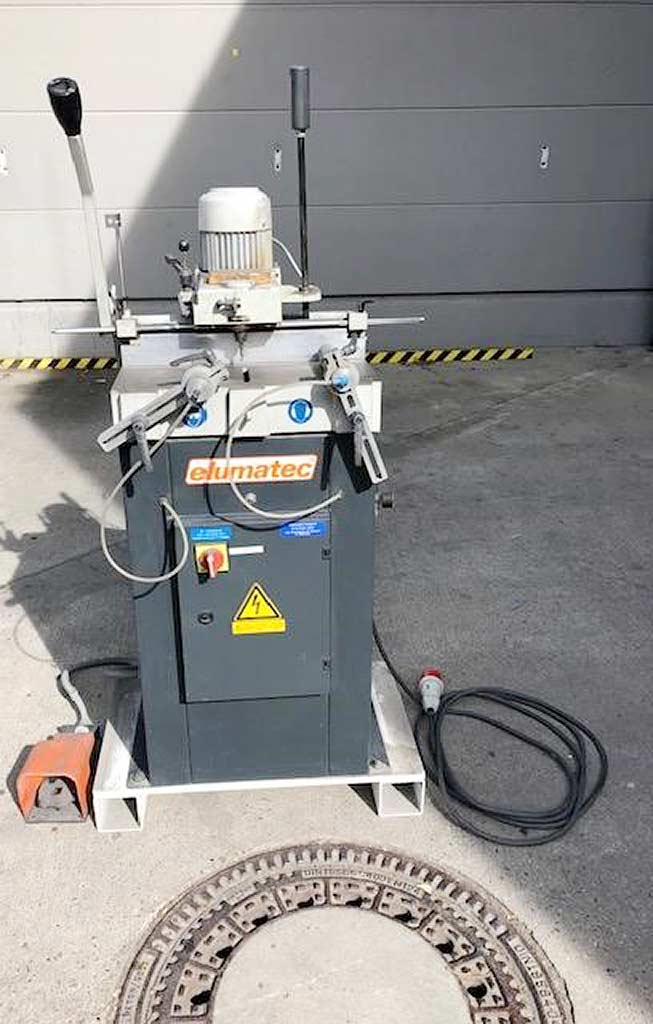

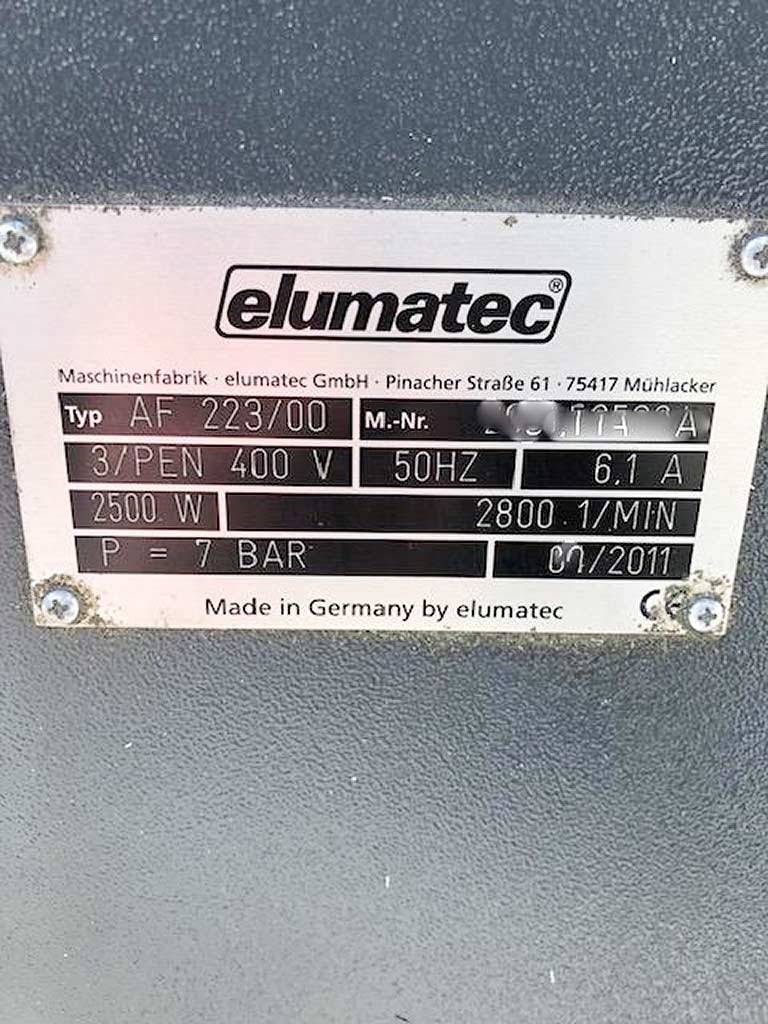

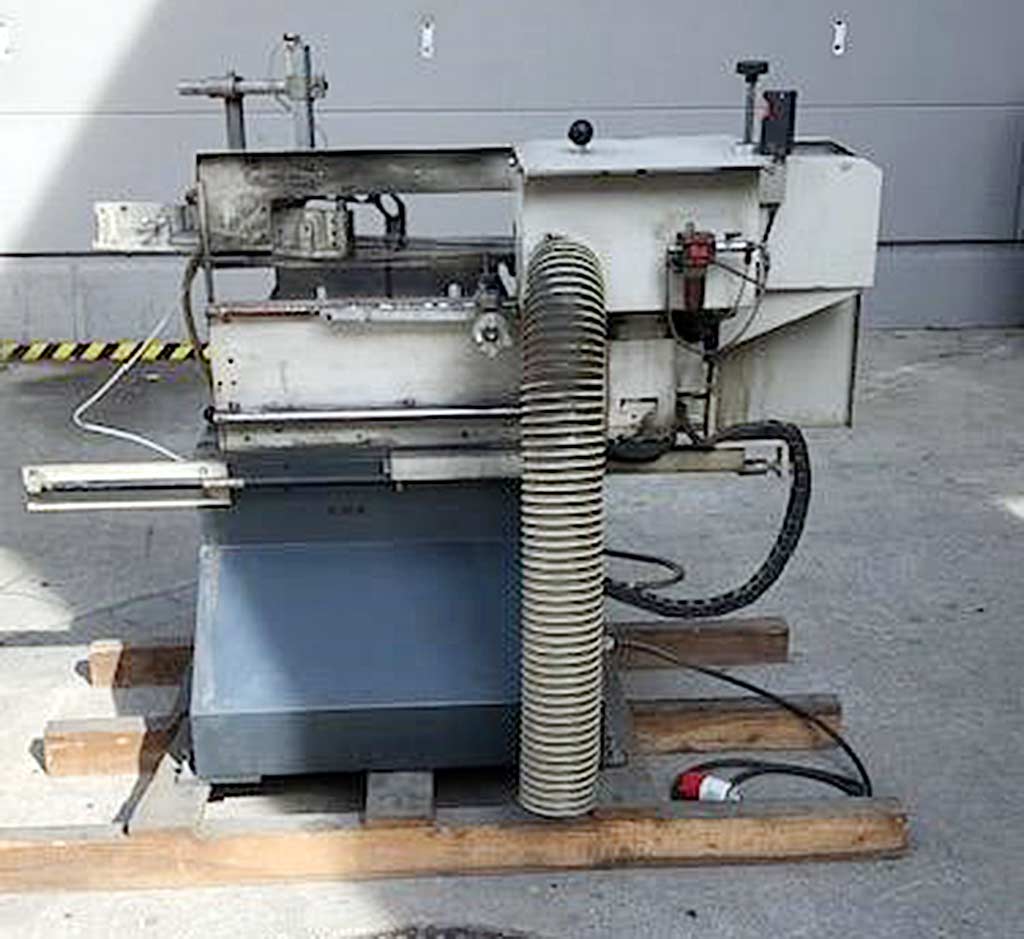

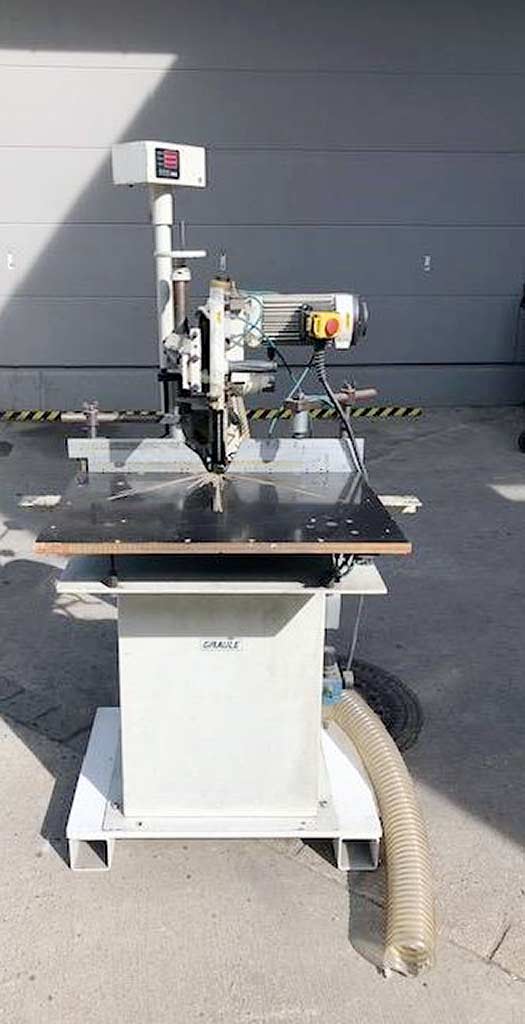

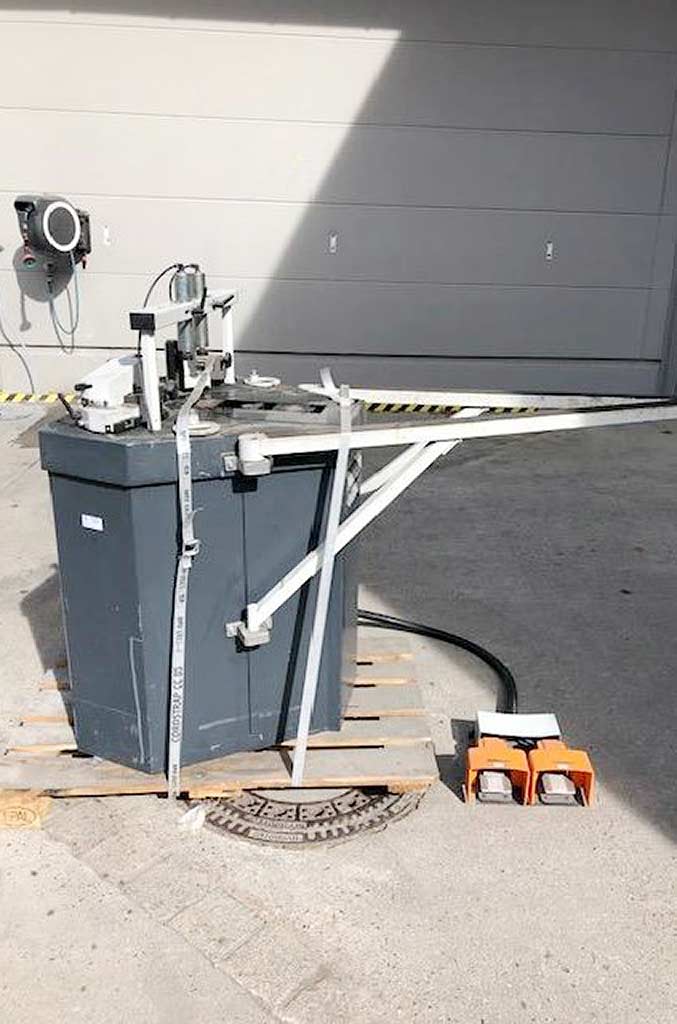

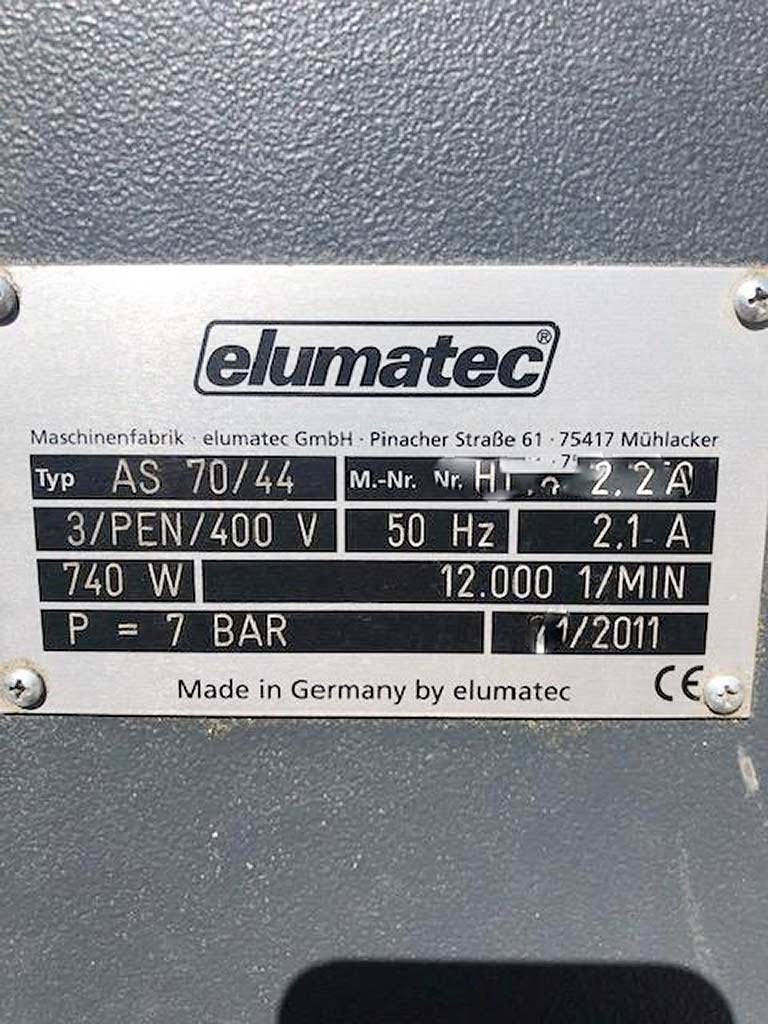

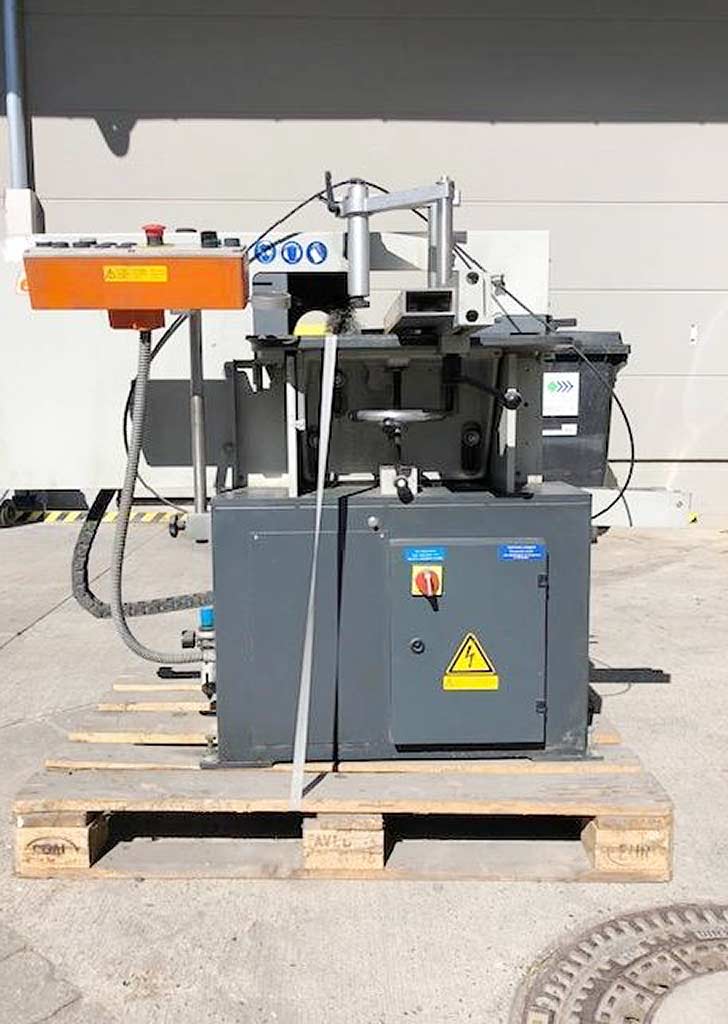

| Description A total of five metal and profile processing machines from various manufacturers are available. 1) End milling machine Elumatec AF, year of manufacture: 2003, max. milling range: 400mm, max. tool diameter: 280mm, milling cutter bore: 40mm, max. profile height: 165mm, max. milling height: 140mm, max. milling depth: 110mm, max. milling length: 400mm, speed: 2800/min, stroke: 550mm. Machine dimensions X/Y/Z: approx. 1550mm/900mm/1000mm, weight: approx. 250kg. 2) End milling machine Elumatec AF, year of manufacture: 2011, max. milling range: 400mm, max. tool diameter: 280mm, milling cutter bore: 40mm, max. profile height: 165mm, max. milling height: 140mm, max. milling depth: 110mm, max. milling length: 400mm, speed: 2800/min, stroke: 550mm. Machine dimensions X/Y/Z: approx. 1550mm/900mm/1000mm, weight: approx. 250kg. 3) Single-spindle copy router Elumatec AS, year of manufacture: 2011, travel X/Y/Z: 230mm/90mm/110mm, speed: 12000rpm, machine dimensions X/Y/Z: approx. 600mm/550mm/1300mm, weight: approx. 120kg. 4) Mitre circular saw Graule ZS 170N, year of manufacture: 1998, saw blade diameter: 420mm, saw blade bore: 40mm, saw blade speed: 3350rpm, dust extraction nozzle diameter: 95mm. Cutting width and height at 90°: 410mm/170mm, cutting width and height at 45°: 290mm/115mm. 5) Corner press Eisele Pressta 2000, year of manufacture: 2009, pressing force: 32kN, punching stroke: 17mm, max. installation height: 150mm, max. profile height: 210mm, operating pressure: 6bar, machine dimensions X/Y/Z: approx. 900mm/1200mm/750mm. Documentation available. On-site inspection is possible. |
|
| Make | Elumatec/graule/eisele |
|---|---|
| Model | AF/AS/ZS 170N/Pressta 2000 |
| Year of manufacture | 2009 |
| Price | On application |
| Offer No | INNO29139 |
