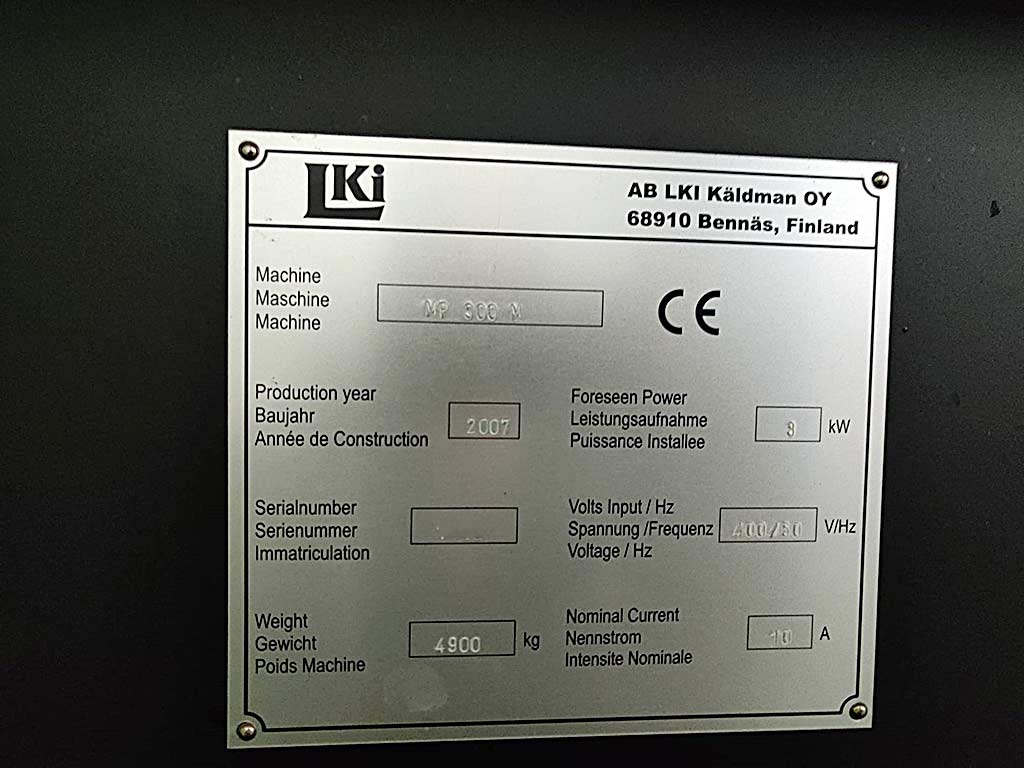

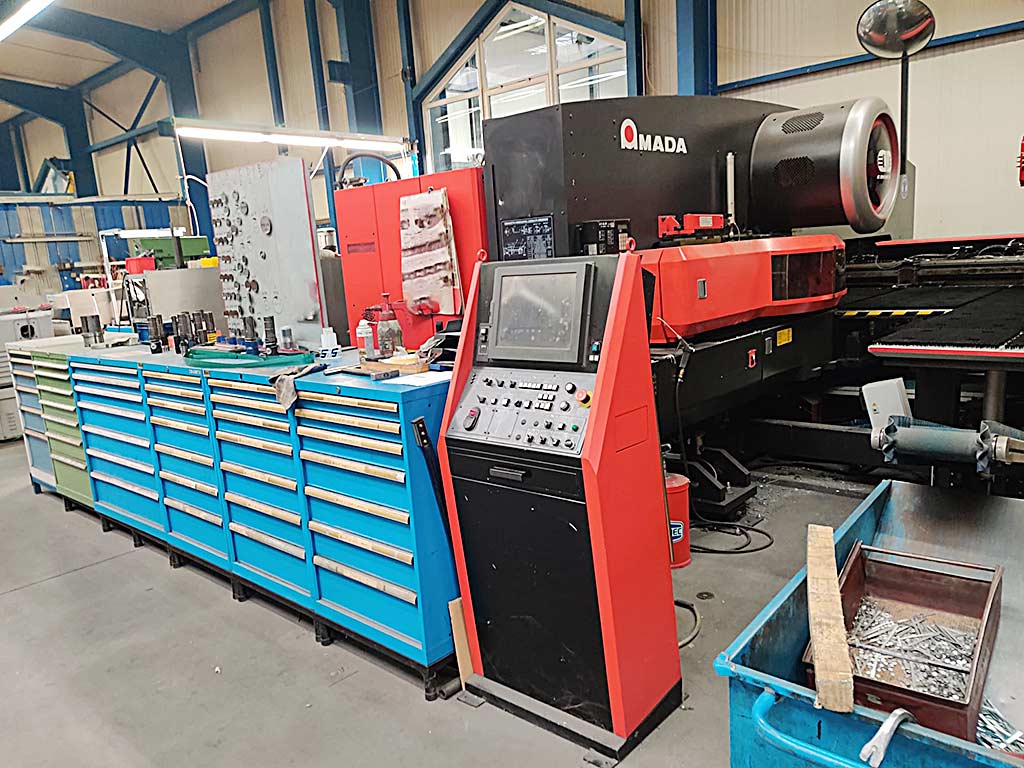

| Description An Amada CNC turret punching machine for medium format sheets including an MP300 M loading unit, Wilson X-Sharp grinding machine and numerous standard and special punching tools are available. 1) CNC turret punching machine Amada, year of manufacture: 2007, punching force: 300kN, max. sheet dimensions X/Y: 3000mm/1500mm, max. sheet thickness: 6.35mm, stroke rate: 600 strokes/min, simultaneous positioning speed: 128m/min, repeat accuracy: +/-0.1mm, machine dimensions X/Y/Z: approx. 5100mm/3200mm/2300mm, weight: approx. 18000kg. 2) Automatic sheet loading and unloading system Amada MP 300 M, max. sheet dimensions X/Y: 3000mm/1500mm, min. sheet dimensions X/Y: 1000mm/300mm, sheet thickness range: 0.8mm-6mm, max. load capacity per pallet: 3000kg, max. stacking height: 400mm, max. sheet weight: 170kg, max. pallets: 9, pallet change time: 25s, sheet loading time: 18s, weight: approx. 4900kg. 3) Wilson X-Sharp tool grinding machine. Documentation available. On-site inspection is possible. |
|
| Make | Amada |
|---|---|

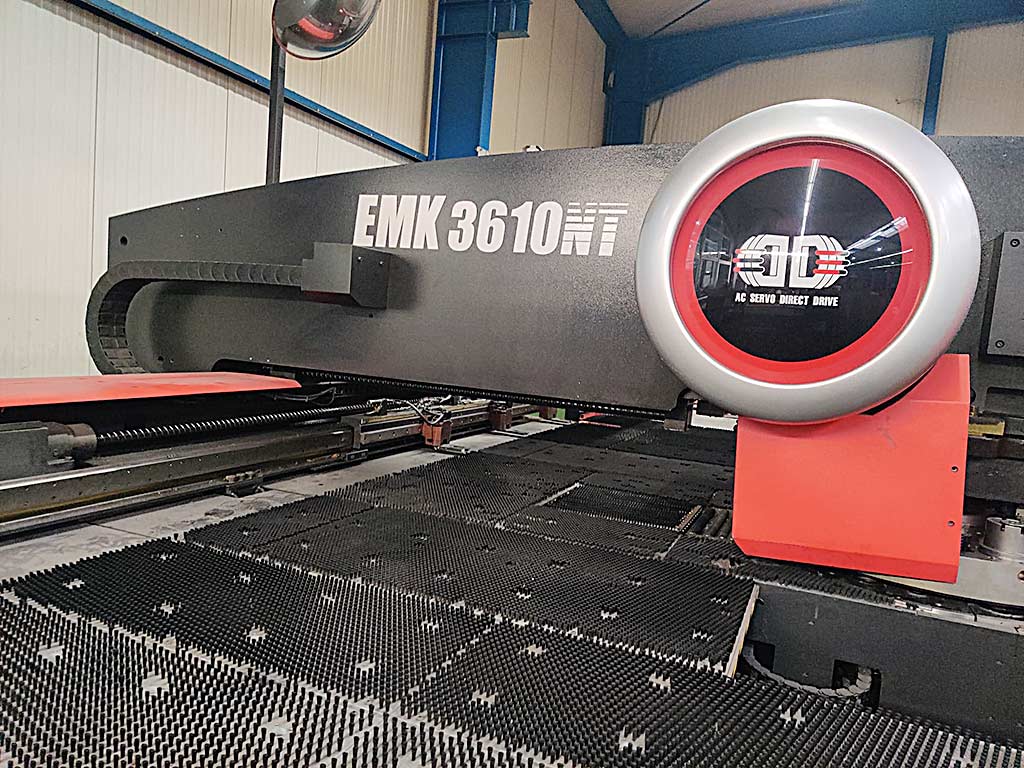

| Model | EMK 3610 NT/MP300 M |
| Year of manufacture | 2007 |
| Price | On application |
| Offer No | INNO29137 |
