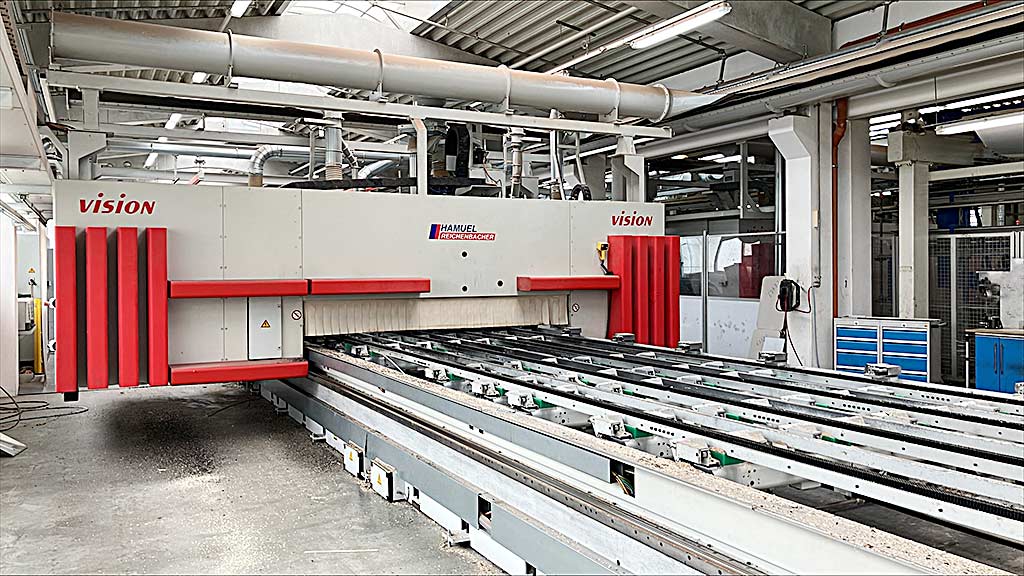

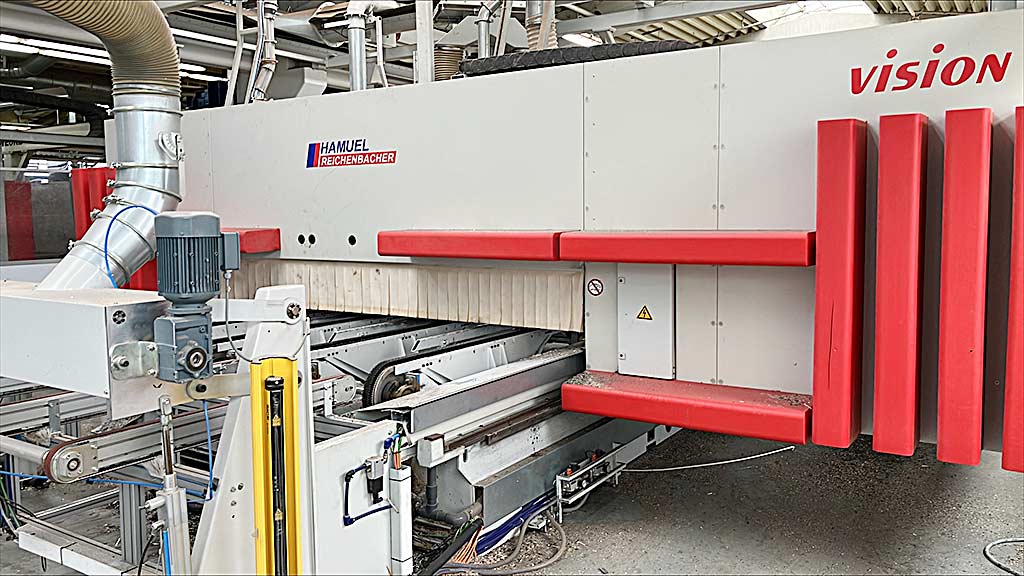

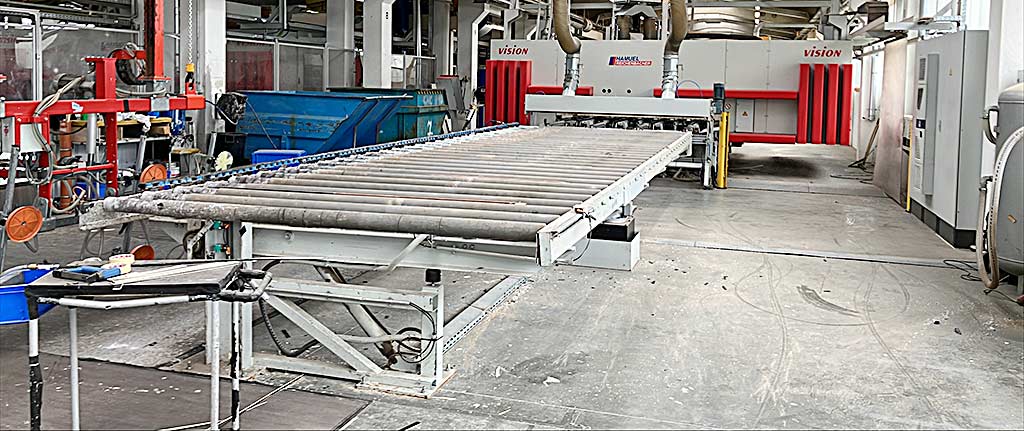

CNC Woodworking Center Hamuel Reichenbacher Vision III-TT-L-5-Achs
Offer No.  INNO29097
Description
A Reichenbacher CNC multi-spindle woodworking center with automatic support table and vacuum pins is available. Traverse path X1/X2: 8540mm, traverse path Y1: 2500mm, traverse path Z1: 480mm, swivel B: 180°, swivel C: 360°, X3 axis: underfloor drilling unit, U2-U10: carrier movement 1-9 (gantry), axis speed X/Y/Z: 60m/60m/20m/min, turning speed B/C: 90°/s, table dimensions X/Y: approx. 8500mm/2600mm, max. workpiece weight: 150kg, max. workpiece dimensions X/Y: 8500mm/2600mm, number of carriers: 9. Workpiece dimensions X/Y: 8500mm/2600mm, number of carriers: 9, suction plates per carrier: 8, suction plate diameter: 100mm, carrier positioning: +/-1000mm, min. carrier distance: 300mm, total number of vacuum pump pins: 72, vacuum pump pin stroke: 100mm, vacuum pump pin useful stroke: 25mm, tool positions: 24, max. tool weight: 6kg, max. tool length: 240mm, max. tool diameter: 300mm. Total system dimensions X/Y: approx. 14500mm/7800mm, control: Siemens Sinumerik 840D sl, NCU 720.3b, spindle hours: approx. 23899h. Documentation available. On-site inspection is possible.
Make Hamuel Reichenbacher
Model Vision III-TT-L-5-Achs
Year of manufacture 2017
Price On application
Offer No INNO29097
