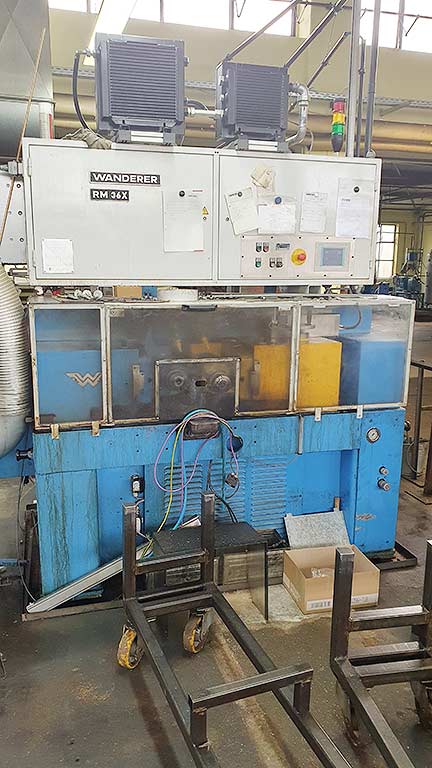

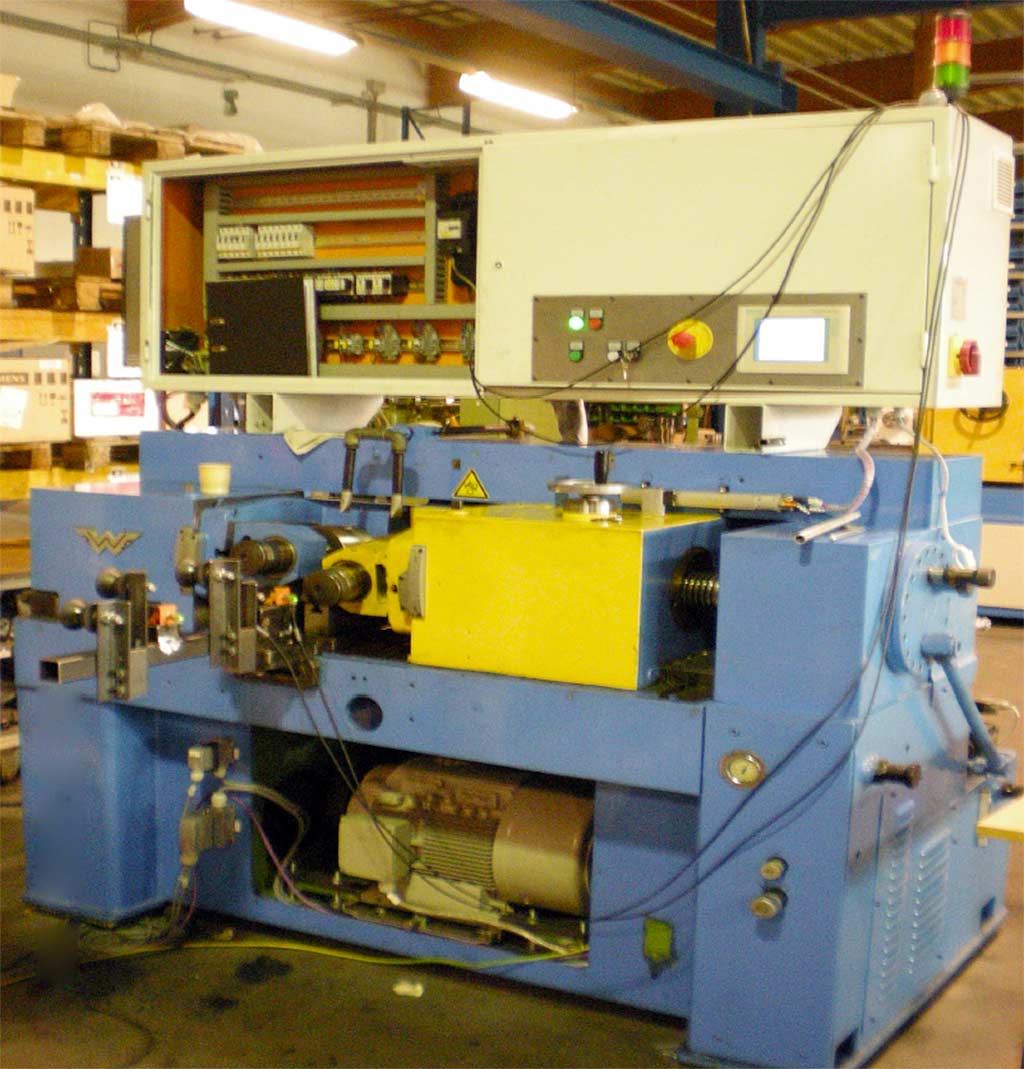

Thread Rolling Machine Pee-wee RM-36X
Offer No.  INNO25443
Feed infinitely variable: 0.5-6mm/s, max. rollable workpiece diameter: 110mm, rolling time infinitely variable: 0.1-99.9s, max. thread length in recess: 180mm, pause time infinitely variable: 0.1-99.9s, max. thread length in throughfeed: 5000mm, rolling spindle speed infinitely variable: 20-80/min, max. pitch of thread to be rolled: 6mm, diameter of rolling spindles: 69.85mm, max. pitch for serrations: 2mm, pitch for serrations: 2mm, mounting length of the rolling spindles: 180mm (up to 70kg/mm² strength of the material to be rolled), width of the feather key in the rolling spindle: 12.7mm, height of the feather key over the rolling spindle: 2.5mm, rolling spindle distance: 130-270mm, stroke of the rolling spindle carriage: 30mm, max. diameter of rolling tools: 218mm, swivel angle of rolling spindles: +/-10°, machine bed height: 850mm, rolling spindle height above machine bed: 200mm, height of support bearings: 110mm, length: 1940mm, width: 1150mm, height: 2170mm, weight: 4.4t.
Make Pee-wee
Model RM-36X
Year of manufacture 1986
Price On application
Offer No INNO25443
